Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm, Unmounted CX10313-A

Name: Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm, Unmounted CX10313-A
Brand: WaveQuanta
SKU: CX10313-A
Price: 42.76 SGD
Availability: InStock

CX10313-A

$42.76

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 12.7mm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

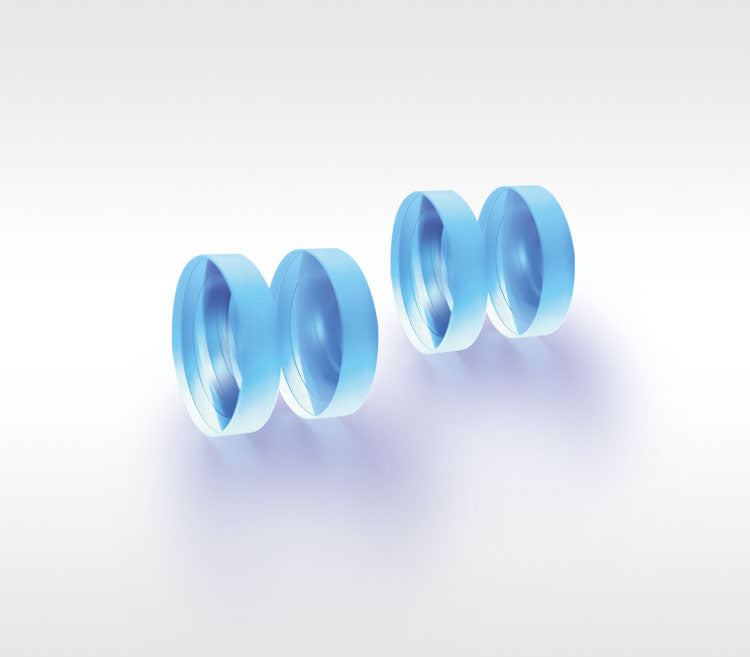

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm, Unmounted — Model CX10313-A

Operating wavelength 400 nm-700 nm, focal length 100.0 mm, Ø12.7 mm, substrate N-BK7.

Product Description

Substrate: N-BK7
Working Wavelength: 400 nm-700 nm
Application: Beam expansion, imaging, beam reduction

Plano-convex lenses, with one convex side and one flat side, have a positive focal length and are commonly used in applications such as beam reduction, focal length beam reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used to focus collimated beams so that the beam is incident on a curved surface. When used to collimate point light sources, the beam is incident on a flat surface. LBTEK offers lenses using N-BK7, a common substrate used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm, Unmounted

Substrate Material: N-BK7
Working Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Collimation, Beam Expansion

LBTEK unmounted lens is suitable for building compact systems.

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	0.0/-0.1 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	12.7 mm
Eccentricity	<3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

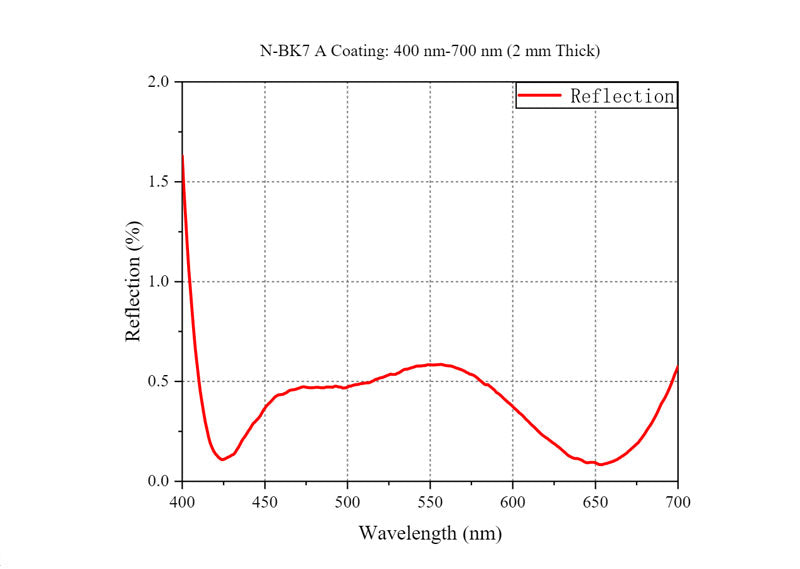

Curve - N-BK7 UN

Curve - N-BK7 A

Product Family: Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm (50 variants)
