Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm MCX10615-A

MCX10615-A
$60.98
In Stock
Key Specifications
Wavelength 400.0nm
Diameter 25.4mm
LIDT 0.19J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm — Model MCX10615-A

Operating wavelength 400 nm-700 nm, focal length 150.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

  • Substrate: N-BK7
  • Working Wavelength: 400 nm-700 nm
  • Application: Beam expansion, imaging, beam reduction

Plano-convex lenses, with one convex side and one flat side, have a positive focal length and are commonly used in applications such as beam reduction, focal length beam reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used to focus collimated beams so that the beam is incident on a curved surface. When used to collimate point light sources, the beam is incident on a flat surface. LBTEK offers lenses using N-BK7, a common substrate used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 400-700nm

  • Substrate Material: N-BK7
  • Working Wavelength: 400 nm – 700 nm
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing

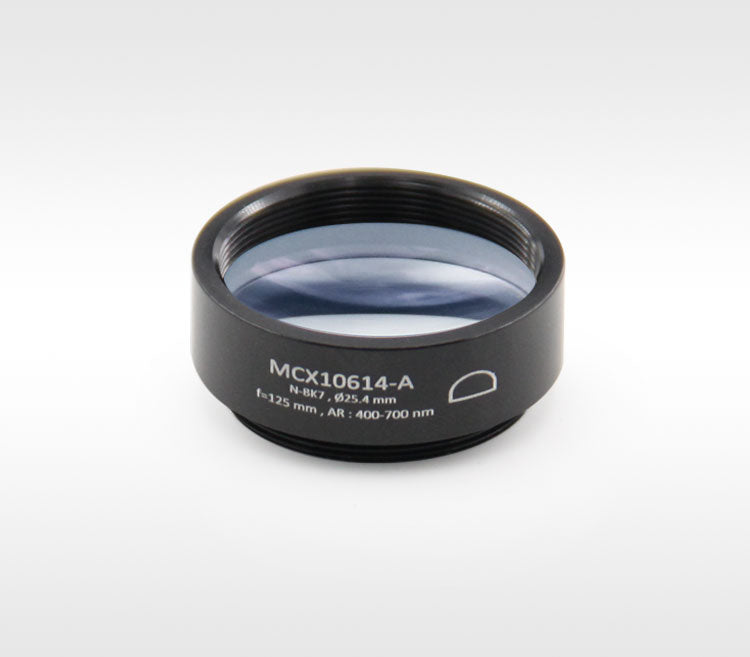

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK are mounted with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification by users.

Clear Aperture90% CA
Damage Threshold0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance+0.00/-0.10 mm
Clear Aperture90% CA
Operating Wavelength400 nm-700 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Damage Threshold0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - N-BK7 UN
Curve - N-BK7 UN

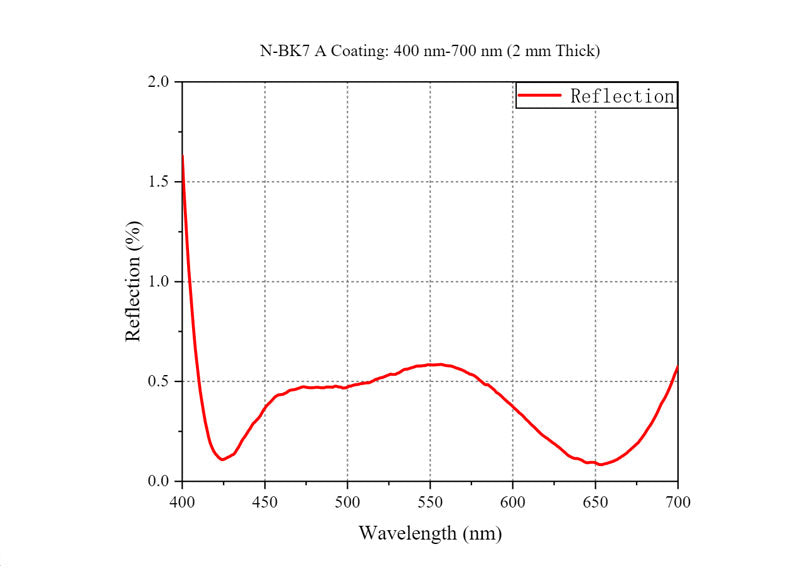

Curve - N-BK7 A
