Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted CX10812

CX10812
$47.97
In Stock
Key Specifications
Wavelength 350.0nm
Diameter 50.8mm
LIDT 4.5J/cm²
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted — Model CX10812

Operating wavelength 350 nm-2 µm, focal length 75.0 mm, Ø50.8 mm, substrate N-BK7.

Product Description

  • Substrate: N-BK7
  • Operating Wavelength: 350 nm-2 μm
  • Application: Beam expansion, imaging, beam reduction

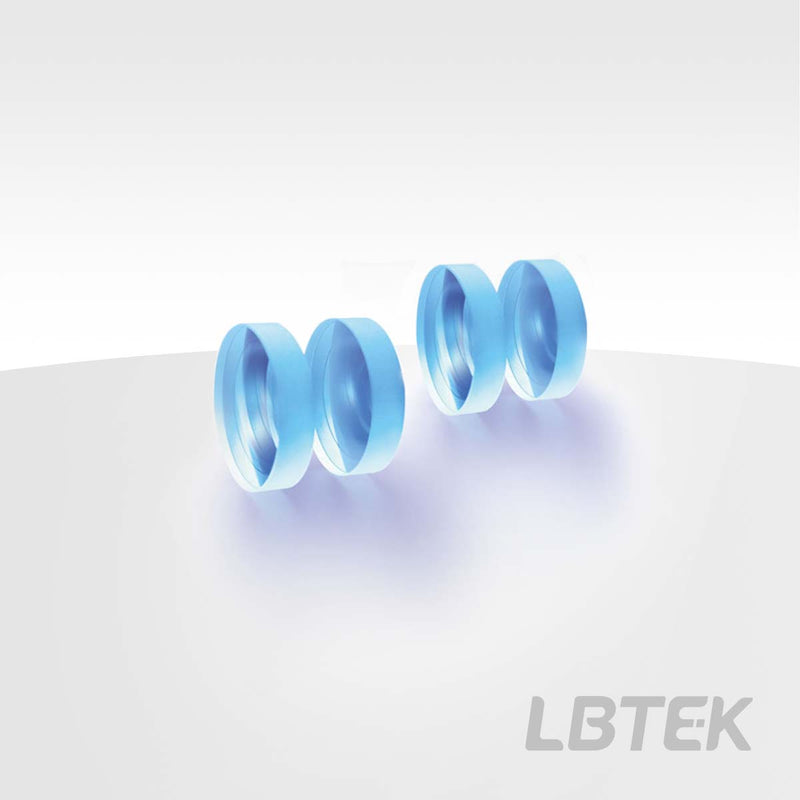

Plano-convex lenses, with one convex side and one flat side, have a positive focal length and are commonly used in applications such as beam reduction, focal length beam reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used to focus collimated beams so that the beam is incident on a curved surface. When used to collimate point light sources, the beam is incident on a flat surface. LBTEK offers lenses using N-BK7, a common substrate used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.

Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted

  • Substrate Material: N-BK7
  • Operating Wavelength: 350 nm-2.0 µm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses use N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

Clear Aperture90% CA
Damage Threshold4.5J/cm2@355nm, 17.1ns, 100Hz, Ø4.41μm (100 Pulses)0.21J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)
Diameter Tolerance+0.00/-0.10 mm
Clear Aperture90% CA
Operating Wavelength350 nm-2 µm
Diameter50.8 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Damage Threshold4.5J/cm2@355nm, 17.1ns, 100Hz, Ø4.41μm (100 Pulses)0.21J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)
Specification Sheet PDF — Download
3D Model (STL) STL — Download
Curve - N-BK7 UN
Curve - N-BK7 UN
