Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 245 nm-400 nm, Unmounted CX20610-UV

CX20610-UV
$156.94
In Stock
Key Specifications
Wavelength 245.0nm
Diameter 25.4mm
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 245 nm-400 nm, Unmounted — Model CX20610-UV

Operating wavelength 245 nm-400 nm, focal length 50.2 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • Substrate: UV Fused Silica
  • Working Wavelength: 245 nm-400 nm
  • Application: Imaging, beam expansion or reduction, convergence

LBTEK plano-convex lenses feature positive focal lengths and are commonly used in imaging and beam collimation applications. They are manufactured from RoHS-compliant UVFS glass and are primarily used in the UV and near-infrared regions. All LBTEK circular lenses come pre-mounted in standard lens tubes or lens mounting adapters. These mechanical components are engraved with the model number, type, diameter, and focal length, allowing users to quickly identify lens specifications.

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 245 nm-400 nm, Unmounted

  • Substrate Material: UVFS
  • Working Wavelength: 250 nm-400 nm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses are made of UV fused silica glass, offering improved homogeneity and a lower thermal expansion coefficient than N-BK7 glass. They are primarily used in the UV and near-infrared regions. LBTEK plano-convex lenses have a positive focal length and are commonly used in imaging or beam collimation applications. LBTEK unmounted lenses can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates, allowing customers to select the optimal mounting method for their specific application.

Clear Aperture90% CA
Operating Wavelength245 nm-400 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Specification Sheet PDF — Download
3D Model (STL) STL — Download

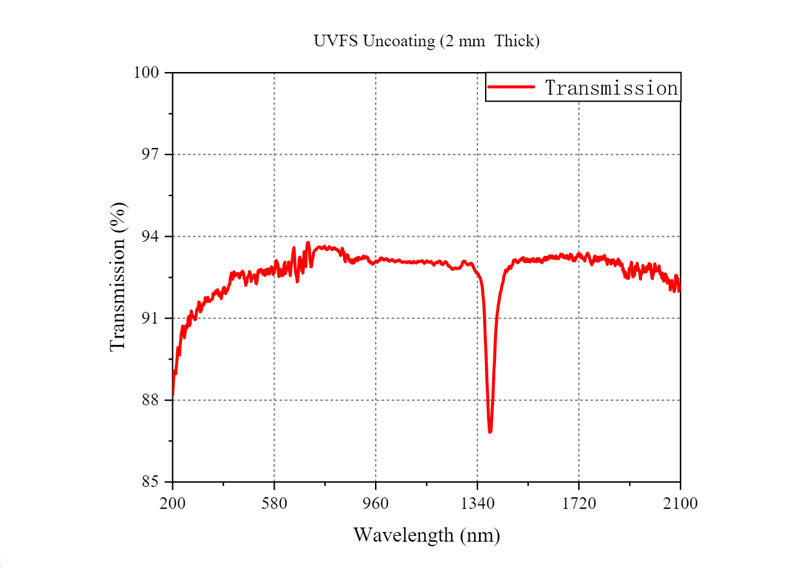

Curve - UVFS UN
Curve - UVFS UN

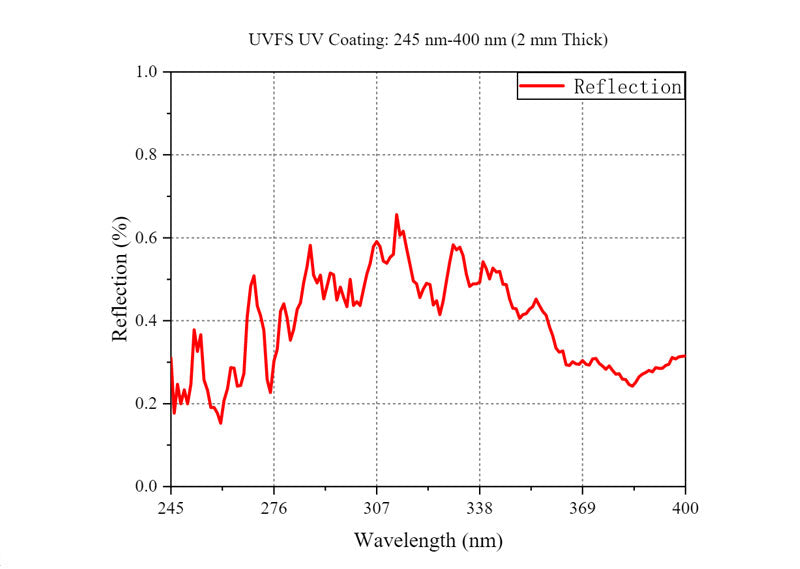

Curve - UVFS UV
Curve - UVFS UV
