Polarizing Plate Beamsplitter PBSF-24-808
PBSF-24-808$781.18
In Stock
Key Specifications
Wavelength
808.0nm
Design Tools
View all 49 calculators →RoHS
REACH
Polarizing Plate Beamsplitter — Square (Laser Line) — Model PBSF-24-808
Operating wavelength 808 nm; extinction ratio Tp:Ts>10000:1, 45°AOI.
Overview
Polarizing plate beamsplitter for separating the p- and s-polarization components of incident light. Optimized for 45° angle of incidence with an extinction ratio Tp:Ts > 10000:1. The rear surface carries a wedge design to suppress ghost reflections.
Key Features
- Transmits p-polarized light, reflects s-polarized light
- Dual-side narrowband polarizing splitter coating, 45° AOI extinction ratio Tp:Ts > 10000:1
- Rear-surface 30 arcmin wedge design to reduce ghosting
Applications
- Polarization analysis and conditioning in laser systems
- Interferometry and beam splitting
- Optical isolation paths and polarization filtering
| Optical component material | UVFS |
| Diameter | 25.4 mm |
| Diameter tolerance | +0.0/-0.1 mm |
| Clear Aperture | 90%CA |
| Thickness | 5.0 mm |
| Thickness tolerance | ±0.1 mm |
| Operating Wavelength | 808 nm |
| Surface finish (scratches/pits) | 40/20 |
| Transmitted Wavefront Error (TWE) (@633 nm) | λ/8 |
| Beam deviation | ±10 arcmin |
| Wedge angle | 30 arcmin |
| Extinction ratio (Tp:Ts) | Tp:Ts>10000:1, 45°AOI |
| Ghost separation | <0.3 mm, 45° |
| Surface Flatness (@633 nm) | λ/4 |
| Transmittance / Reflectance | Tp>93%, Ts<0.5%a@808 nm , 45°AOI |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

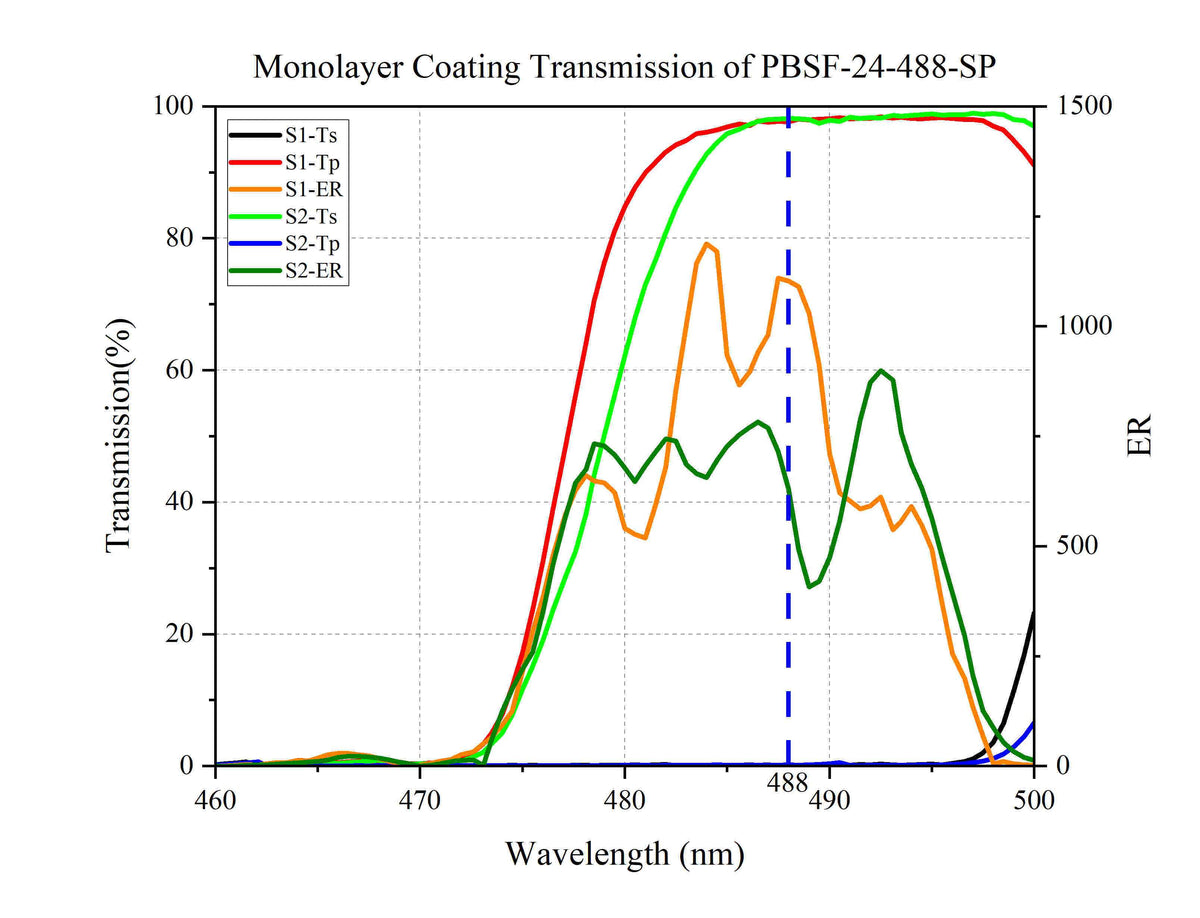

Curve - Monolayer Coating Transmission of PBSF-24-488-SP

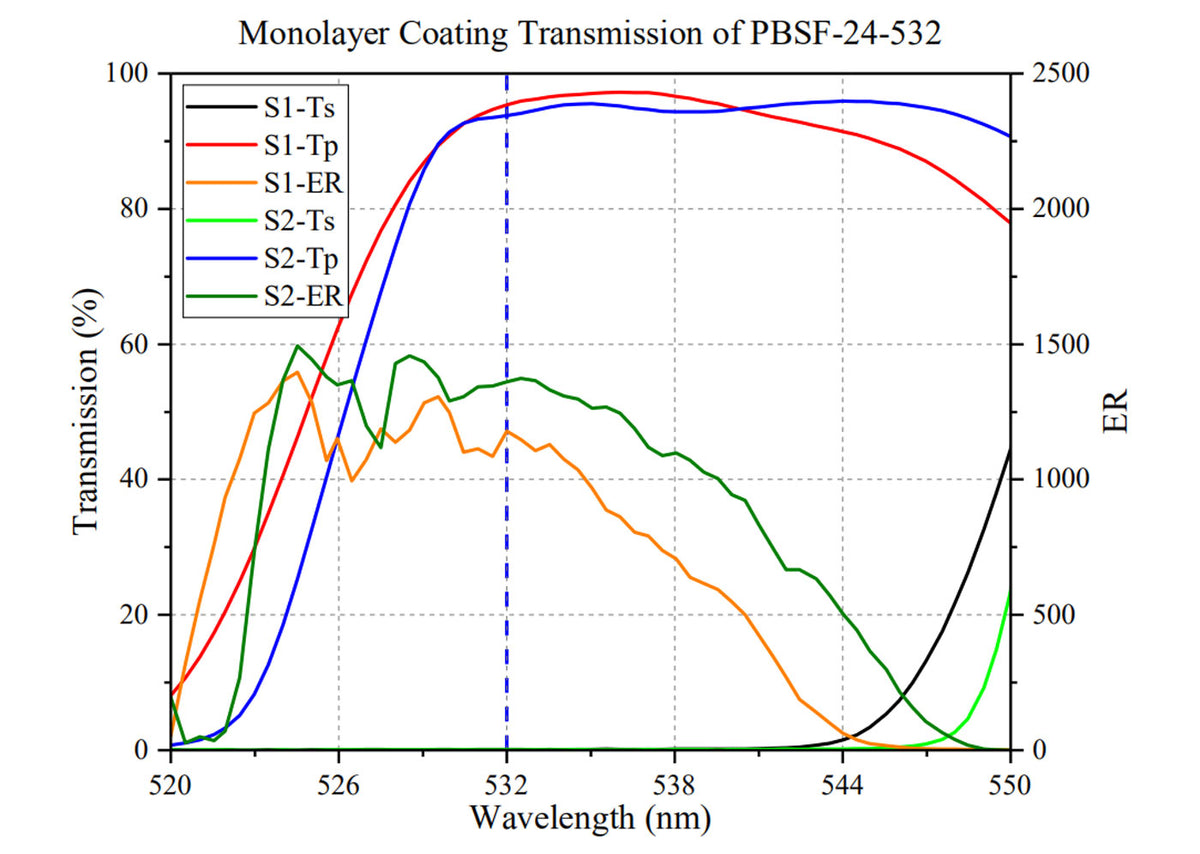

Curve 2

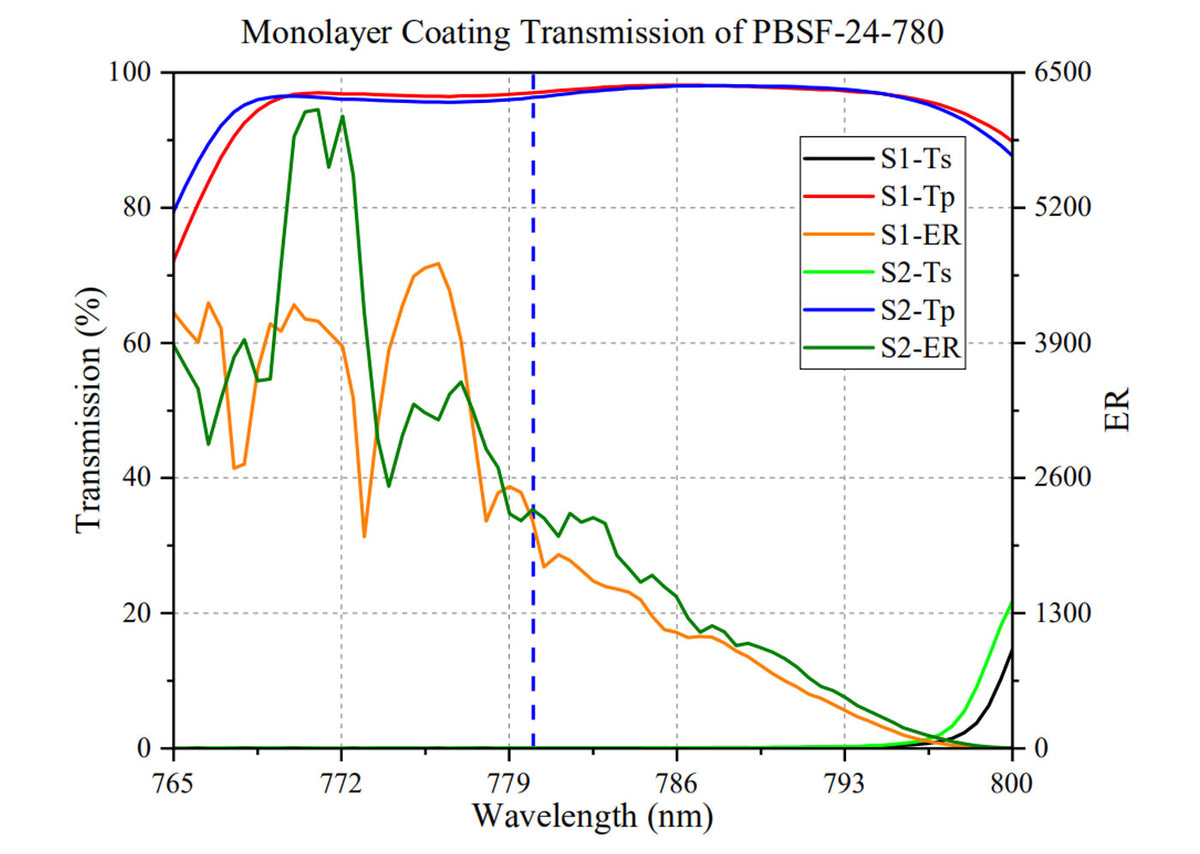

Curve 3

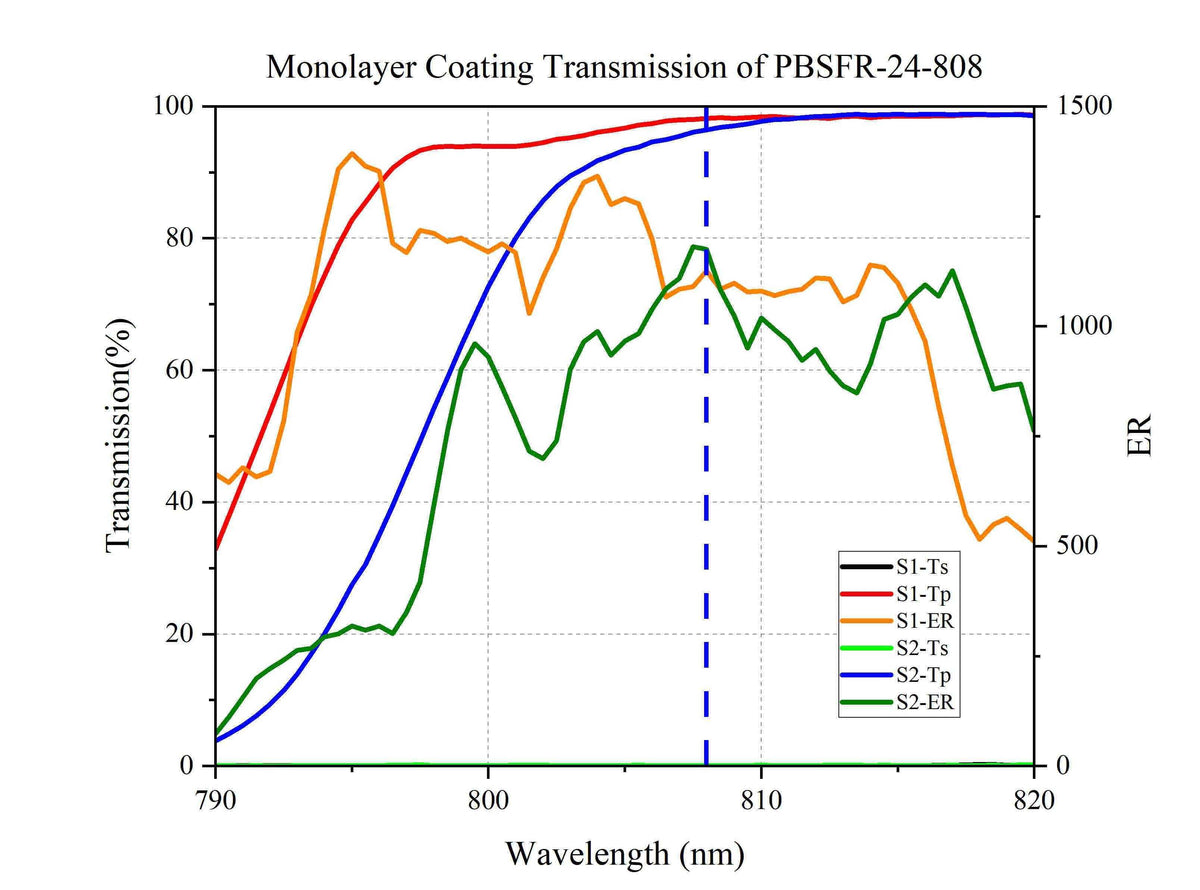

Curve - Monolayer Coating Transmission of PBSFR-24-808

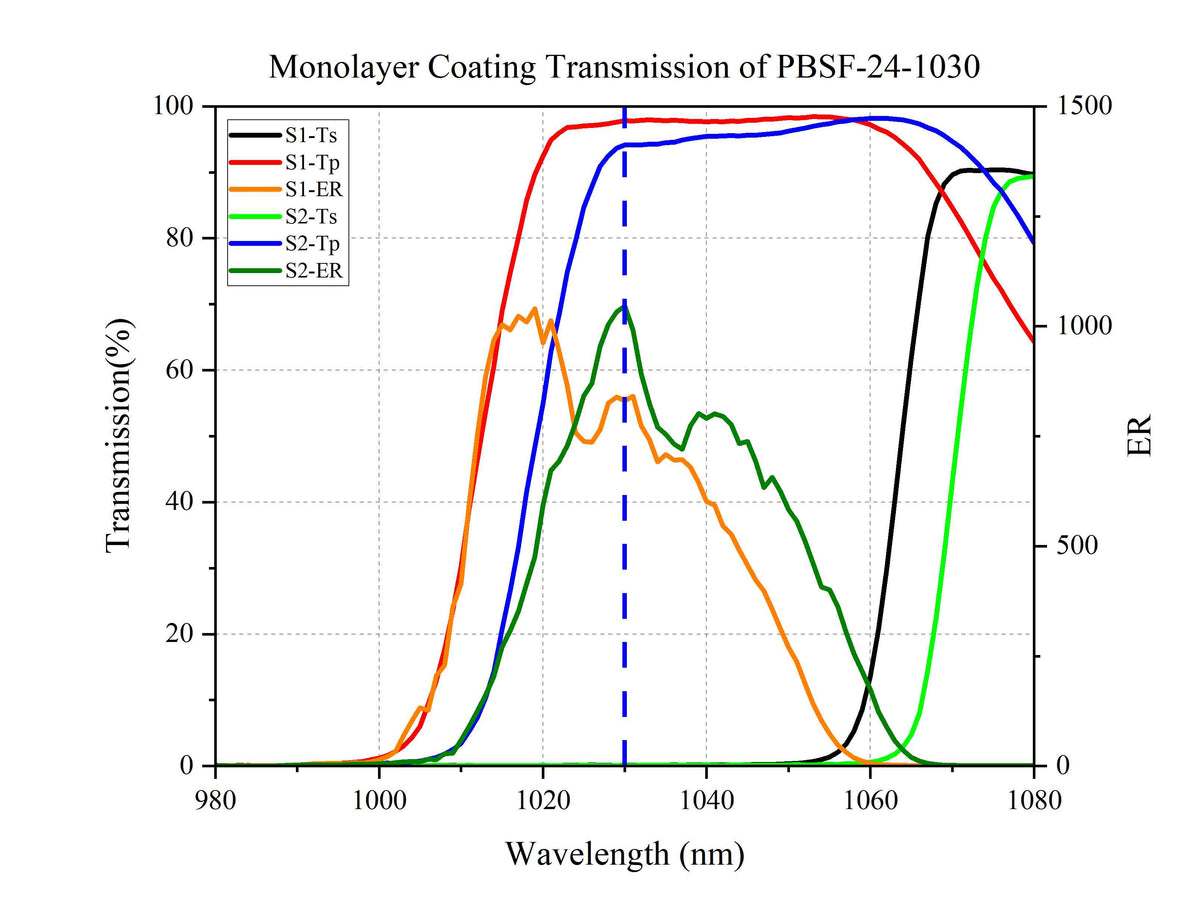

Curve - Monolayer Coating Transmission of PBSF-24-1030

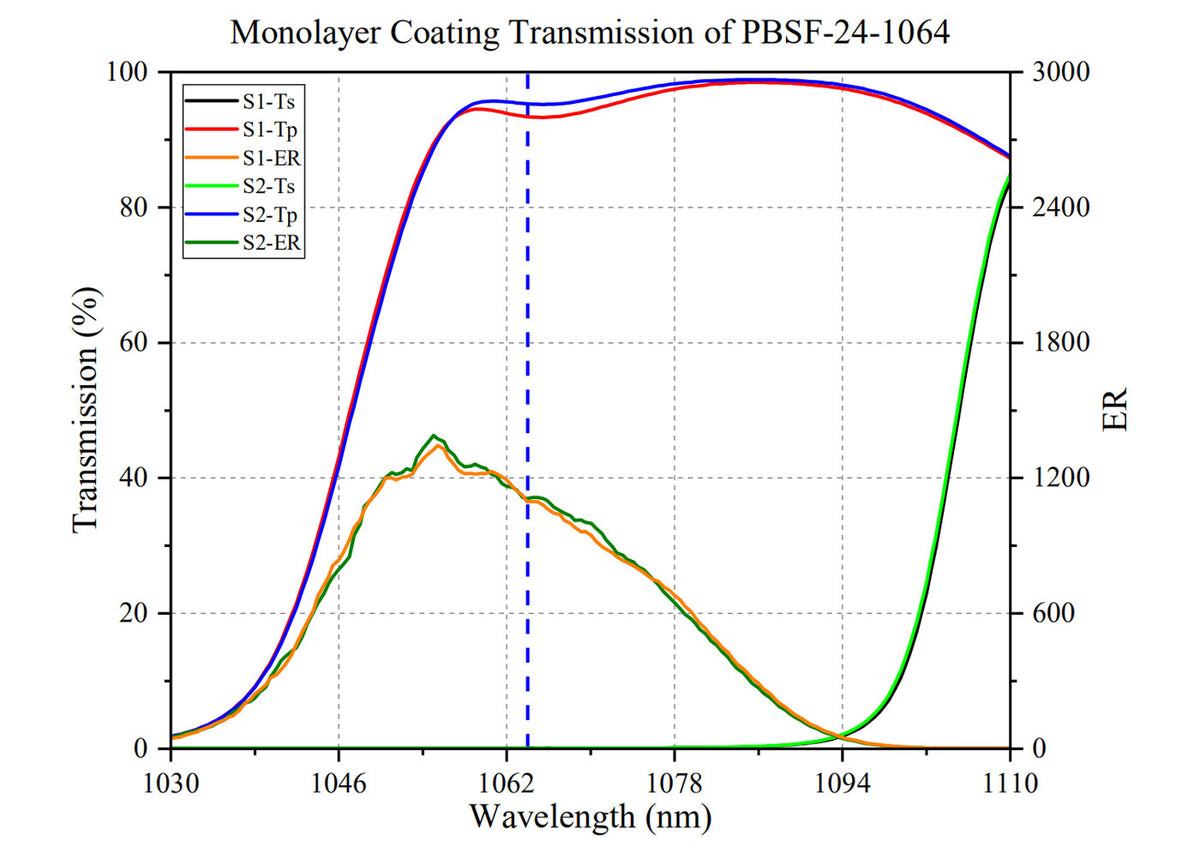

Curve 6

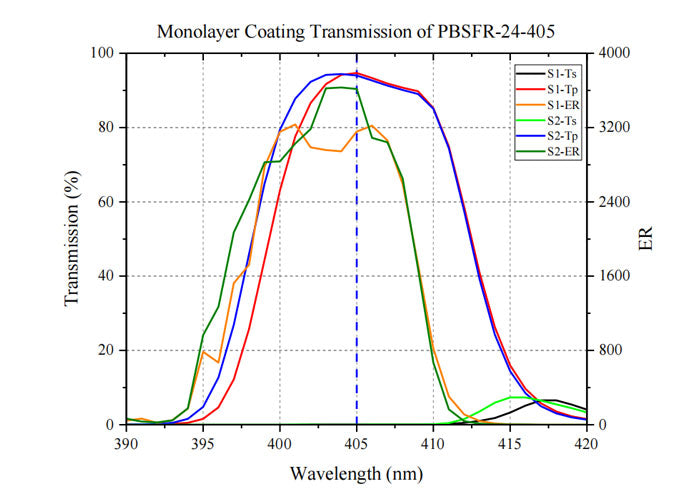

Curve 7

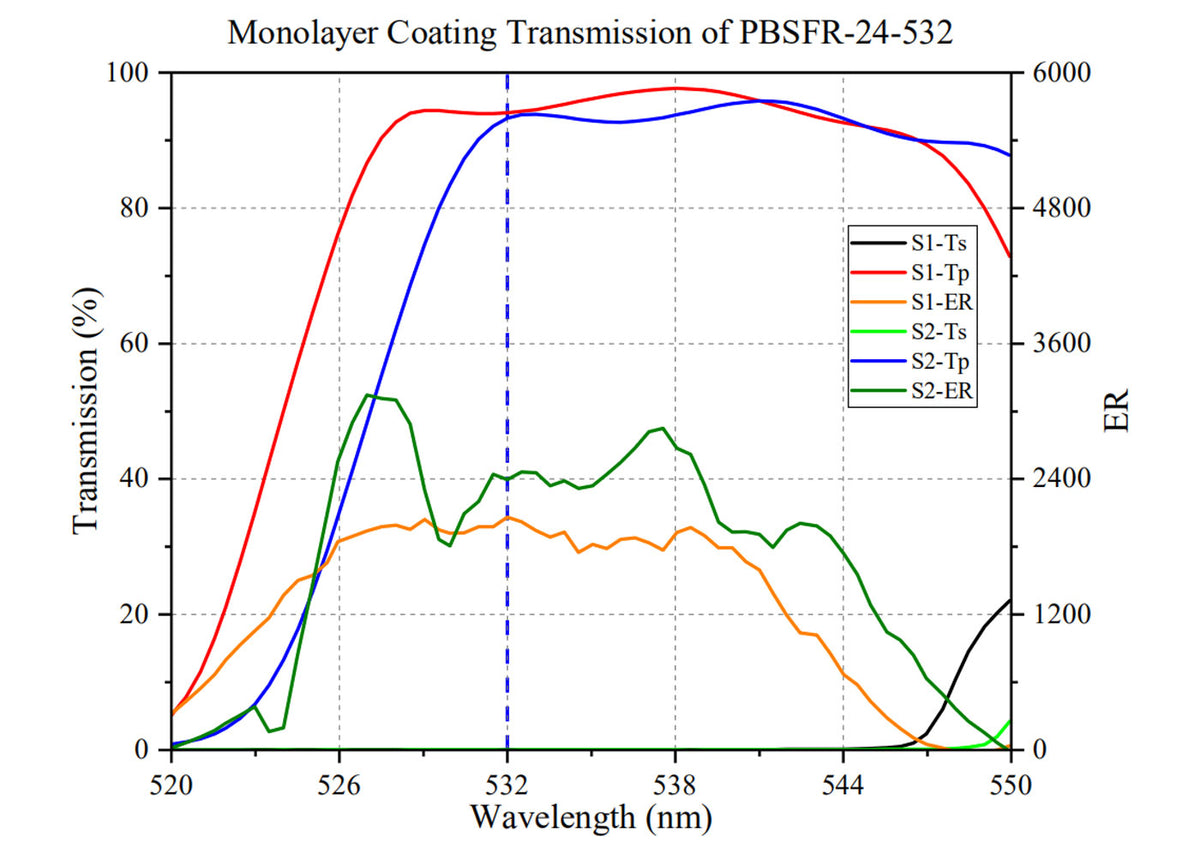

Curve 8

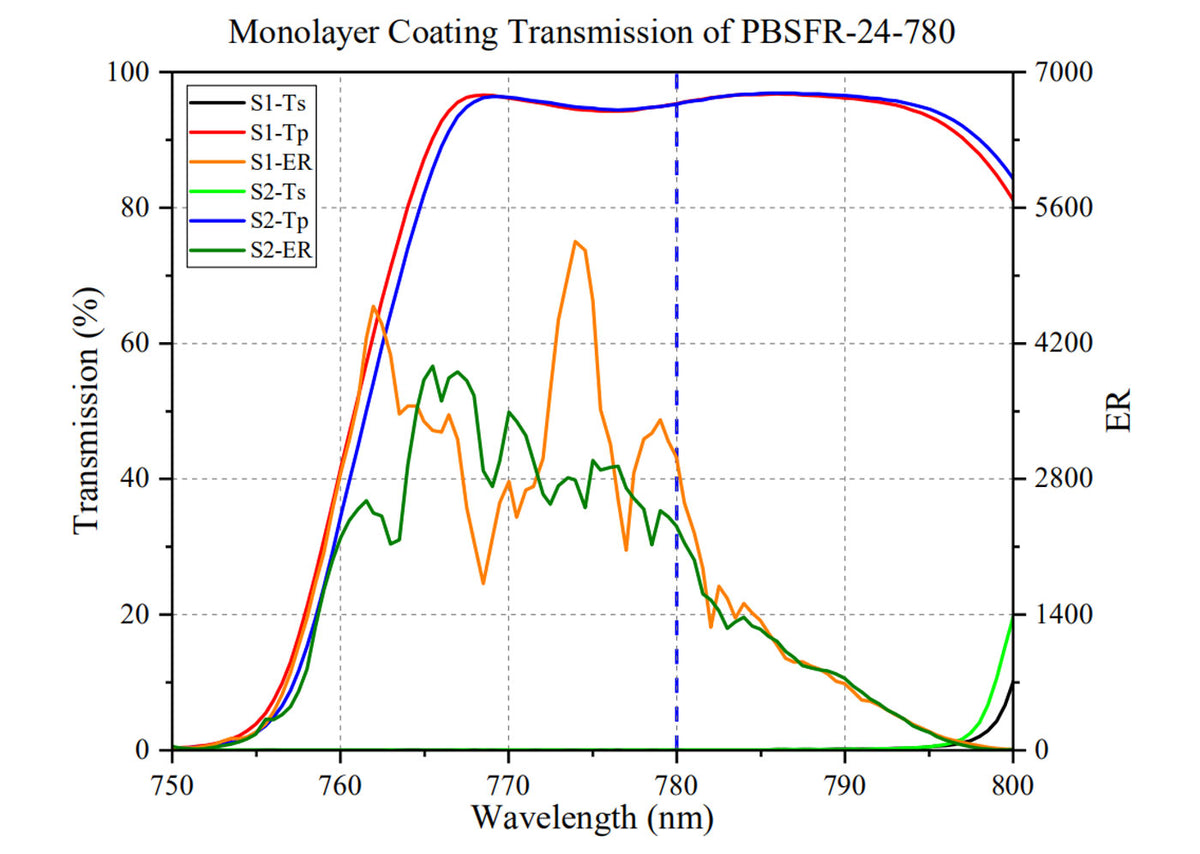

Curve 9

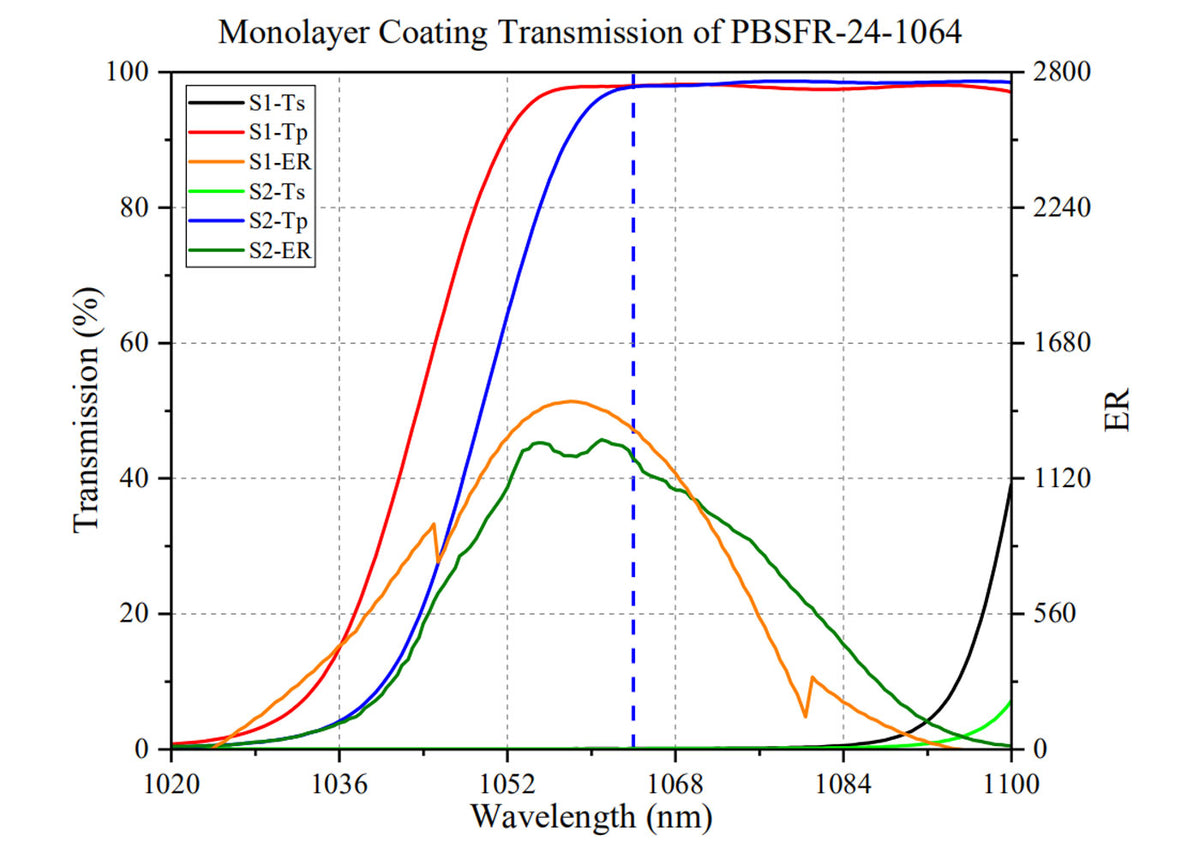

Curve 10

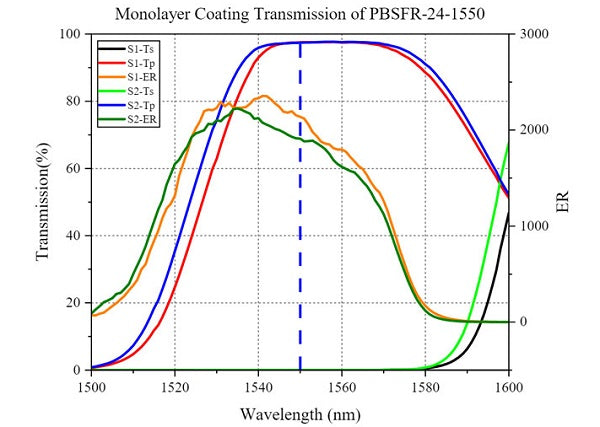

Curve - PBSFR-24-1550
