Polymer Circular Polarizer RCP25-532-CRM

Polymer Circular Polarizer — Model RCP25-532-CRM

Polymer Waveplate/Thin Film Linear Polarizer, operating wavelength 532 nm, clear aperture Ø20 mm, ellipticity angle ≥43.5°.

Overview

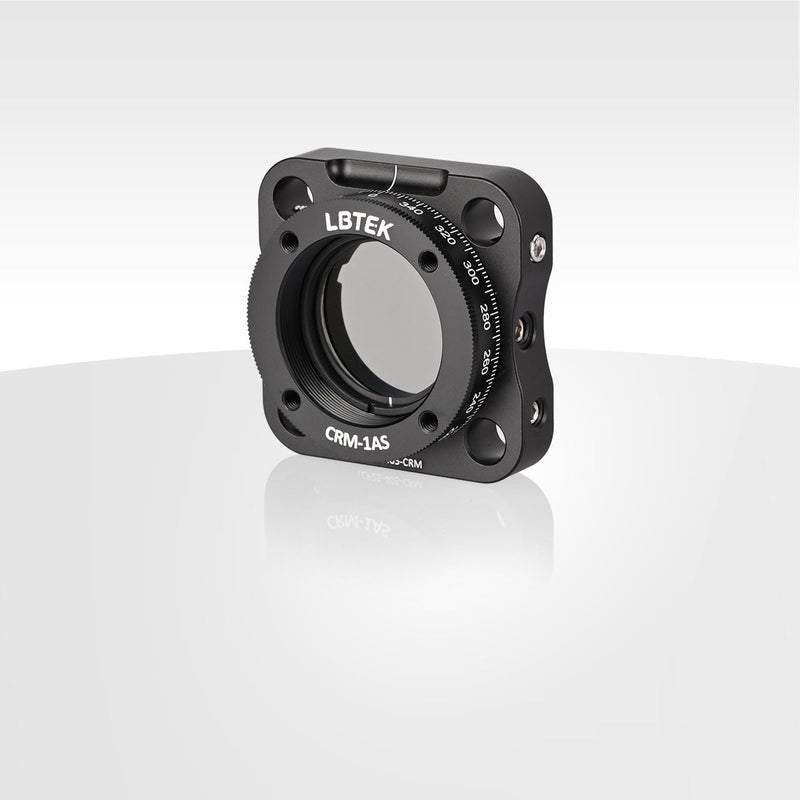

Polymer circular polarizers convert light of any polarization state within the working wavelength into left-handed or right-handed circularly polarized light, and can also convert left-handed or right-handed circularly polarized light into linearly polarized light. Compared with economical thin-film circular polarizers, polymer circular polarizers achieve higher ellipticity requirements (≥43.5°). This model is mounted in a rotation mount, with the transmission axis of the linear polarizing film aligned with the 0° marking. When the beam is incident from the side with the marking, the output light is circularly polarized; when incident from the opposite direction, the output is linearly polarized.

Key Features

• Operating Wavelength: 532 nm
• Clear Aperture: Ø20 mm
• Ellipticity Angle: ≥43.5°
• Transmittance (@working wavelength): >85%
• Optical component material: Polymer Waveplate/Thin Film Linear Polarizer
• Polarization state: right-handed circularly polarized light
• Transmission axis accuracy: ±1°
• Anti-reflective coating: Ravg <0.5% @ 400-700 nm (0° AOI, single-side coating indicator)
• Surface finish (scratches/pits): 60/40
• Mechanical housing model: CRM-1AS
