Polymer Homogenization DOEs DOE25-1064-7-FTS30
DOE25-1064-7-FTS30$1,300.22
In Stock· Ships in 4.0 weeks
Key Specifications
Wavelength
1064.0nm
Reflectance
0.5%
Transmittance
700.0%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

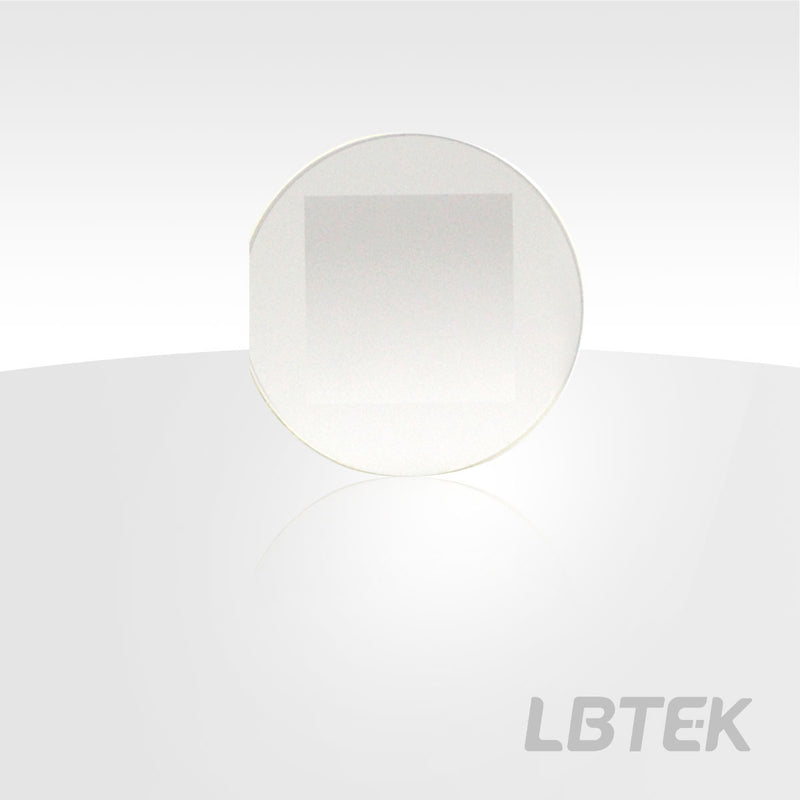

The LBTek Polymer Homogenizing DOE is a flat optical component built on diffractive optics principles. It combines a liquid crystal polymer film with N-BK7 or UVFS window substrates. The design uses point-to-point mapping calculations based on incident light characteristics, focal length, and desired output specifications to introduce a geometric phase distribution that transforms Gaussian incident light into shaped, homogenized beams.
Compared to traditional refractive homogenizers, the polymer DOE offers flat structure for easier integration and higher energy efficiency. Standard products generate square flat-top, circular flat-top, or line-shaped flat-top beams with high diffraction efficiency (>90%), high uniformity (<10% RMS), and sharp edges.
Key Features
- Liquid crystal polymer / N-BK7 or UVFS window plate sandwich flat-plate structure
- Generates square, circular, or line-shaped flat-top beams
- High diffraction efficiency (>90%), high uniformity, sharp edges
- Customizable shape and size parameters
- Operating wavelengths: 532 nm and 1064 nm
- Standard focal length: 100 mm (customizable)
| Component Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Incident spot diameter | 7 mm |
| Component size | Ø25.4×3.2 mm |
| Incident beam quality | M2<1.3 |
| Operating Wavelength | 1064 nm |
| Incident light spot polarization state | Uniform polarization state |
| Clear Aperture | 15×15 mm |
| Incident light eccentricity (XY displacement) | ±0.3 mm (±5% of input beam diameter) |
| Surface finish | 60/40 |
| Incident light tilt | ±5 ° |
| AR Coating | 700-1100 nm |
| Output beam shape | Square |
| AR Coating Reflectance | Ravg < 0.5% (0° angle of incidence) |
| Output beam spot size | 30.3×30.3 μm |
| Diffraction Efficiency | >98 % |
| Focal Spot Size | 8.9 μm |
| Diffraction efficiency (FWHM) | >90 % |
| Effective Focal Length (EFL) | 100 mm |
| Unevenness (RMS) | <10 % |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

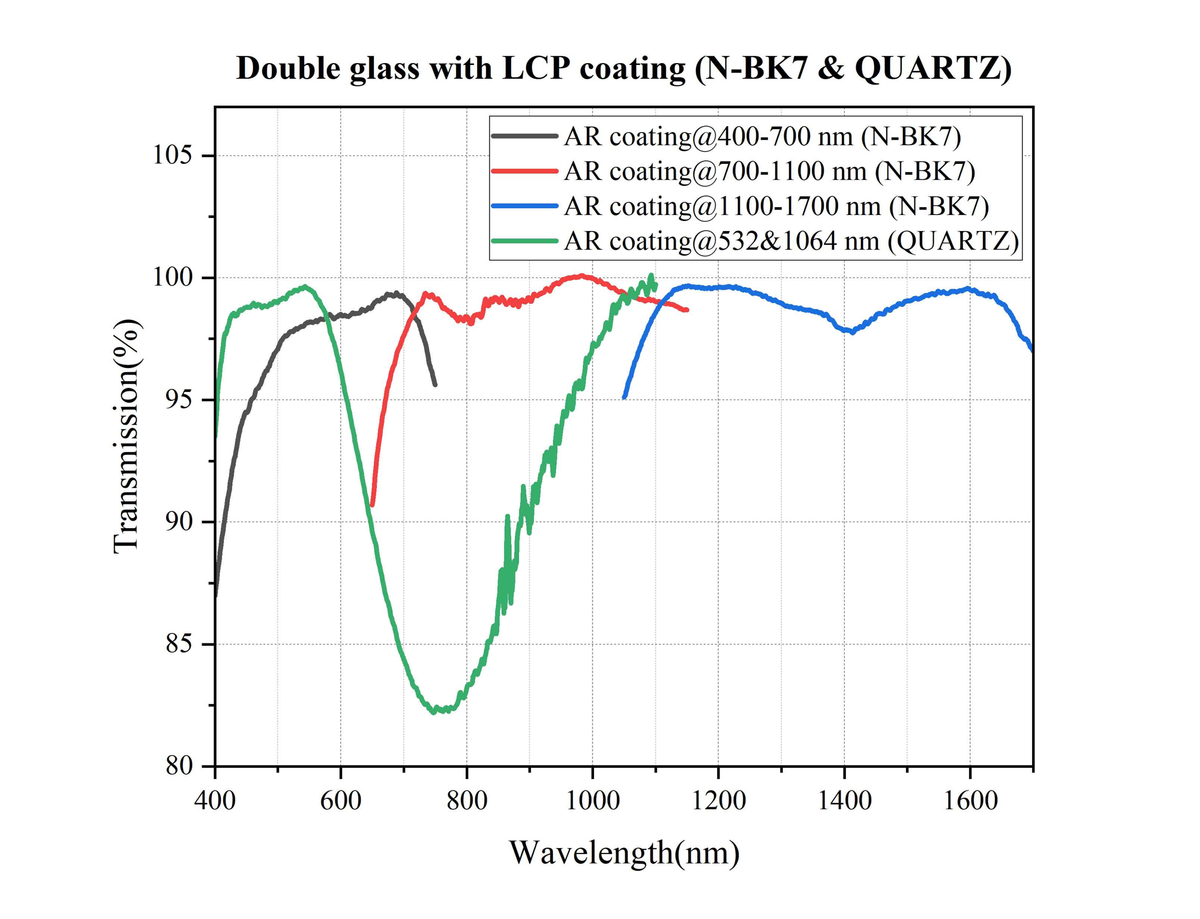

Curve 1

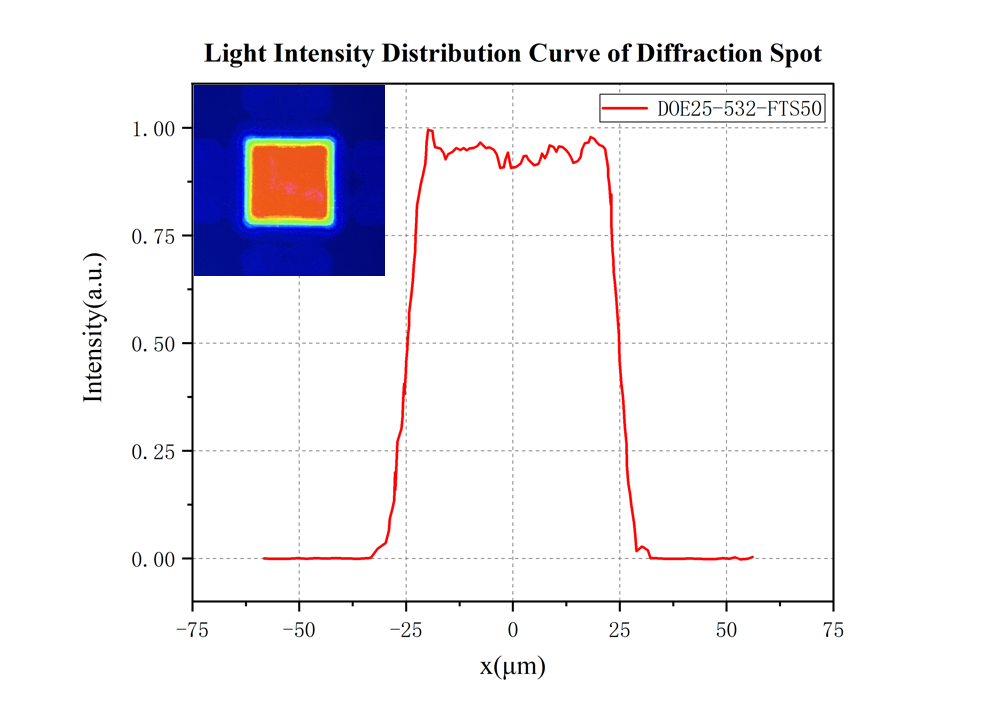

Curve 2

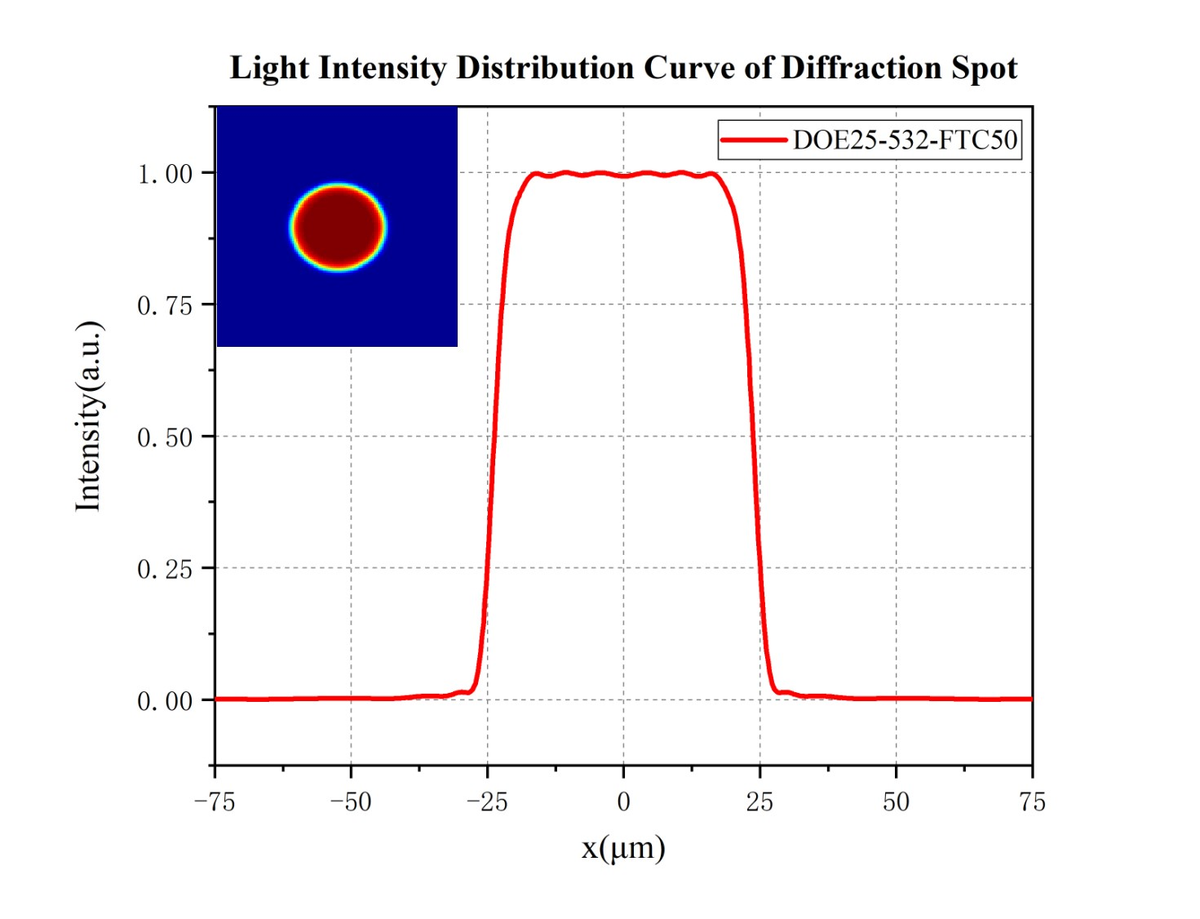

Curve 3

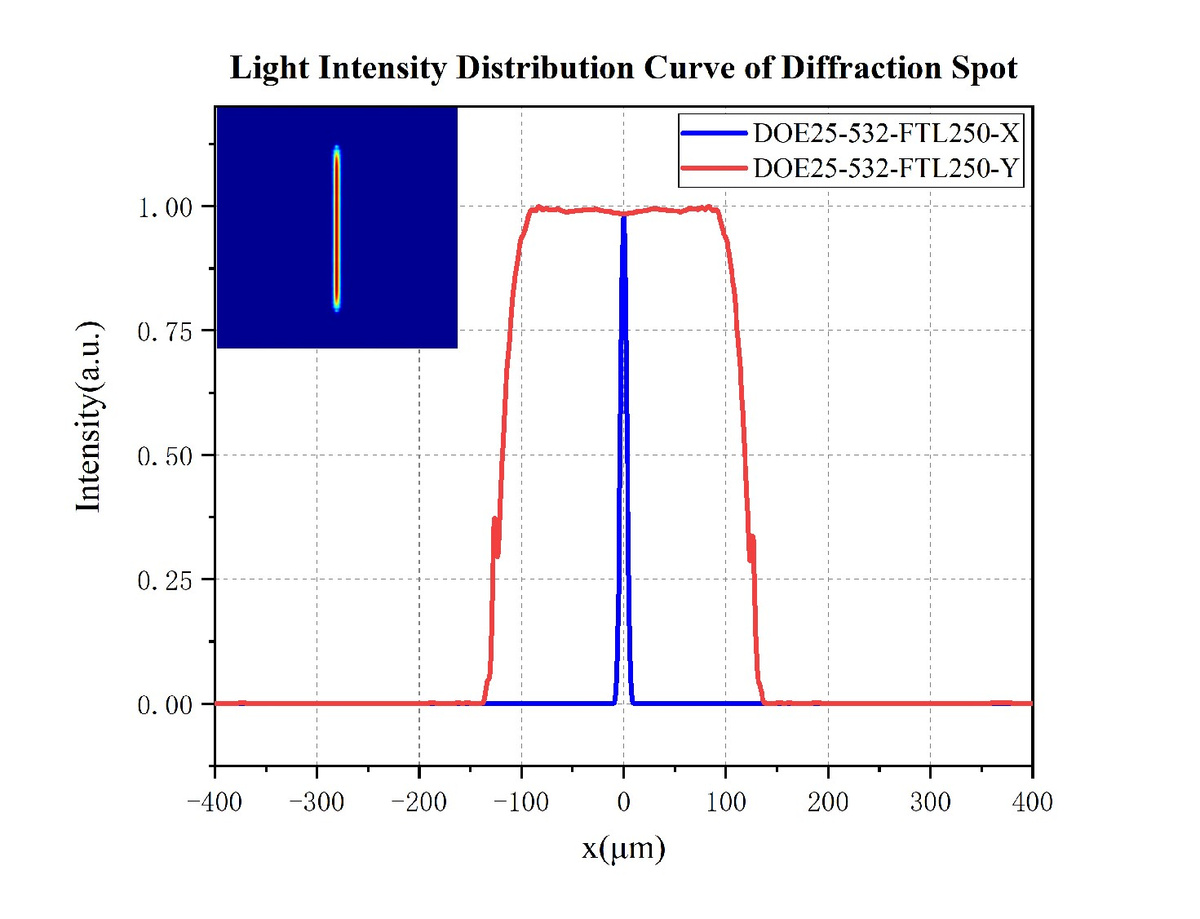

Curve - Intensity

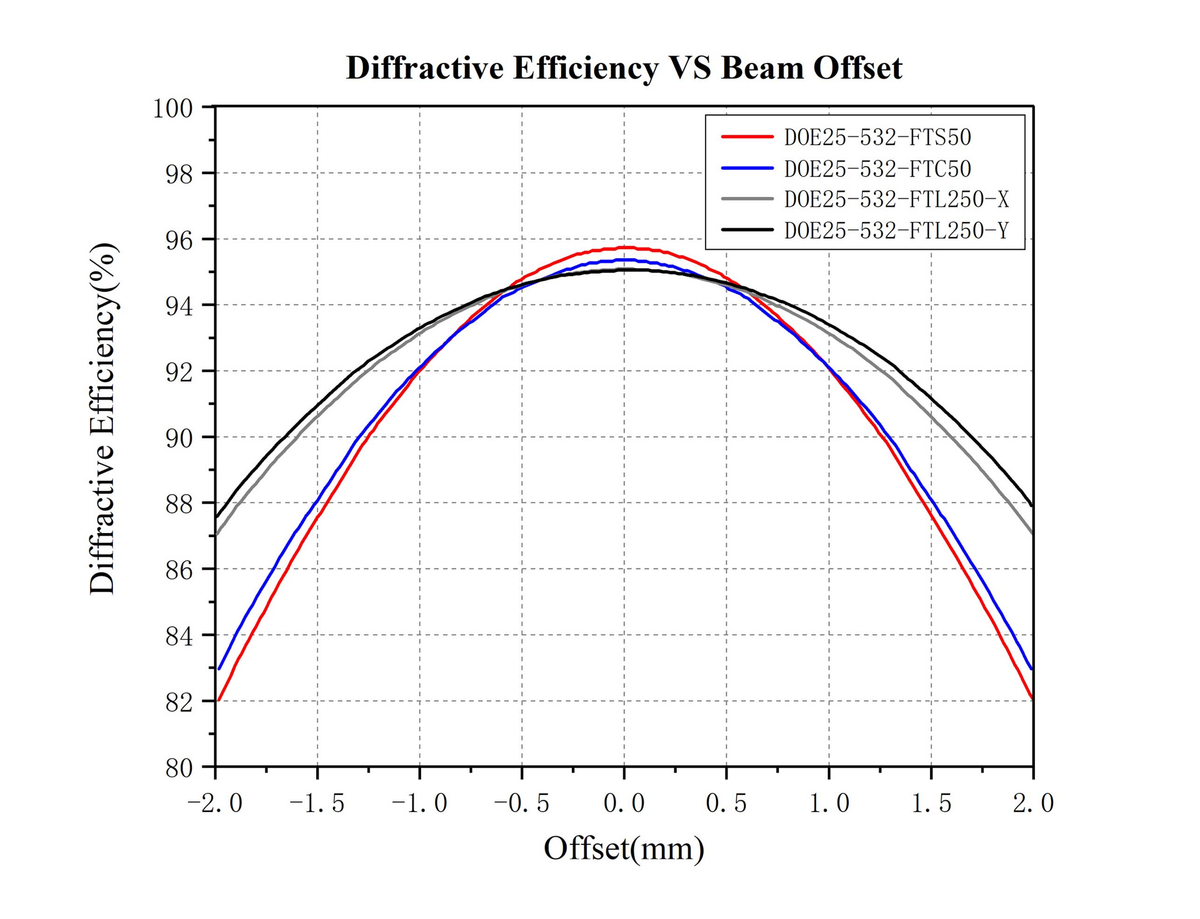

Curve 5

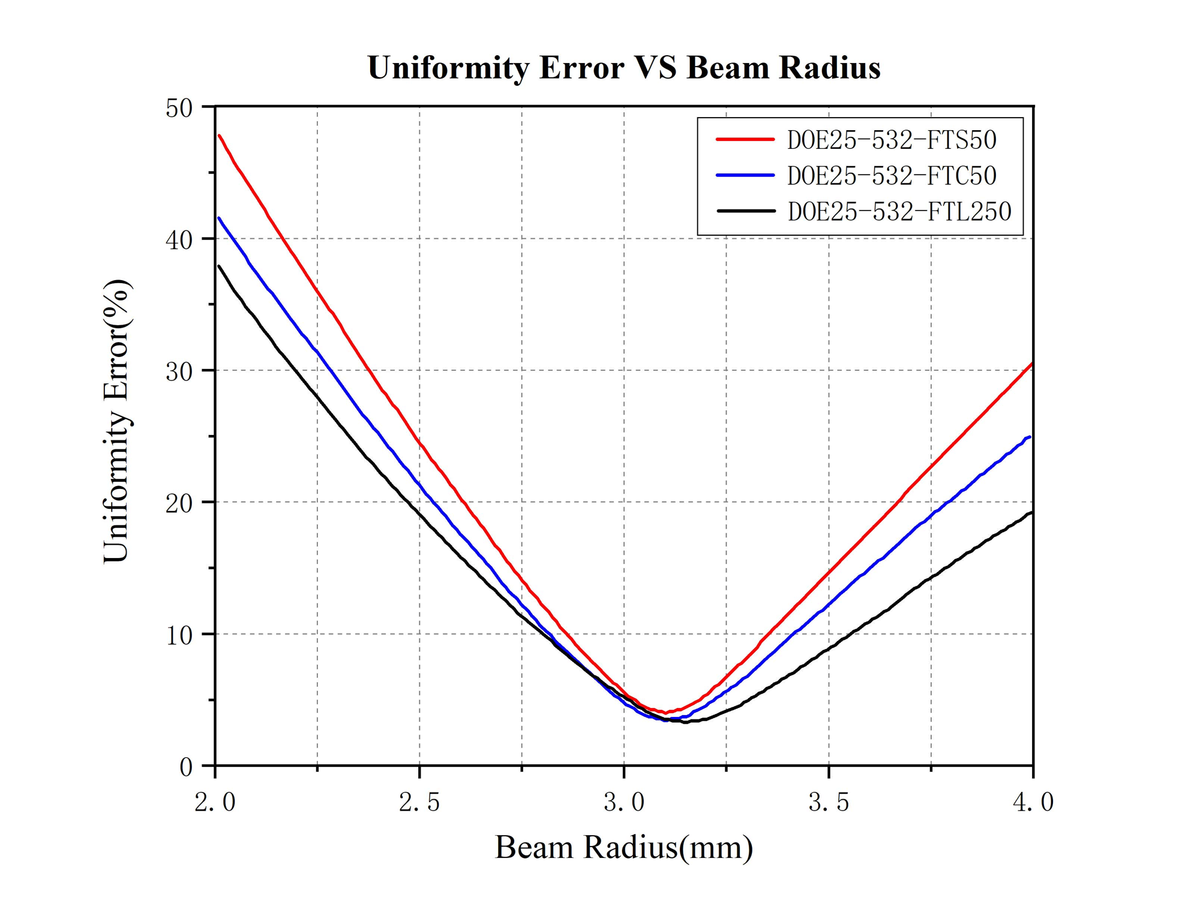

Curve - Uniformity

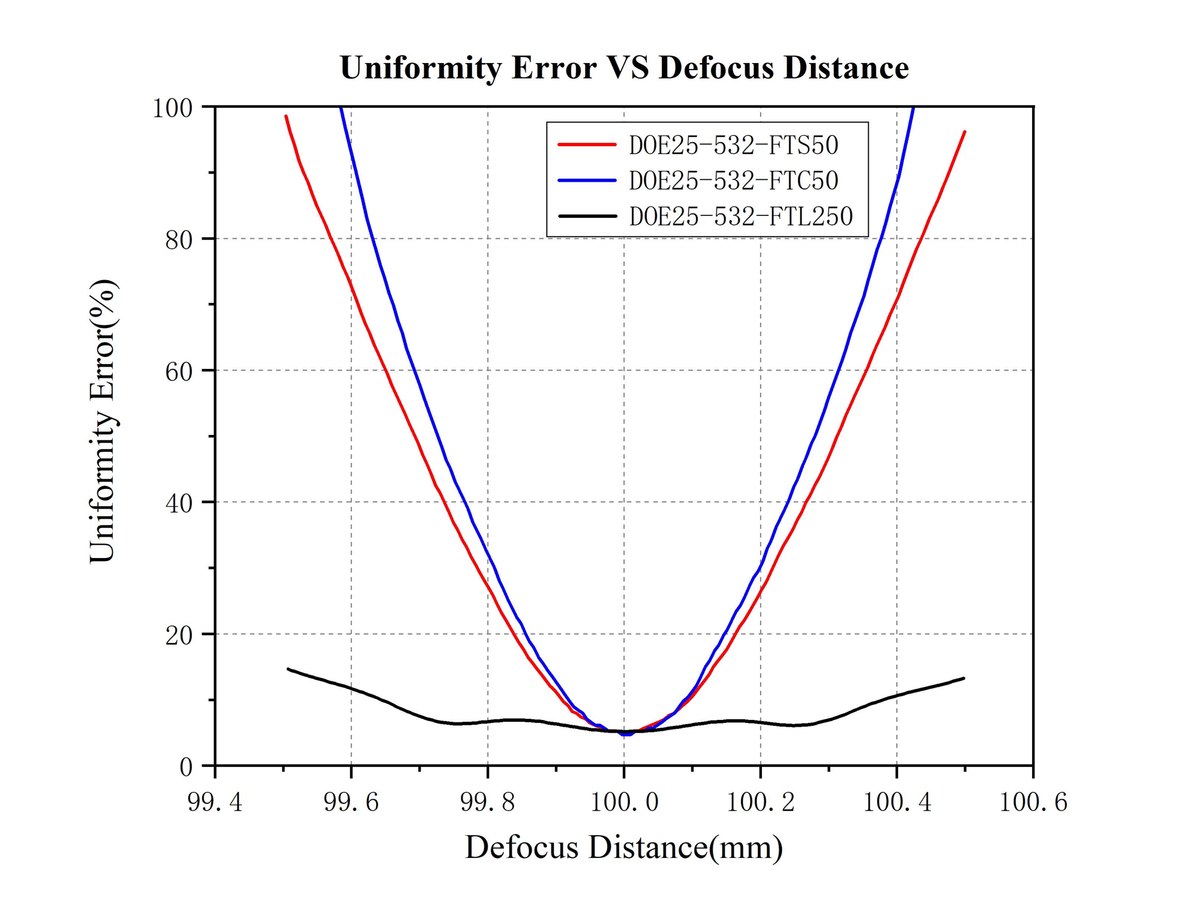

Curve - Uniformity

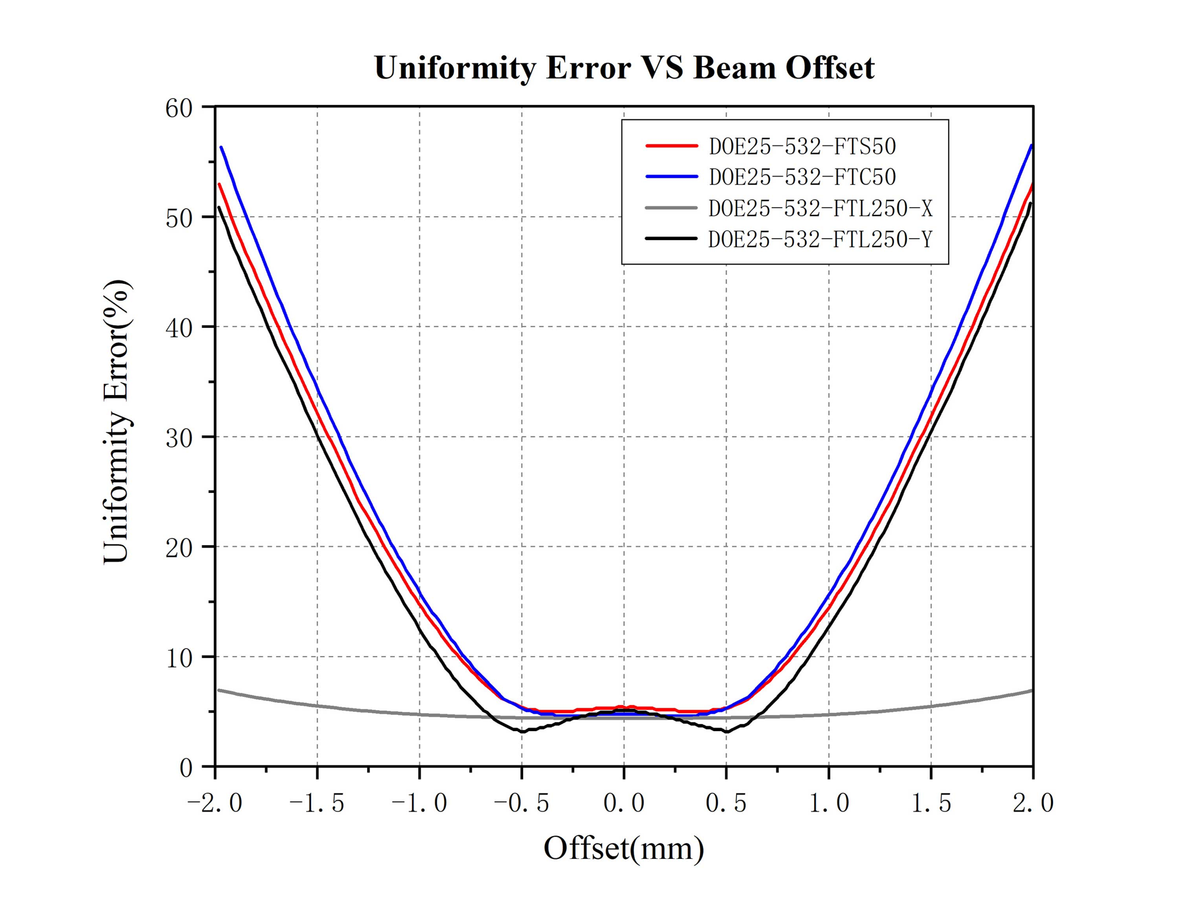

Curve - Uniformity
