Polymer True Zero-Order Half-Wave Plate — HWP25-800A

HWP25-800A
$127.48
In Stock
Key Specifications
Wavelength 800.0nm
Reflectance 0.7%
Transmittance 700.0%
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

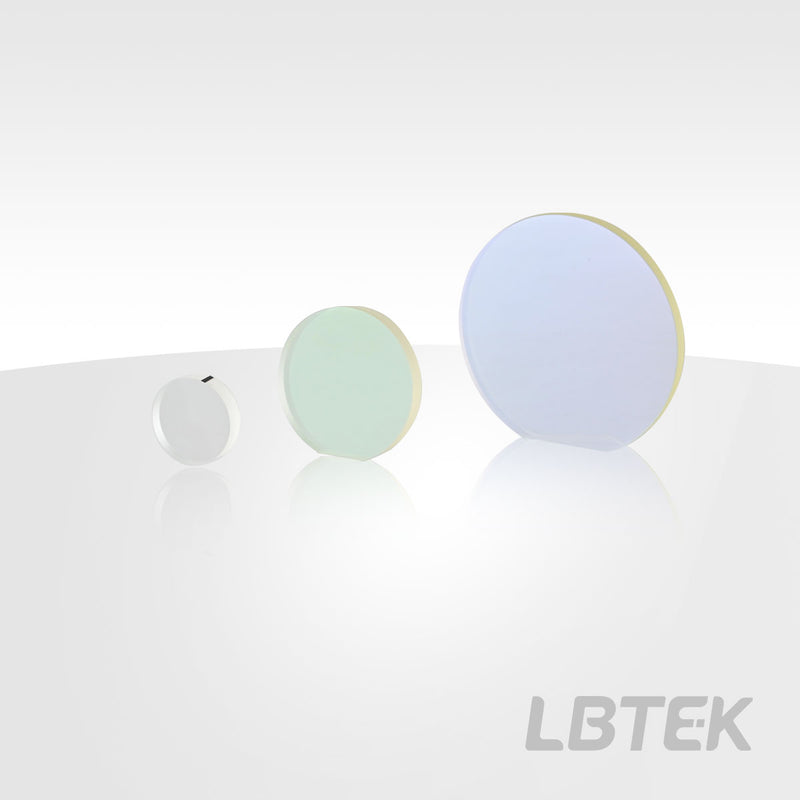

Polymer True Zero-Order Half-Wave Plate — Model HWP25-800A

Polymer λ/2 waveplate at 800 nm, wide-AOI tolerance, mounted or unmounted.

Overview

LBTek's Polymer True Zero-Order Half-Wave Plates use a Liquid Crystal Polymer film sandwiched between N-BK7 windows to deliver λ/2 retardance at the design wavelength. The polymer construction provides exceptional angular tolerance (±15° AOI), broad operating temperature range, and polarization stability across the full clear aperture. Available in 39 discrete design wavelengths from 405 nm to 1550 nm with optional SM05 or SM1 mechanical housing.

Key Features

  • Liquid Crystal Polymer / N-BK7 sandwich construction for λ/2 retardance
  • True zero-order single-element design — superior thermal/spectral stability
  • Wide angular tolerance: ±15° angle of incidence
  • Operating temperature: -20 to 80 °C
  • Anti-reflection coating optimized for the design wavelength band
  • Available unmounted (bare) or pre-mounted in standard SM05/SM1 housing
  • Standard wavelengths: 405 nm to 1550 nm (39 discrete design points)

Applications

  • Polarization state conversion (linear ↔ circular / elliptical)
  • Imaging polarimetry, ellipsometry, isolator-free laser trains
  • Quantum optics and photonic research
  • Display panel polarization management
Optical component materialLiquid Crystal Polymer/N-BK7 Window
Operating Wavelength800 nm
Component sizeØ25.4×3.2 mm
Angle of Incidence (AOI)±15 °
Clear ApertureØ21.5 mm
Latencyλ/2
Surface finish (scratches/pits)40/20
Delay Uniformity±5 nm
Anti-reflective coating700-1100 nm
Delay accuracy±λ/200
ReflectanceRavg<0.7 % (0° incidence angle)
Transmittance>98 %
Operating Temperature-20~80 °C
Transmitted light deflection (without mechanical housing installed)<1 arcmin
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

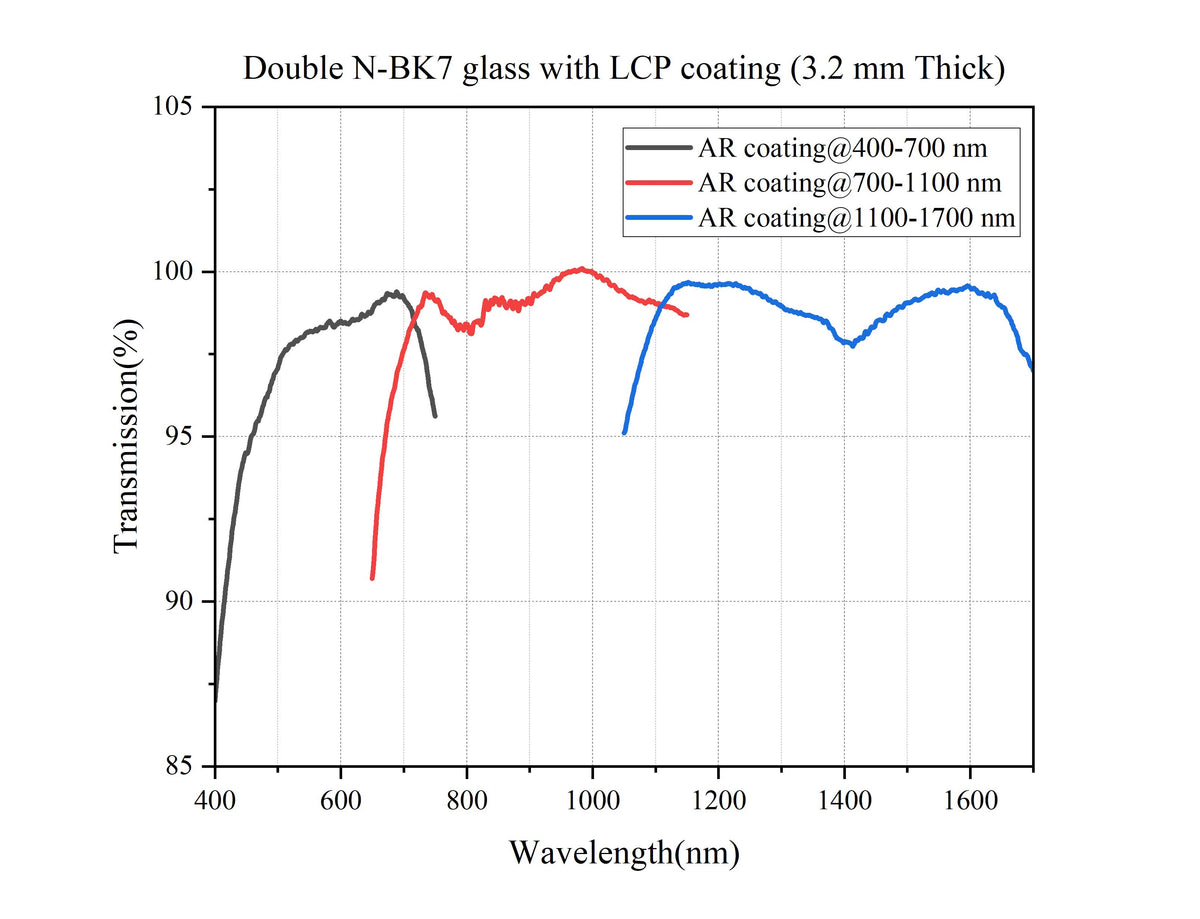

Curve - Double-N-BK7-glass-with-LCP-coating-(3.2-mm-Thick)
Curve - Double-N-BK7-glass-with-LCP-coating-(3.2-mm-Thick)
Curve - HWPxx-xxxA_Retardance-VS-Wavelength
Curve - HWPxx-xxxA_Retardance-VS-Wavelength

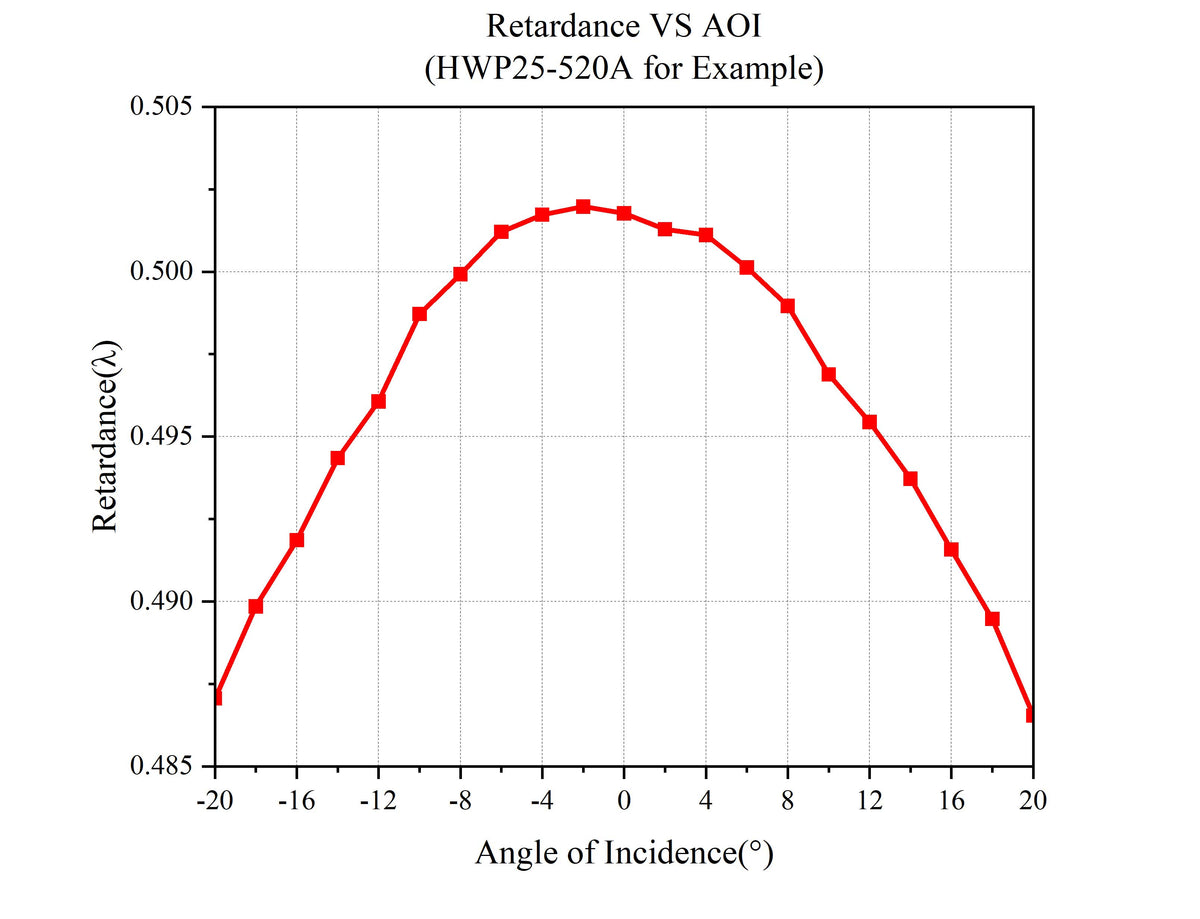

Curve - Retardance-VS-AOI-HWP25-520A
Curve - Retardance-VS-AOI-HWP25-520A

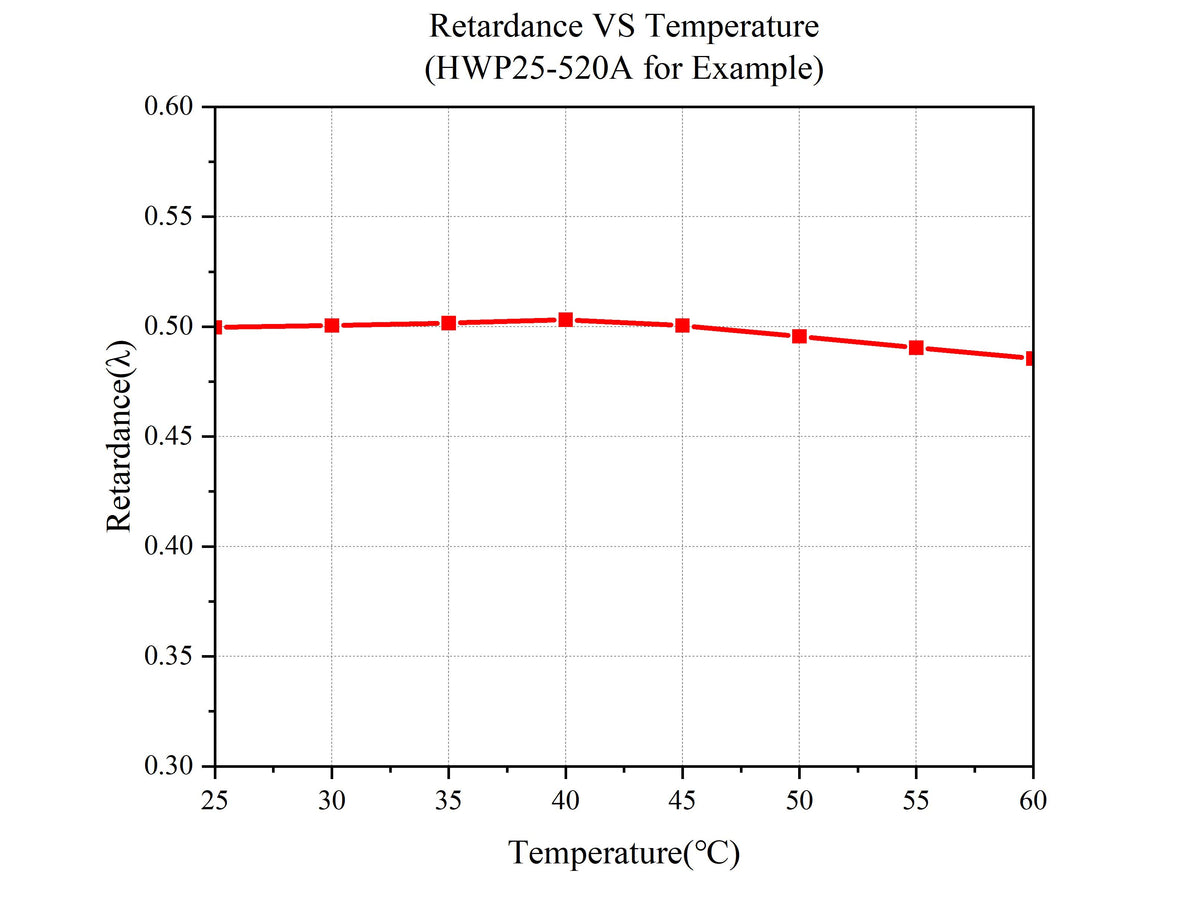

Curve - Retardance-VS-Temperature-HWP
Curve - Retardance-VS-Temperature-HWP
