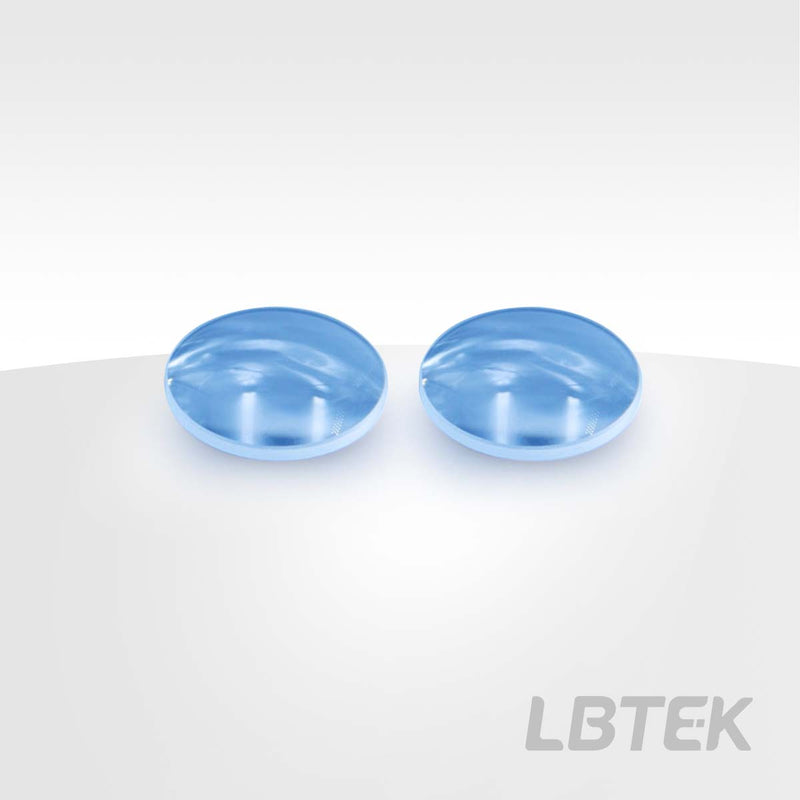

Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10623-A

Name: Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10623-A
Brand: WaveQuanta
SKU: PML10623-A
Price: 40.91 SGD
Availability: InStock

PML10623-A

$40.91

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted — Model PML10623-A

Operating wavelength 400 nm-700 nm, focal length 1000.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, beam expansion or reduction, convergence

A positive meniscus lens is composed of two surfaces with similar radii of curvature (the concave surface has a larger radius of curvature than the convex surface) and possesses a positive focal length. It is commonly used to reduce the focal length of another lens, increase the numerical aperture, and for related applications. To minimize spherical aberration, when used in beam expansion, beam reduction, or diverging collimated light applications, the beam should be incident on the convex surface of the lens; when used for converging light collimation, the beam should be incident on the concave surface. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. LBTEK selects N-BK7 to manufacture various lenses, all of which are finely processed with strict quality control. LBTEK ensures the provision of high-quality lens products to users at reasonable prices.

Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm

The LBTEK Positive Meniscus Lens is primarily used to minimize spherical aberration. When used in combination with another lens, the positive meniscus lens can reduce the focal length and increase the system's numerical aperture (NA) without introducing significant spherical aberration. When converging collimated light, the convex surface of the lens should face the direction of the light source to minimize spherical aberration. All circular lenses from LBTEK can be mounted in LBTEK Standard Lens Tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Curve - N-BK7 UN

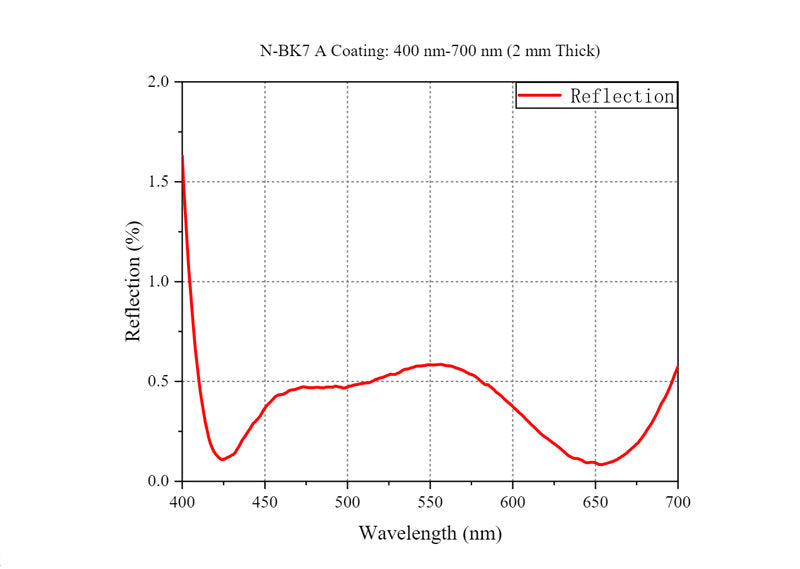

Curve - N-BK7 A

Product Family: Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm (8 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10613-A	`PML10613-A`	25.4 mm	90% CA	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10618-A	`PML10618-A`	25.4 mm	90% CA	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10619-A	`PML10619-A`	25.4 mm	90% CA	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10620-A	`PML10620-A`	25.4 mm	90% CA	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10621-A	`PML10621-A`	25.4 mm	90% CA	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10623-A Current	`PML10623-A`	25.4 mm	90% CA	400 nm-700 nm
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm, unmounted PML10624-A-SP	`PML10624-A-SP`	25.4 mm	>24.4 mm()>19 mm()	400 nm-700 nm	View
Positive Meniscus Lens, N-BK7, AR coating: 400 nm-700 nm MPML10613-A	`MPML10613-A`	25.4 mm	90% CA	400 nm-700 nm	View
