WaveQuanta

Post Holder Set KPH-100-E

KPH-100-E
$26.78
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

Post Holder Set ā€” Model KPH-100-E

āœ” In Stock ā€” Ships Today

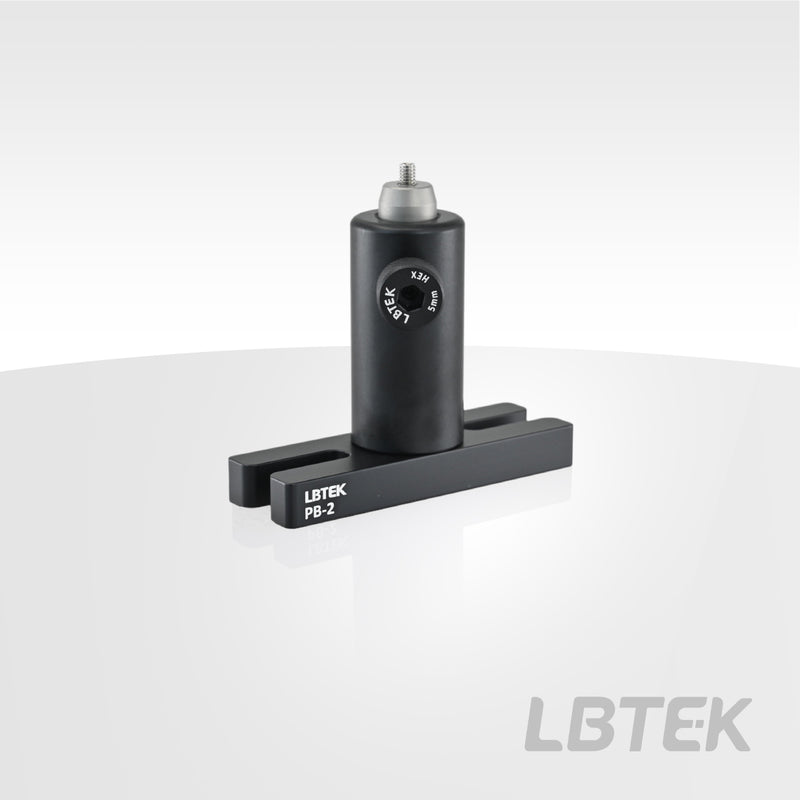

The post holder set (E) comprises a standard post holder, a dual-sided linear channel holder mount, and posts in seven lengths. The post holder is secured to optical tables or breadboards via M6 linear slotted mounting holes on the dual-sided linear channel holder mount. To meet diverse customer needs, LBTEK offers both individual sets and 10-set packages for all seven variants. For example, the KPH-75-E-P10 set contains three components: the OP-75 post, the PH-75A post holder, and the PB-2 double-sided linear holder mount.

Key Features

  • The set includes a standard post holder, a dual-sided linear holder mount and posts;
  • Assortment of seven post holder lengths;
  • The set includes 12.7 mm diameter posts with an M4 screw at the top;
  • Individual sets or 10-set bundles are available;

Application

Installation effect diagram.

Material Post 303 Stainless Steel / Holder Body 606-T6 Aluminum Alloy
Length 100 mm
Extension rod diameter Ƙ12.7 mm
Z-axis adjustment range 80 mm
Knurled Hexagon Thumb Screw Specifications M6
Quantity 1
No documents available for this product.
No CAD drawings available for this product.
