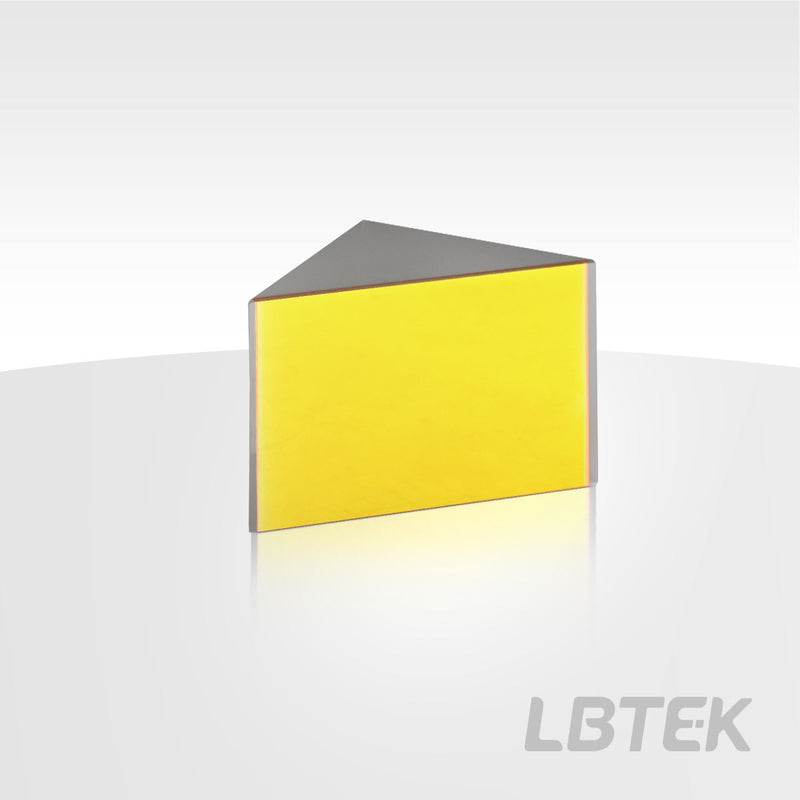

Right-angle prism mirror, bevel coated, N-BK7, gold coating: 800 nm-20.0 μm RAP112-AU

Right-angle prism mirror, bevel coated, N-BK7, gold coating: 800 nm-20.0 μm — Model RAP112-AU

Operating wavelength 800 nm-20.0 μm, substrate N-BK7.

Product Description

• Application: Deflecting light path
• Gold coating, bevel edge coating
• Operating wavelength: 800 nm-20.0 μm
• Optical material: N-BK7

LBTEK's right-angle prism mirrors with bevel coating use N-BK7 substrate, with a metal reflective coating (gold coating, protected by silicon dioxide) applied to the bevel surface. This reflective coating offers high reflectivity (Ravg > 96%) within the wavelength range of 800 nm to 20 μm. These mirrors are easy to install and enable efficient and stable optical path deflection. Currently, LBTEK offers right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.

Right-angle prism mirror, bevel coated, N-BK7, gold coating: 800 nm-20.0 μm

• Tilted Coating
• Optical Material: N-BK7
• Gold Coating: 800 nm-20.0 μm
• Reflectivity: Ravg >96%

LBTEK right-angle prism mirrors are made from N-BK7 substrate, with the hypotenuse coated with a metallic reflective coating (gold coating, protected by silicon dioxide), which provides high reflectivity (Ravg > 96%) in the wavelength range of 800 nm to 20 μm. In addition to the hypotenuse coating, LBTEK also offers right-angle prism mirrors with right-angle coatings, both of which can be mounted in prism mounts. Currently, LBTEK provides right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also offers customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.
