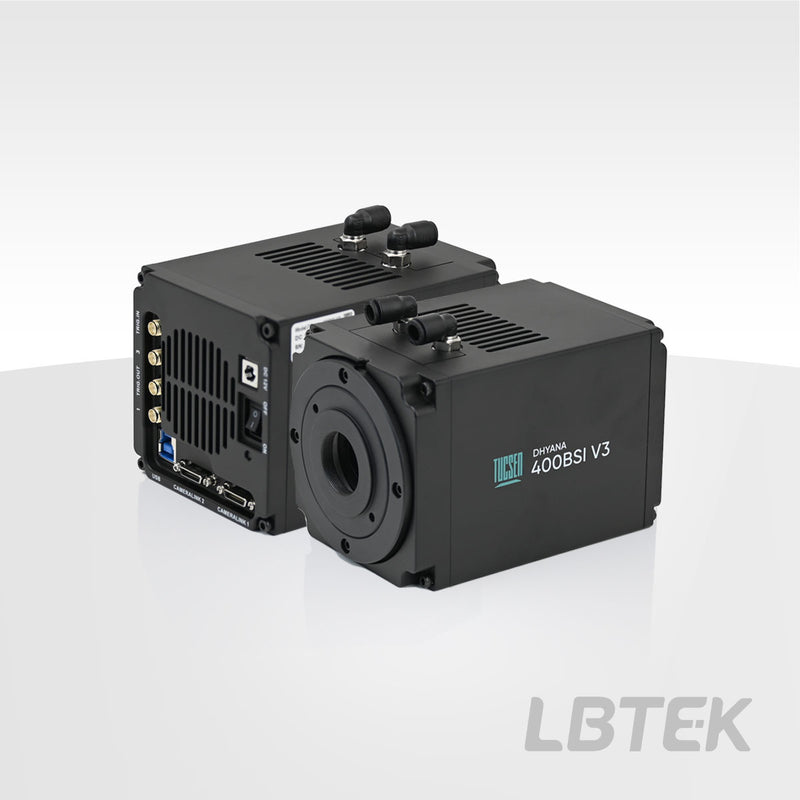

Scientific Research Camera — Model Dhyana 400BSl V3
2048×2048 sCMOS Scientific Research Camera with USB 3.0 interface; 6.5 μm×6.5 μm pixel size.
Overview
The Dhyana 400BSI utilizes a USB 3.0 data transfer interface, achieving a full-resolution frame rate of 40 frames per second.
You can also leverage the ROI function to obtain support for even higher frame rates.
The Dhyana 400BSI, tailored for the characteristics of scanning systems such as light sheet microscopy, has developed a rolling shutter control mode: users can adjust the row exposure interval time and scanning direction of the rolling shutter to more flexibly integrate with scanning systems, achieving high signal-to-noise ratio synchronous imaging.
Key Features
- Resolution: 2048 x 2048
- C-mount optical interface
- Dimensions: 85 mm x 85 mm x 127 mm
Applications
- Light sheet microscopy
| Spectral range | 200 nm - 1100 nm |
| Sensor size | 13.3 mm×13.3 mm |
| Pixel size | 6.5 μm×6.5 μm |
| Effective pixels | 2048×2048 |
| Peak Quantum Efficiency | 95% @ 600 nm |
| Optical Interface | C-mount |
| Data Interface | USB 3.0 |
| Dark current | Air Cooling: 0.5 e-/pixel/s @ -15 ℃, Water Cooling: 0.2 e-/pixel/s @ -25 ℃ |
| Full well capacity | Typical value: 45 ke- |
| Readout noise | CMS: 1.1 e- (Median), 1.2 e- (RMS) |
| Frame rate | 40 fps @ USB 3.0 |
| Shutter Mode | Roller blinds, Global reset |
| Exposure time | 6.6 μs - 10 s |
| Bit Depth | 11 bit, 12 bit, 16 bit |
| Power Supply | 12 V / 8 A |
| Size | 85 mm×85 mm×127 mm |
| weight | 995 g |
| External trigger output | Exposure start, Global, Readout end, High level, Low level |
| Maximum cooling temperature difference | Below ambient temperature 45 ℃ |
| Operating System | Windows，Linux |
| Sensor Type | BSI sCMOS, monochrome sensor |
| Software Configuration | Mosaic, Samplepro, LabView, Matlab, Micromanager |
| Humidity | 10 - 85% |
| Operating Temperature | 0 - 40 °C |
| Operating Wavelength | 200 nm - 1100 nm |
No CAD drawings available for this product.

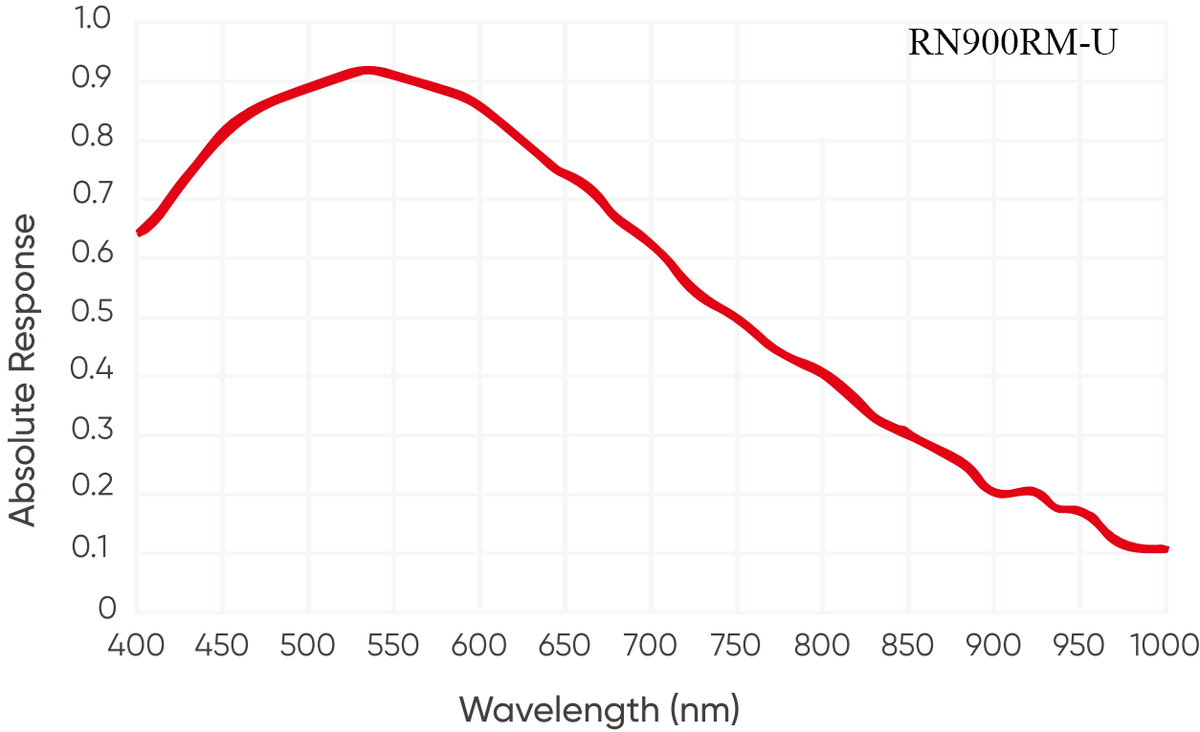

Spectral Response Curve 1 — Graph

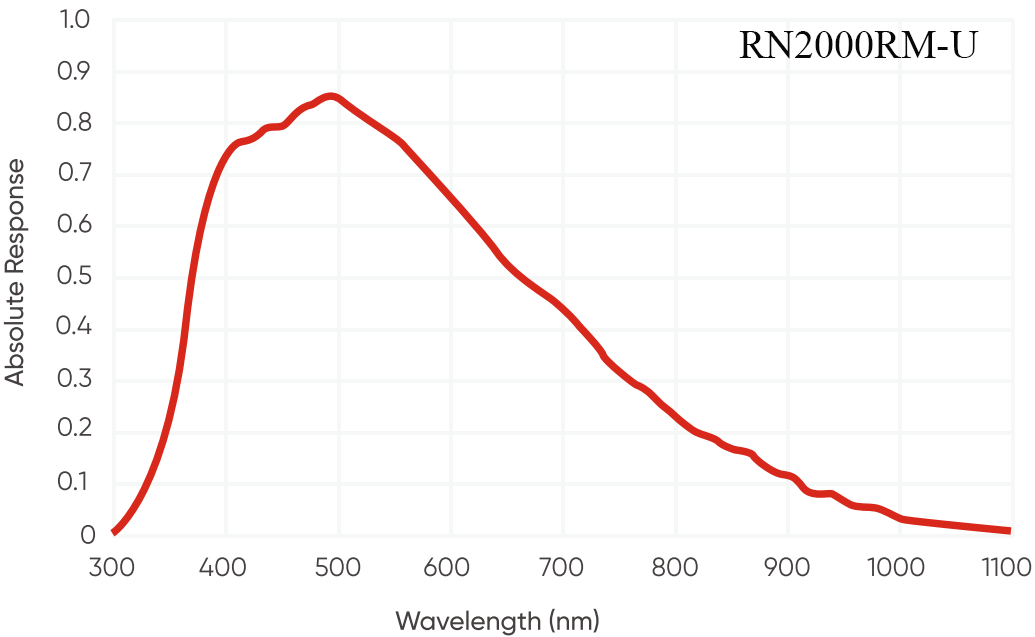

Spectral Response Curve 2 — Graph

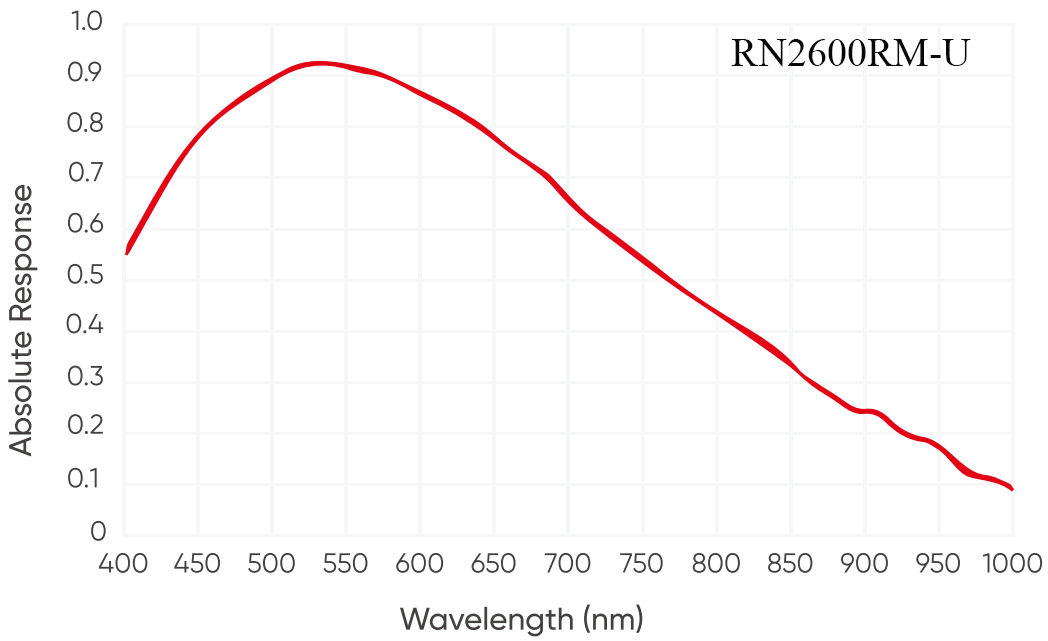

Spectral Response Curve 3 — Graph

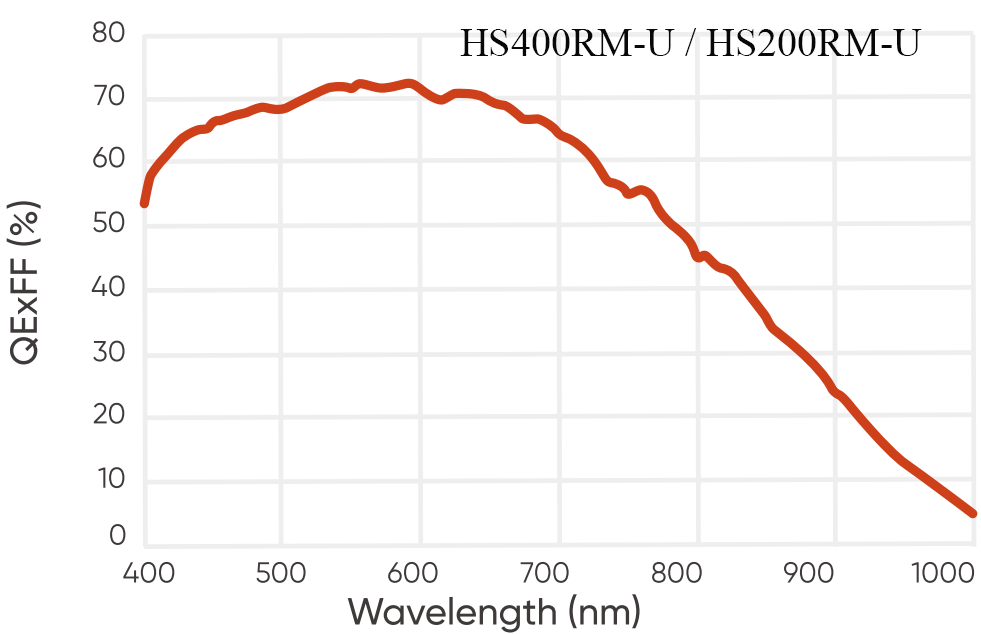

Spectral Response Curve 4 — Graph

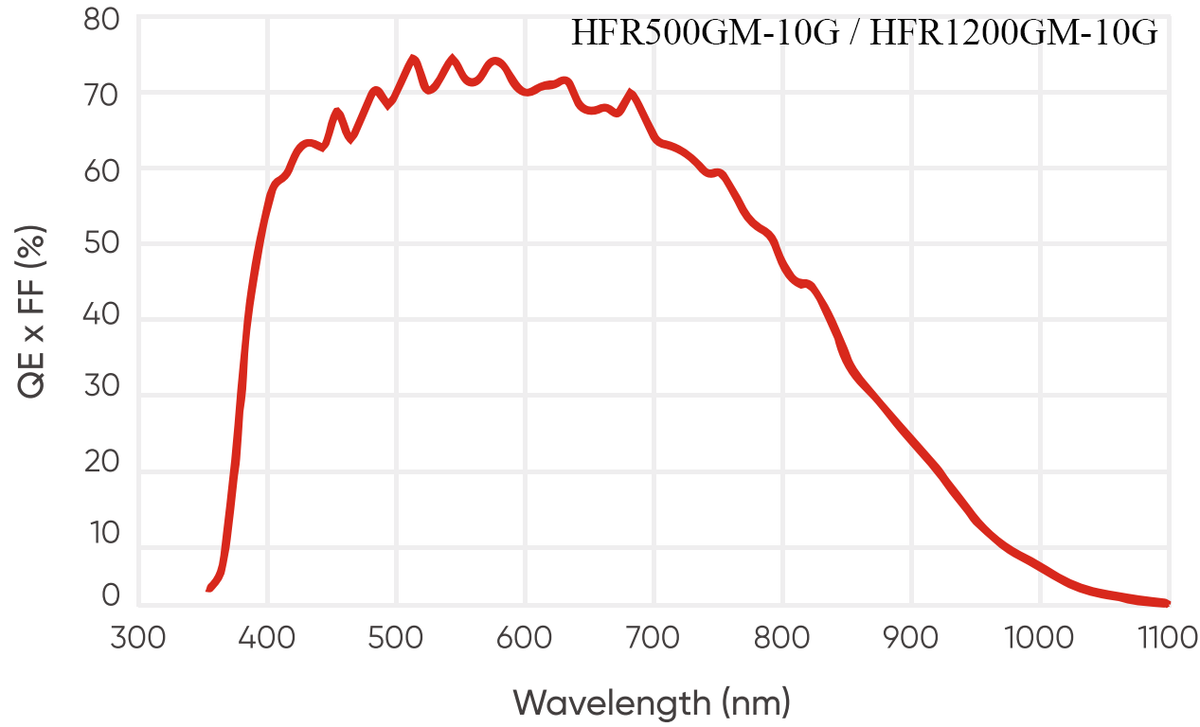

Spectral Response Curve 5 — Graph

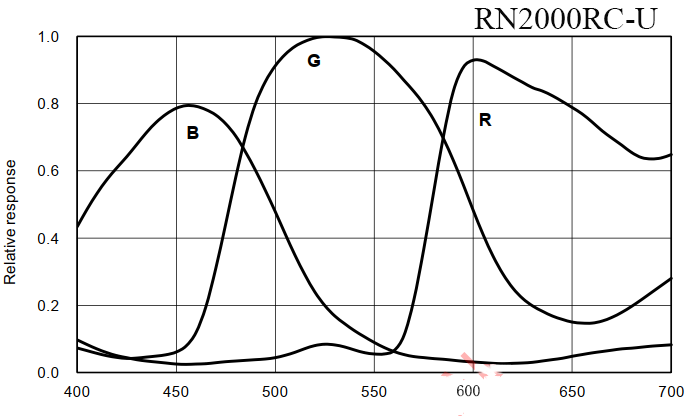

Spectral Response Curve 6 — Graph

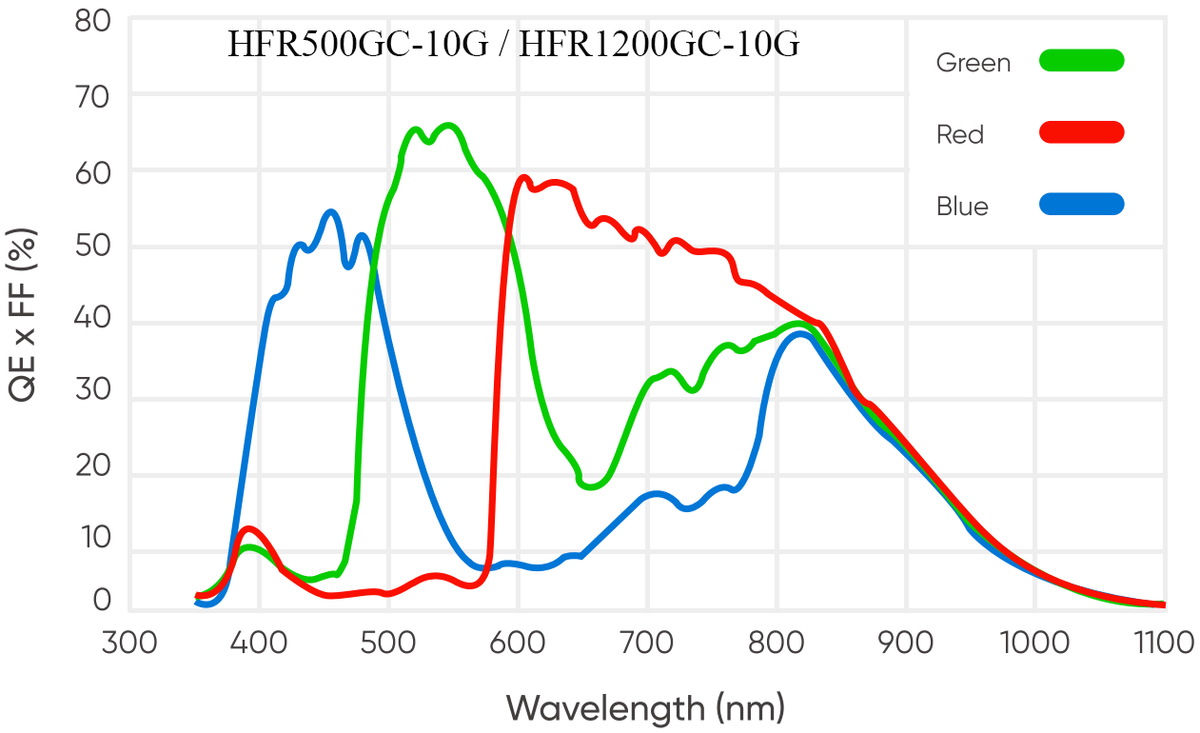

Spectral Response Curve 7 — Graph
Spectral Response Curve 8 — Graph
