Scissor Jack LJ1209
LJ1209$630.45
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Scissor Jack LJ1209 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

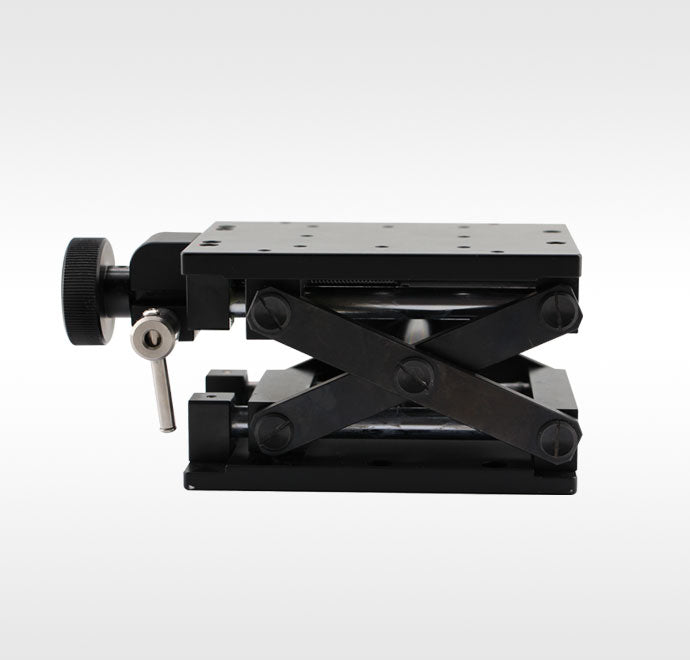

The scissor jack from LBTEK provides stable height adjustment with a range of 65 mm to 105 mm from the base mounting surface to the stage, offering high load capacity and excellent parallelism, making it ideal for mounting optomechanical components requiring height adjustment. The stage's adjustment handwheel can be locked using the side locking lever, while the stage features 21×M6 tapped holes for versatile mounting. The base plate includes 6×M6 waist-type mounting holes for secure fixation. Each purchase includes four M6 socket head cap screws and a 5 mm short-arm hex key for installation.
Key Features
- Stage size 120 mm × 90 mm;
- Height adjustment range 40 mm, from 65 mm to 105 mm;
- Vertical load capacity 7 kgf;
- Adjustment precision 2 mm/rev;
Application
Scissor Jack LJ1209.
| Material | Aluminum alloy |
| Surface Treatment | Black anodized |
| Tabletop size | 120 mm × 90 mm |
| Attribute 1178 | 40 mm |
| Parallelism | 200 μm |
| Holding Force | 7 kgf |
| Tabletop threaded hole specifications | M6 |
| Mounting method | M6 Countersunk Hole |
| Weight | 1.5 kg |
| Adjustment accuracy | 2mm per revolution |
| Mounting Hardware Included | 4 M6×12 socket head cap screws |
| Hex Key Wrench | 5 mm short-armhex key |
No CAD drawings available for this product.
Product Family: Scissor Jack (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Scissor Jack LJ1710 |
LJ1710
| — | — | — | View |
| Scissor Jack LJ1209 Current |
LJ1209
| — | — | — |
