Scissor Jack LJ1710
LJ1710$884.86
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Scissor Jack LJ1710 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

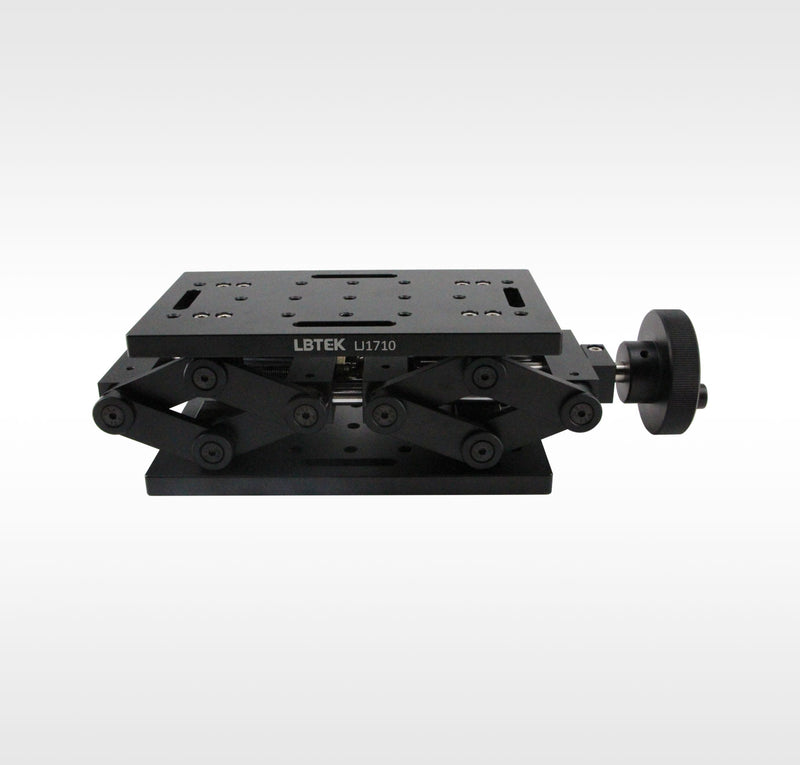

The scissor jack from LBTEK provides stable height adjustment with a range of 68 mm to 118 mm from the base mounting surface to the stage. Featuring a robust 16-arm double bow-type design, it offers exceptional rigidity and a load capacity of up to 25 kgf. With excellent parallelism, it is ideal for mounting optomechanical components requiring height adjustment. The stage's adjustment handwheel can be locked via the side locking screw, while both the stage and base plate include 15×M6 tapped holes and 4×M6 waist-type holes to accommodate common mounting requirements. Each LBTEK scissor jack comes with 4 M6 socket head cap screws, a 5 mm short-arm hex key, and a 3 mm hex key.
Key Features
- Stage size 178 mm × 100 mm;
- Height adjustment range 50 mm, from 68 mm to 118 mm;
- Heavy load type, vertical load capacity 25 kgf;
Application
Scissor Jack LJ1710.
| Parallelism | 300 μm |
| Material | Aluminum alloy |
| Surface Treatment | Black anodized |
| Tabletop size | 178 mm × 100 mm |
| Tabletop threaded hole specifications | M6 tapped hole and M6 waist-type hole |
| Mounting method | M6 tapped hole and M6 waist-type hole |
| Weight | 2.1 kg |
| Mounting Hardware Included | 4 M6×16 socket head cap screws |
| Hex Key Wrench | 5 mm short-arm hex key and 3 mm hex key |
| Attribute 1178 | 50 mm |
| Holding Force | 25 kgf |
No CAD drawings available for this product.
Product Family: Scissor Jack (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Scissor Jack LJ1710 Current |
LJ1710
| — | — | — | |
| Scissor Jack LJ1209 |
LJ1209
| — | — | — | View |
