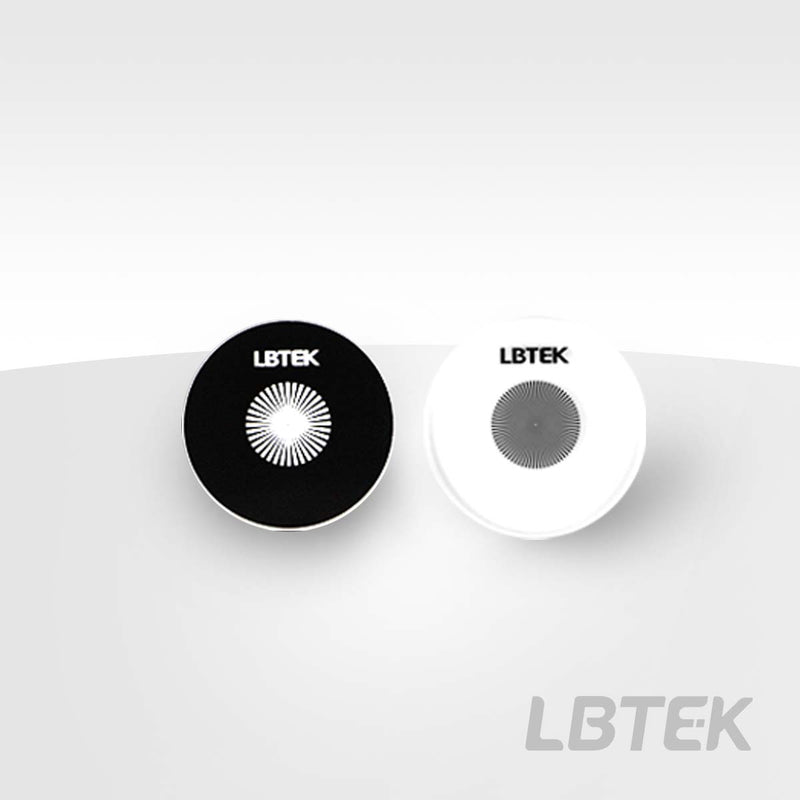

Siemens Star Target RTR1CI-P
RTR1CI-P$481.82
In Stock
Key Specifications
Diameter
25.4mm
Design Tools
View all 49 calculators →RoHS
REACH
Siemens Star Target RTR1CI-P
Siemens Star Target — high-quality optical component.
Overview
LBTek precision-printed test target for resolution, alignment, and calibration measurements.
Key Features
- Specifications available on request
Applications
- Resolution testing
- MTF measurement
- System alignment
- Calibration
- Optical metrology
| Diameter | 25.4 mm (+0.0/-0.1 mm) |
| Thickness | 2.0 mm (±0.2 mm) |
| Surface Flatness | ≤15 μm |
| Surface Quality (S-D) | 40/20 |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve - Transmission of Soda Lime Glass, 0°AOI
Curve - Chromium Coating, 5°AOI
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: Siemens Star Target (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Siemens Star Target RTR1CI-P Current |
RTR1CI-P
| — | — | — | |
| Siemens Star Target RTR1CH-P |
RTR1CH-P
| — | — | — | View |
| Siemens Star Target RTR1CH-N |
RTR1CH-N
| — | — | — | View |
| Siemens Star Target RTR1CI-N |
RTR1CI-N
| — | — | — | View |
