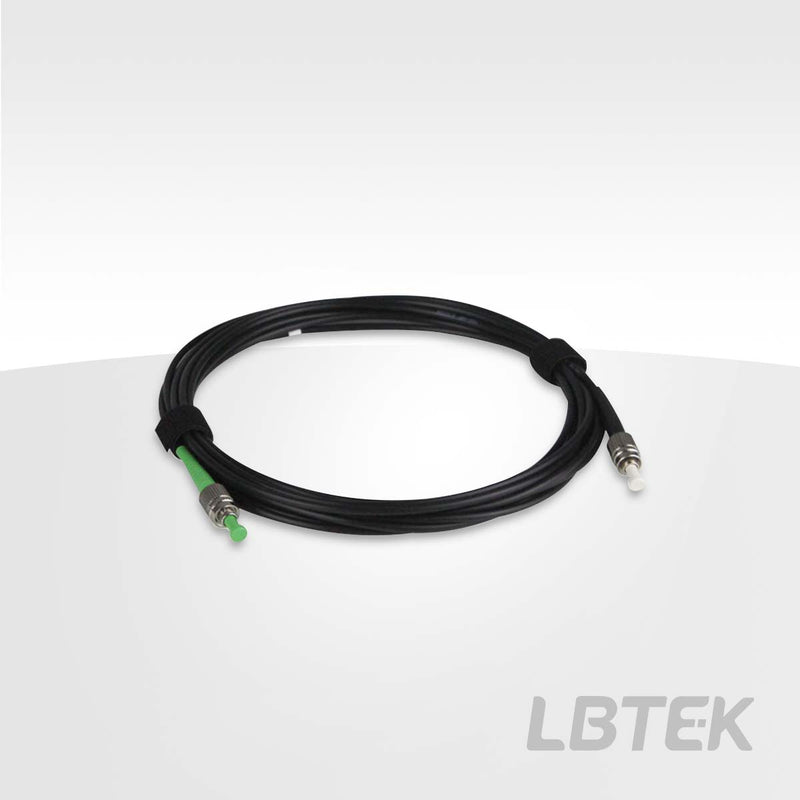

Single-mode fiber optic patch cord, Ø3 mm protective jacket C460-PCAPC-1
C460-PCAPC-1$124.30
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK single-mode fiber optic patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. The hybrid connector single-mode fiber optic patch cords are available in two types: FC/PC to FC/APC and FC/PC to SMA, with the wavelength range from 400 nm to 1600 nm, the loose tube diameter of 3 mm, and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.
- Connector Type: FC/PC to FC/APC
- Minimum Return Loss: 50dB
- Loose Tube Diameter: 3 mm
| Wavelength range | 450 nm-600 nm |
| Fiber length | 1.0 m |
| Connector Type | FC/PC to FC/APC |
| Numerical Aperture | 0.12 |
| Operating Temperature | -20°C ~+70°C |
| Wavelength Range | 430 nm±30 nm |
| Fiber Type | 460-HP |
| Mode Field Diameter | 3.5 um±0.5 um@515 nm |
| Fiber core diameter | 2.5 um |
| Cladding diameter | 125.0 um±1.5 um |
| Coating layer diameter | 245.0 um±15.0 um |
| Return Loss | 2.5 dB |
| Minimum Return Loss | 50 dB |
| Maximum Optical Power | 50 mW |
| Loose tube diameter | Ø3.0 mm |
No CAD drawings available for this product.
