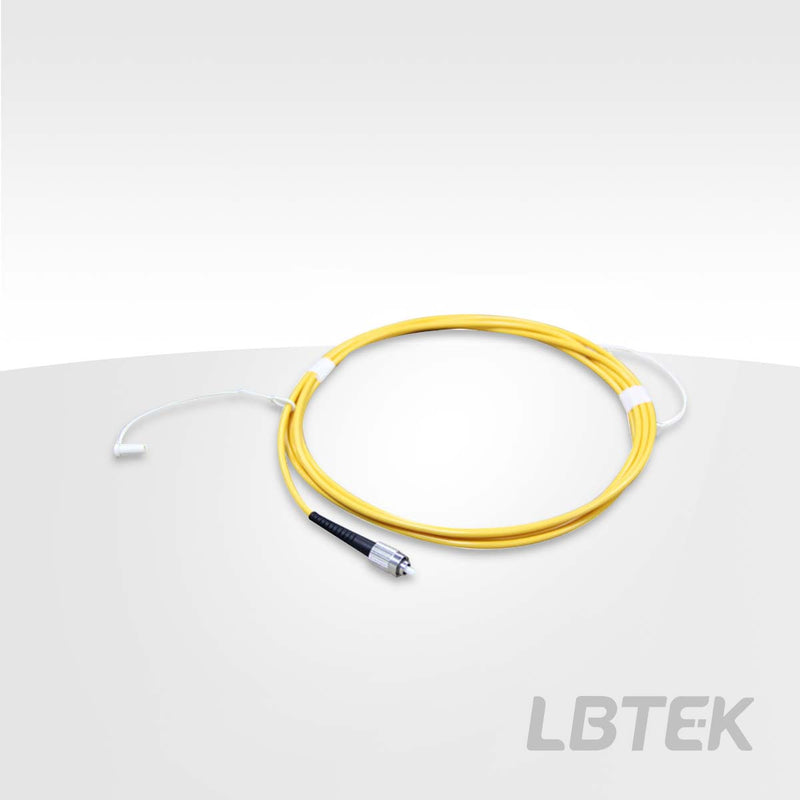

Single-mode fiber optic patch cord, Ø3 mm protective jacket C980-PC-2
C980-PC-2$126.69
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK single-mode fiber optic patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, the single-mode fiber optic patch cords with FC/PC connectors offer the selectable wavelength range from 400 nm to 1600 nm, with the loose tube diameter of 3 mm and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC are interchangeable.
- Single-mode fiber optic patch cord, FC/PC connector
- Minimum return loss: 50 dB
- Loose tube diameter: 3 mm
| Wavelength range | 980 nm-1200 nm |
| Fiber length | 2.0 m |
| Connector Type | FC/PC |
| Numerical Aperture | 0.14 |
| Operating Temperature | -20°C ~+70°C |
| Wavelength Range | 920 nm±50 nm |
| Fiber Type | 1060-XP |
| Mode Field Diameter | 5.9 um±0.3 um@980 nm 6.2 um±0.3 um@1060 nm |
| Fiber core diameter | 8.5 um |
| Cladding diameter | 125.0 um±0.5 um |
| Coating layer diameter | 245.0 um±15.0 um |
| Return Loss | 0.5 dB |
| Minimum Return Loss | 50 dB |
| Maximum Optical Power | 50 mW |
| Loose tube diameter | Ø3.0 mm |
No CAD drawings available for this product.
