Smooth-bore Adapter — Model UTAD-16
✔ In Stock — Ships Today

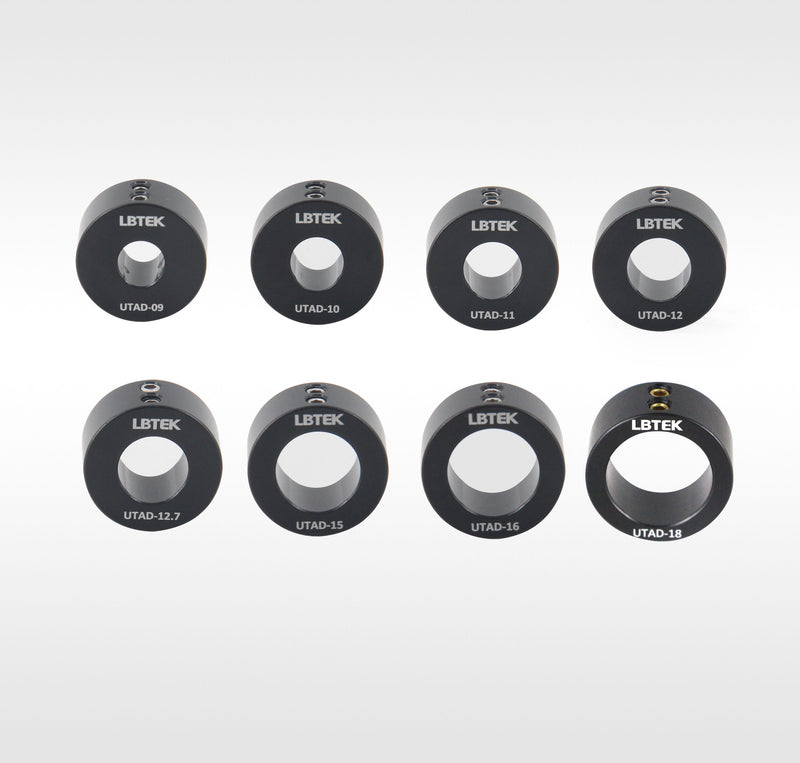

The smooth-bore adapter from LBTEK is suitable for mounting cylindrical components with diameters of Ø9 mm, Ø10 mm, Ø11 mm, Ø12 mm, Ø12.7 mm, Ø15 mm, Ø16 mm, and Ø18 mm. It can be installed in optomechanical assemblies such as mounts or coaxial systems with Ø25.4 mm smooth-bore holes.
Key Features
- Smooth outside diameter: Ø25.4 mm
- Smooth inner diameter for set screw fixation
Application
The smooth-bore adapter allows cylindrical components to be connected to optomechanics with smooth-bore holes.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Smooth-bore Adapter (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Smooth-bore Adapter UTAD-09 |
UTAD-09
| — | — | — | View |
| Smooth-bore Adapter UTAD-10 |
UTAD-10
| — | — | — | View |
| Smooth-bore Adapter UTAD-11 |
UTAD-11
| — | — | — | View |
| Smooth-bore Adapter UTAD-12 |
UTAD-12
| — | — | — | View |
| Smooth-bore Adapter UTAD-12.7 |
UTAD-12.7
| — | — | — | View |
| Smooth-bore Adapter UTAD-15 |
UTAD-15
| — | — | — | View |
| Smooth-bore Adapter UTAD-16 Current |
UTAD-16
| — | — | — | |
| Smooth-bore Adapter UTAD-18 |
UTAD-18
| — | — | — | View |
| Smooth-bore Adapter UTAD-19.5 |
UTAD-19.5
| — | — | — | View |
