Snap-in sleeve mounting bracket SM3-FR
SM3-FR$49.46
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Snap-in sleeve mounting bracket — Model SM3-FR
✔ In Stock — Ships Today

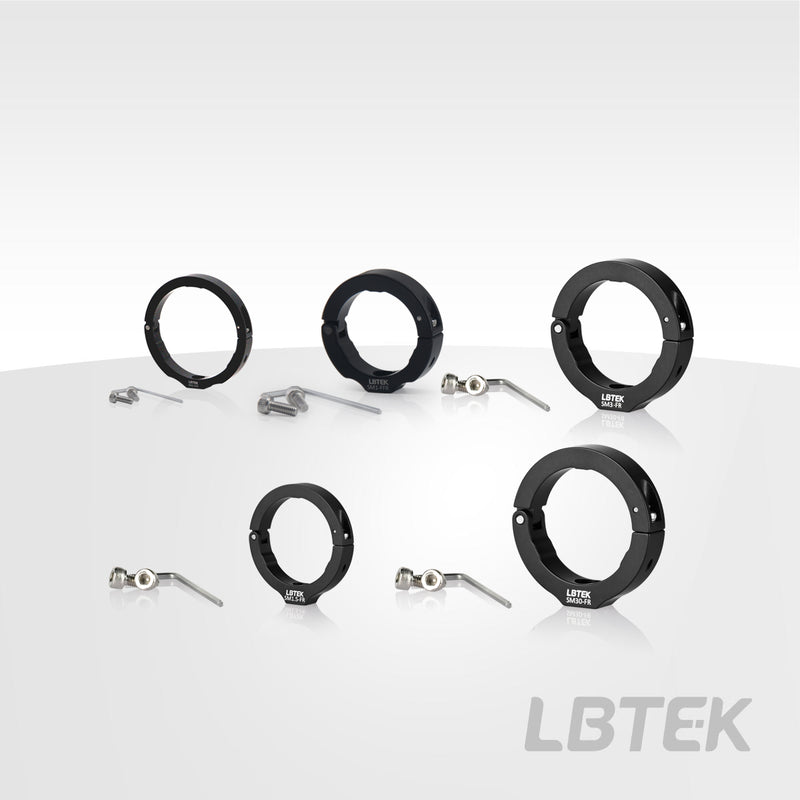

The LBTEK snap-in sleeve mounting bracket is specifically designed for installing and securing SM1, SM30, SM1.5, SM2, and SM3 series sleeves, fixing lens sleeves to breadboards or optical platforms. The bottom of the mounting bracket features an M4 countersunk mounting hole, which can be supported using a Ø12.7 mm stainless steel optical post or other connecting components.
Key Features
- For installing and securing SM1, SM30, SM1.5, SM2, SM3 series sleeves
- Fixed using side locking screws
- Three-point clamping method evenly distributes clamping force, reducing deformation and damage to the clamped part
- Hinge-type opening mode is more convenient and faster
Application
Fixed socket mounting brackets are commonly used for securing sockets.
| Thickness | 12.0 mm |
No CAD drawings available for this product.
Product Family: Optomechanics - Snap-In Sleeve Mounts (5 variants)
