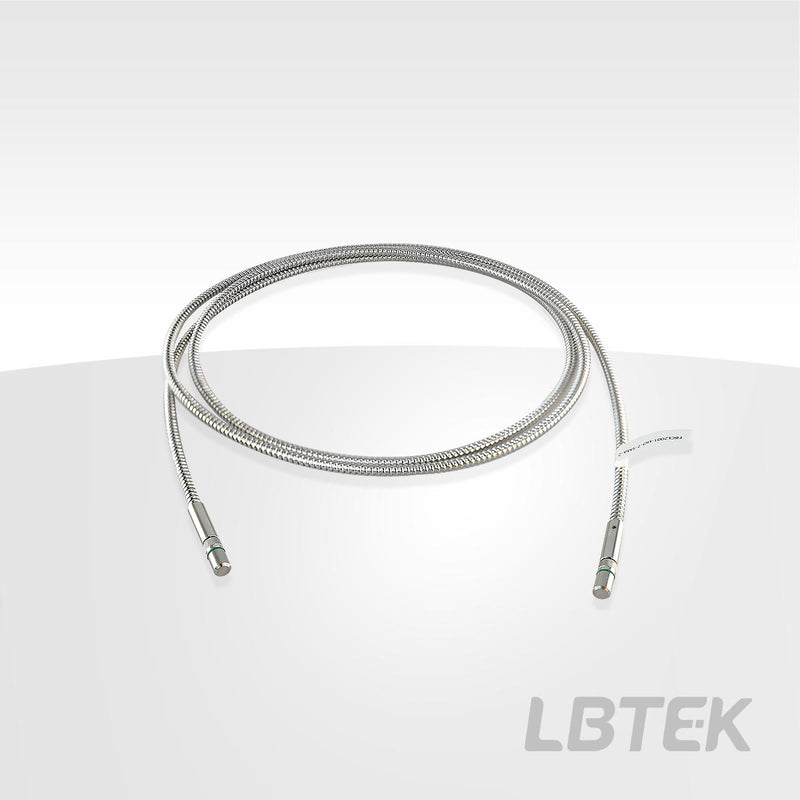

Straight-through multimode fiber optic bundle FBL2001-LO-7-SMA-2
FBL2001-LO-7-SMA-2$668.80
In Stock
Key Specifications
Wavelength
400.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
LBTEK through-type multimode fiber bundles feature good coupling, high light transmission efficiency, and excellent fatigue resistance, making them an ideal choice for laser processing, communications, and more. Among them, multimode fiber patch cords with SMA connectors are available in core diameter ranges from 105 μm to 550 μm, all using metal ferrins to ensure plug-and-play repeatability. The loose tube is a 6mm stainless steel cable, which effectively protects the optical fiber. Non-standard customization is available for other requirements.
- SMA Connector
- Multiple Fiber Core Arrangements Available
- 7/19 Fiber Count Options
| Operating Wavelength | 400-2200 nm |
| Length | 2+0.1 / -0.0 m |
| Fiber core diameter | 200 μm |
| Number of Optical Fibers | 7 pieces |
| Fiber optic bundle type | Linear straight-through |
| Connector Type | SMA905 |
| Cladding diameter | 220 μm |
| Coating layer diameter | 270 μm |
| NA | 0.22 |
| Fiber core material | Low hydroxyl quartz material |
| Cable Construction | 6mm Stainless Steel Cable |
| Length Range | 23/46 mm |
| Spot Size | 0.23×1.55 mm |
No CAD drawings available for this product.
