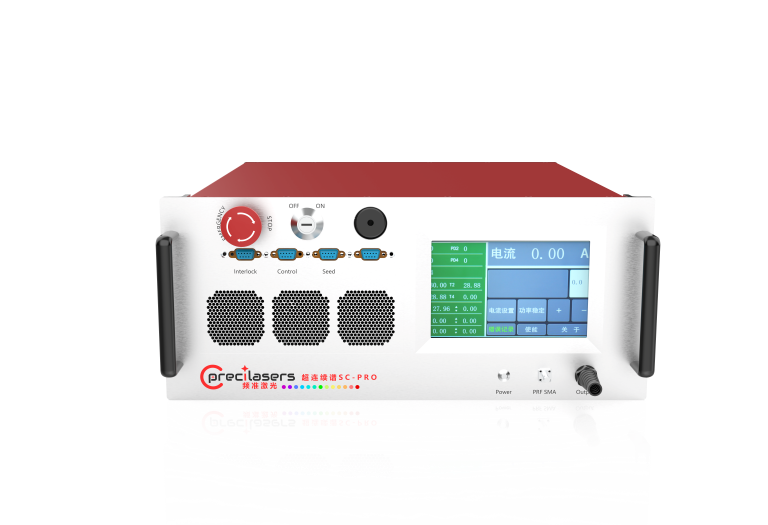

Supercontinuum Light Source
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Supercontinuum Light Source Launched by Precilasers, the supercontinuum light source covers a broad spectral range of 430nm-2400nm, with a maximum total output optical power of 20W. It is also equipped with a visual operating interface and supports real-time software monitoring, making it suitable for professional fields such as optical coherence tomography, optical communication, and precision measurement.
Features
- Total output optical power
- Visible light power
- Spectral range
- Repetition rate
- Optional
- Hz Visual operating interface
- Real
Applications
- Optical Coherence Tomography Optical
- Communication Spectroscopy Precision Measurement
- Environmental Monitoring National Defense
- Security Optical Microscopy Technology
| Models | Preci-SuperC-XX (1) |
|---|---|
| Visible power (430-960nm) | 3W |
| Power spectral density | >2mW/nm@532-900nm |
| Total power | 10W |
| Repetition rate | 80MHz |
| Polarization | Unpolarized |
| Beam quality | M 2 ≤ 1.1@532-900nm |
| Beam spot diameter | ≈ 0.7±0.3mm@ 532nm, @ 633nm ≈ 1.2±0.3mm@780nm, @ 900nm |
| Beam spot circularity | ≥90%@532nm-900nm |
| Collimated output beam pointing angle | ≤1mrad |
| Power stability | rms≤1% @ 24h, 1s |
| Warm-up stabilization time (from power-on to stable power) | ≤30min |
| Computer interface | USB2.0/RS485-422 |
| Operating voltage | 110-240VAC, 50/60Hz |
| Power consumption | 300W |
| Safety interlock | Interlock |
| External bus interface | DB9 |
| Display screen | Touchscreen |
| Cooling method | Water cooling/Air cooling |
| Water-cooled chassis | Optional |
| Fiber output length | 1.5m armored fiber |
| Output method | Fiber collimator |
| Operating temperature | 18-30°C |
| Storage temperature | -10-55°C |
| Dimensions | 420mm*420mm*200mm |
| Weight | 30kg |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
