Linear Film Polarizers FLP13-VIS-M
FLP13-VIS-M$122.55
In Stock
Key Specifications
Wavelength
400.0nm
Transmittance
0.5%
Design Tools
View all 49 calculators →RoHS
REACH
Linear Film Polarizers — Model FLP13-VIS-M
Mounted linear film polarizer, 400–700 nm, Ø12.7 mm housing, extinction ratio >5000:1, ±20° AOI
Overview

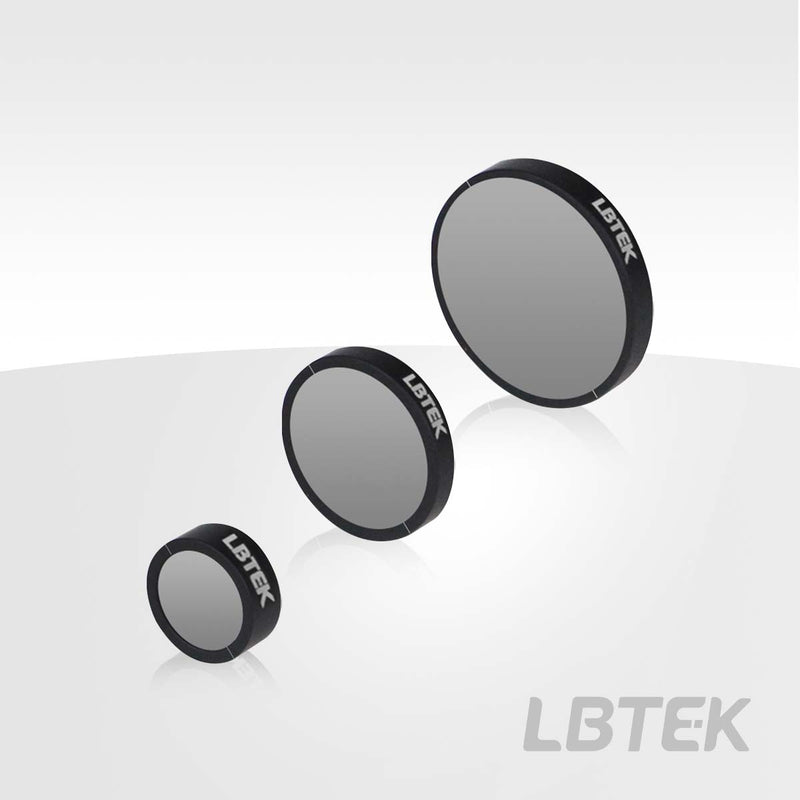

The Linear Film Polarizer (FLP) consists of front and rear N-BK7 glass substrates with a linear polarizing film sandwiched in between, offering two mounting options: retaining ring mount and rotation mirror mount. Across the entire component surface, the transmission axis direction remains consistent, making it suitable for generating linearly polarized light beams with a specific polarization direction while ensuring a high extinction ratio and a wide incidence angle range. Linear film polarizers are available with operating wavelengths of 400–700 nm and 700–1700 nm, and flexible customization of parameter specifications is supported to meet user requirements.
Key Features
- Linear polarizing film / N-BK7 window in sandwich flat structure with mechanical housings
- Uniform transmission direction within the component plane
- Capable of generating linearly polarized light beams with specific polarization directions
- High extinction ratio (>5000:1 at peak range), wide incidence angle range of ±20°
- Operating wavelength: 400–700 nm (VIS) and 700–1700 nm (NIR)
- Custom services for parameter specifications available
Applications
- Laser beam polarization control and analysis
- Optical isolation and attenuation (crossed-polarizer configuration)
- Polarization microscopy and imaging systems
- Spectroscopy and interferometry setups
- Quality inspection and materials characterization
| Housing Diameter | Ø12.7 mm |
| Housing Thickness | 4.7 mm |
| Operating Wavelength | 400 nm-700 nm |
| Angle of Incidence (AOI) | ±20 ° |
| Base Material | N-BK7 |
| Clear Aperture | Ø10 mm |
| Surface Quality (Scratch/Dig) | 40/20 |
| Operating Temperature | 0-60 ℃ |
| Transmission Axis Accuracy | ±1 ° |
| AR Coating | Ravg＜0.5 %@400-700 nm |
| Transmitted Light Deflection (without mechanical housing installed) | ＜1 arcmin |
| Transmitted Light Deflection (with mechanical housing installed) | ＜10 arcmin |
| Extinction Ratio (Tp:Ts) | >500:1@400-450 nm >5000:1@450-700 nm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

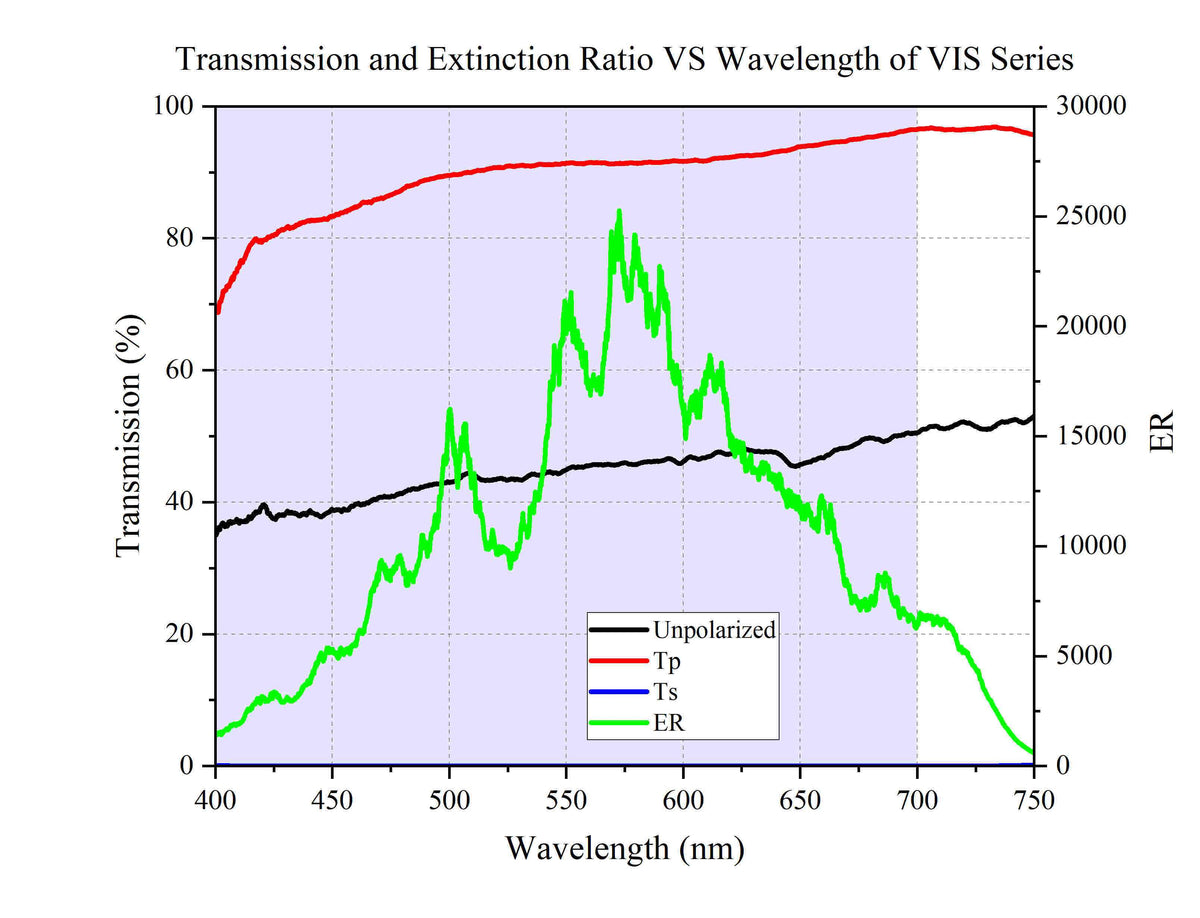

Curve - Transmission and Extinction Ratio VS Wavelength of VIS Series

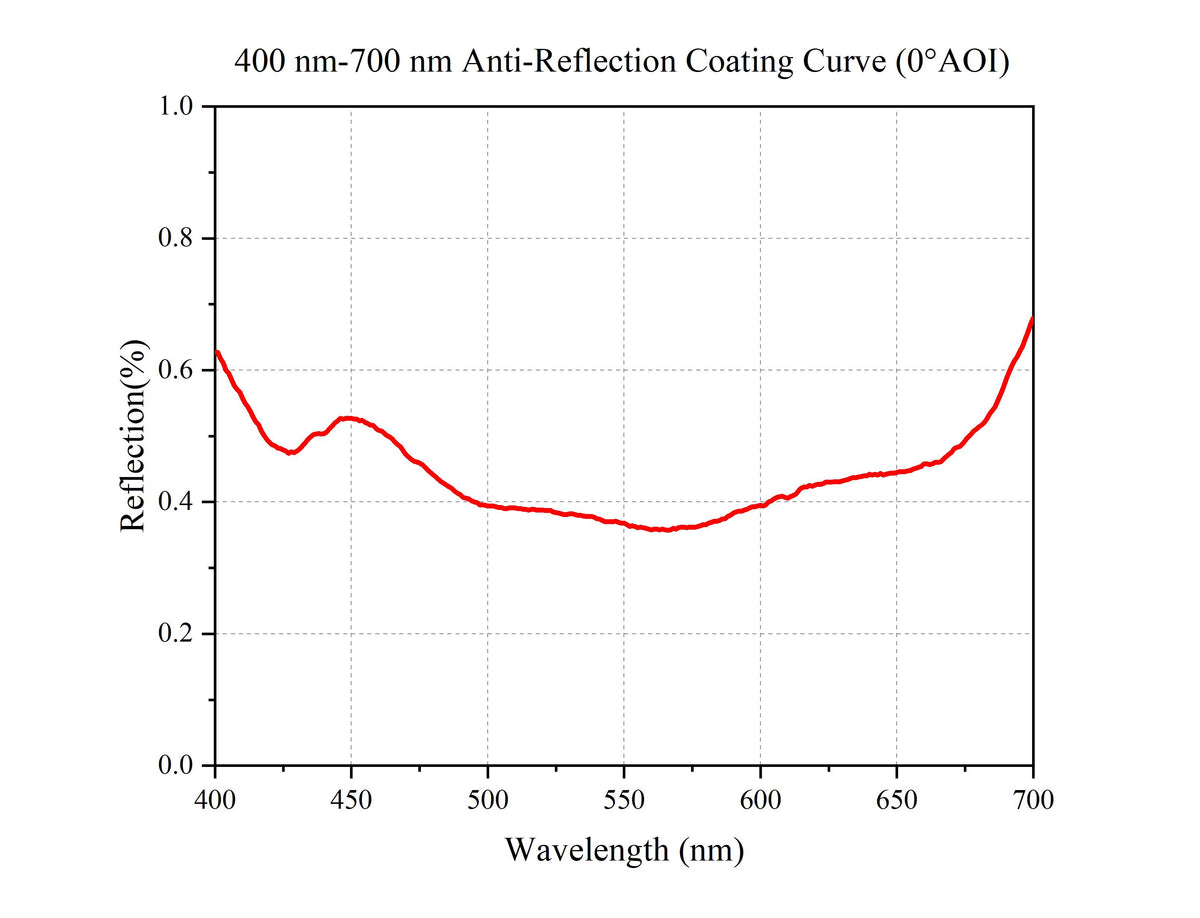

400 nm-700 nm Anti-Reflection Coating Curve (0°AOI)

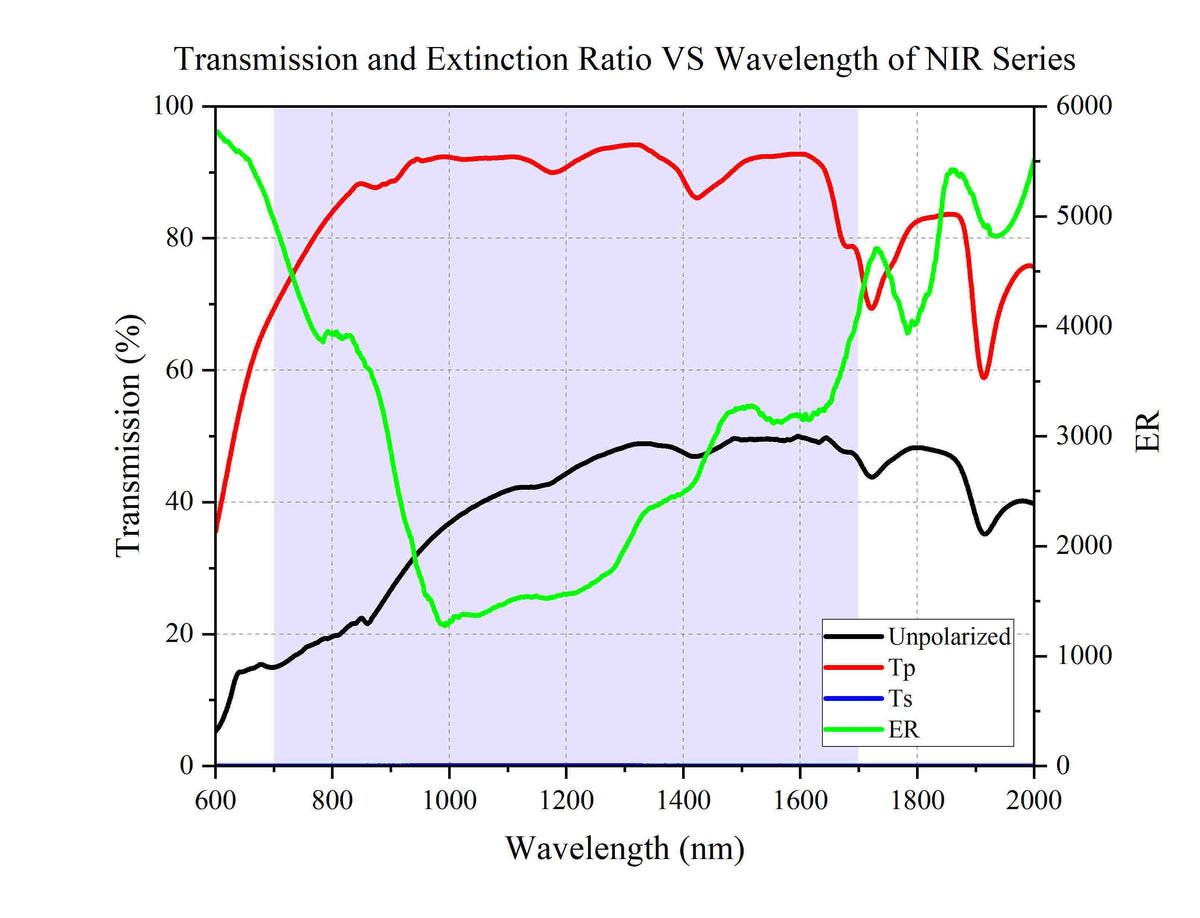

Curve - Transmission and Extinction Ratio VS Wavelength of NIR Series

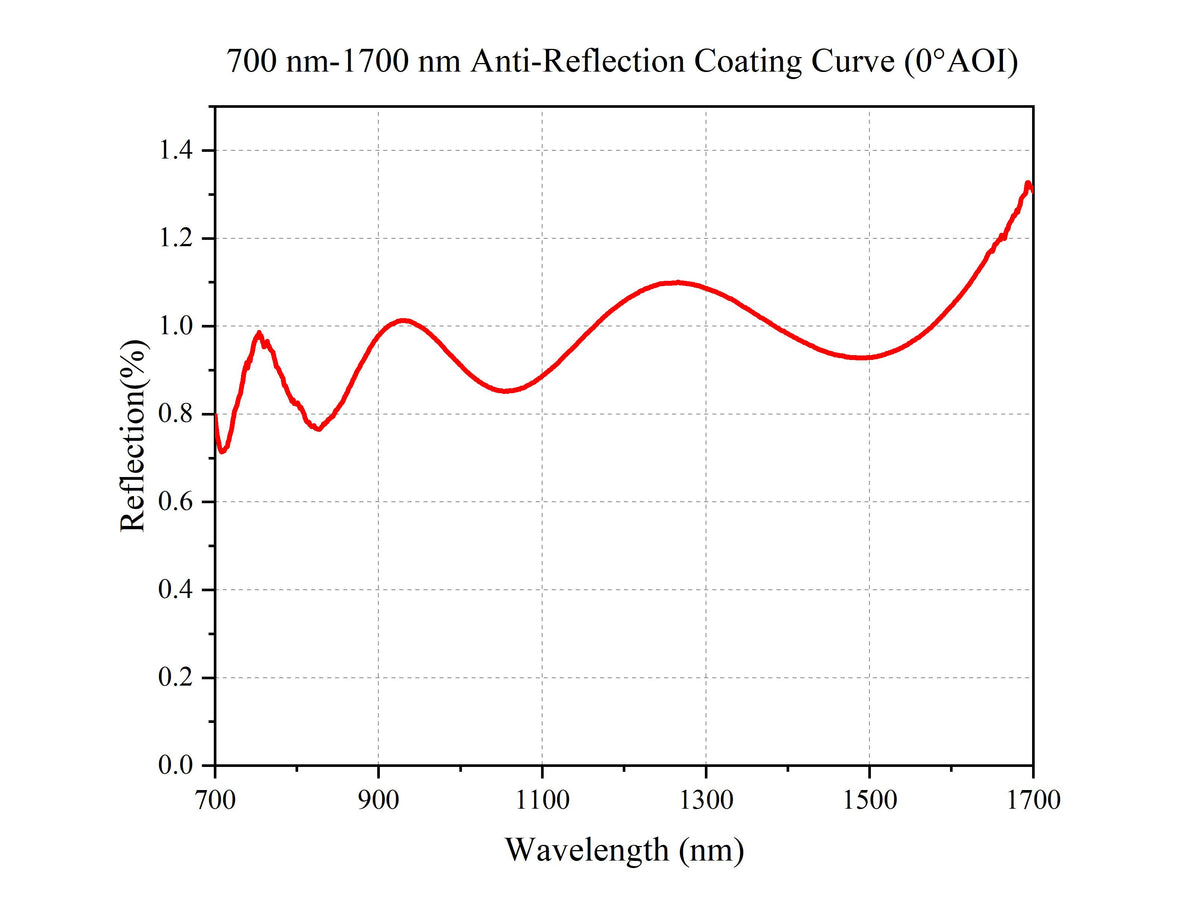

700 nm-1700 nm Anti-Reflection Coating Curve (0°AOI)
Product Family: Linear Film Polarizers (14 variants)
| Product | SKU | Housing Diameter | Housing Thickness | Operating Wavelength | |
|---|---|---|---|---|---|
| Linear Film Polarizers FLP-VIS-50 |
FLP-VIS-50
| 50×50 mm | 0.1 mm | 400 nm-700 nm | View |
| Linear Film Polarizers FLP-VIS-100 |
FLP-VIS-100
| 100×100 mm | 0.1 mm | 400 nm-700 nm | View |
| Linear Film Polarizers FLP51-NIR-CRM |
FLP51-NIR-CRM
| — | — | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP25-NIR-CRM |
FLP25-NIR-CRM
| — | — | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP13-NIR-CRM |
FLP13-NIR-CRM
| — | — | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP51-VIS-CRM |
FLP51-VIS-CRM
| — | — | 400 nm-700 nm | View |
| Linear Film Polarizers FLP25-VIS-CRM |
FLP25-VIS-CRM
| — | — | 400 nm-700 nm | View |
| Linear Film Polarizers FLP13-VIS-CRM |
FLP13-VIS-CRM
| — | — | 400 nm-700 nm | View |
| Linear Film Polarizers FLP13-NIR-M |
FLP13-NIR-M
| Ø12.7 mm | 4.7 mm | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP25-NIR-M |
FLP25-NIR-M
| Ø25.4 mm | 5.0 mm | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP51-NIR-M |
FLP51-NIR-M
| Ø50.8 mm | 4.7 mm | 700 nm-1700 nm | View |
| Linear Film Polarizers FLP13-VIS-M Current |
FLP13-VIS-M
| Ø12.7 mm | 4.7 mm | 400 nm-700 nm | |
| Linear Film Polarizers FLP25-VIS-M |
FLP25-VIS-M
| Ø25.4 mm | 4.3 mm | 400 nm-700 nm | View |
| Linear Film Polarizers FLP51-VIS-M |
FLP51-VIS-M
| Ø50.8 mm | 4.7 mm | 400 nm-700 nm | View |
