UV Fused Silica Windows, AR Coating: 700 nm-1100 nm OW23-1064
OW23-1064$221.08
In Stock
Key Specifications
Wavelength
1064.0nm
Diameter
50.8mm
Reflectance
0.25%
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

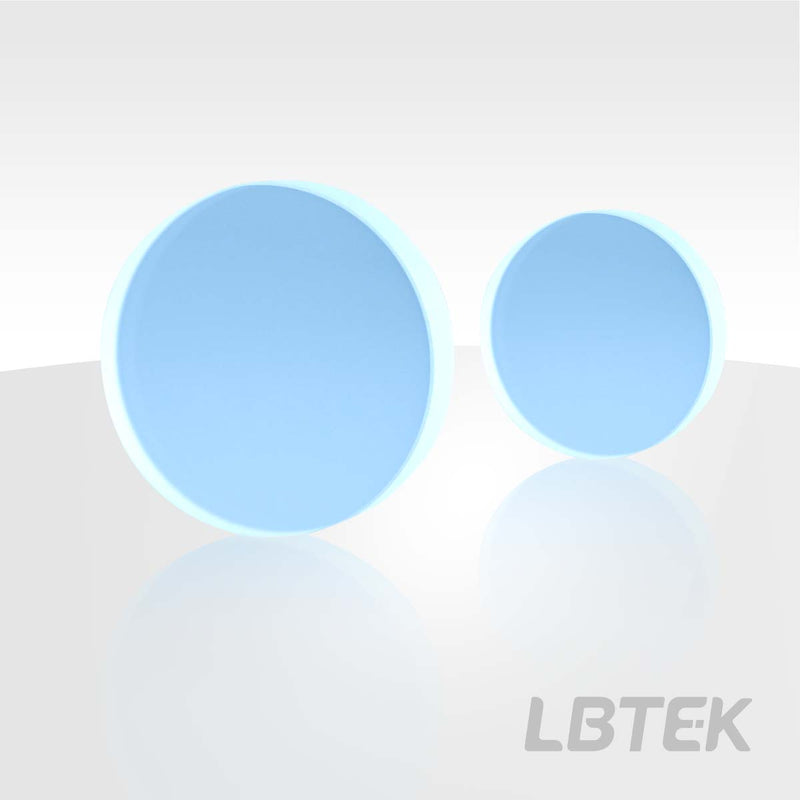

UV Fused Silica Windows, AR Coating: 700 nm-1100 nm — Model OW23-1064
Operating wavelength 1064, Ø50.8 mm, substrate UV Fused Silica.
Product Description
- Optical Material: UV Fused Silica
- Operating Wavelength: 700 nm-1100 nm
LBTEK offers precision UV fused silica windows with excellent transmission performance from the ultraviolet to near-infrared spectrum. For details, please refer to the transmittance curve. LBTEK provides uncoated windows, as well as anti-reflection coated windows for 250 nm-400 nm, 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm wavelength ranges. Various thicknesses are available, and custom services for special sizes and coating specifications can also be provided. For inquiries, please contact technical support.
UV Fused Silica Windows, AR Coating: 700 nm-1100 nm
- Optical Material: UV Fused Silica
- Operating Wavelength: 700 nm- 1100 nm
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 1064 |
| Thickness | 5.0 mm |
| Diameter | 50.8 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

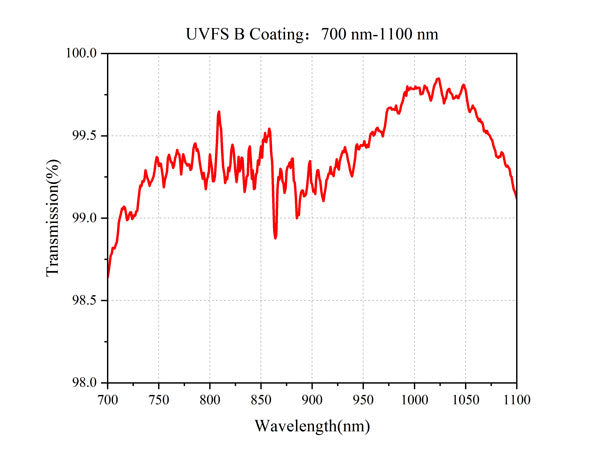

Curve - UVFS-B-Coating：700-nm-1100-nm

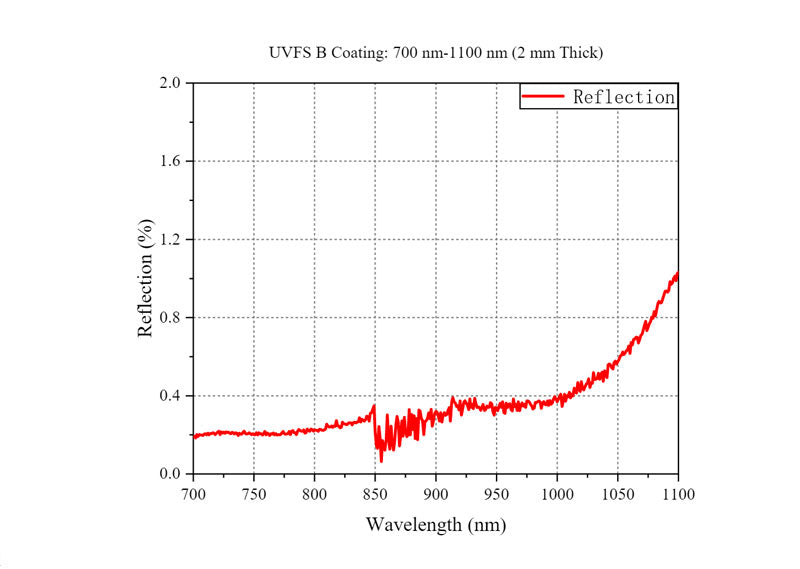

Curve - UVFS B
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: UV fused silica window, AR coating: 700 nm-1100 nm (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| UV Fused Silica Windows, AR Coating: 700 nm-1100 nm OW21-B |
OW21-B
| 12.7 mm | 90% CA | 700 nm-1100 nm | View |
| UV Fused Silica Windows, AR Coating: 700 nm-1100 nm OW22-B |
OW22-B
| 25.4 mm | 90% CA | 700 nm-1100 nm | View |
| UV Fused Silica Windows, AR Coating: 700 nm-1100 nm OW23-1064 Current |
OW23-1064
| 50.8 mm | 90% CA | 1064 |
