UV Fused Silica Windows, Uncoated, 200 nm-2.1μm OW22
OW22$124.77
In Stock
Key Specifications
Wavelength
200.0nm
Diameter
25.4mm
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

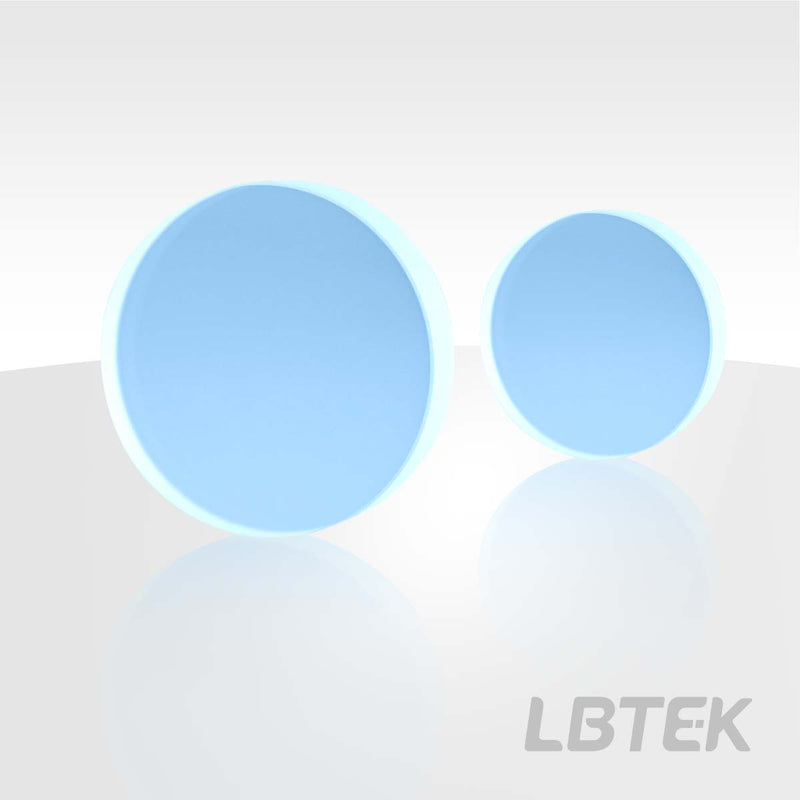

UV Fused Silica Windows, Uncoated, 200 nm-2.1μm — Model OW22
Operating wavelength 200 nm-2.1 μm, Ø25.4 mm, substrate UV Fused Silica.
Product Description
- Optical Material: UV Fused Silica
- Operating Wavelength: 200 nm-2.1 μm
LBTEK offers precision UV fused silica windows with excellent transmission performance from the ultraviolet to near-infrared spectrum. For details, see the transmittance curve. LBTEK provides uncoated windows, as well as anti-reflection coated windows for 250 nm-400 nm, 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm wavelength ranges. Various thicknesses are available, and customized services for special sizes and coating specifications can also be provided. For inquiries, please contact LBTEK Technical Support.
UV Fused Silica Windows, Uncoated, 200 nm-2.1μm
- Optical Material: UV Fused Silica
- Operating Wavelength: 200 nm-2.1 μm
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 200 nm-2.1 μm |
| Thickness | 5.0 mm |
| Diameter | 25.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve 1
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: UV Fused Silica Windows, Uncoated, 200 nm-2.1 μm (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| UV Fused Silica Windows, Uncoated, 200 nm-2.1μm OW21 |
OW21
| 12.7 mm | 90% CA | 200 nm-2.1 μm | View |
| UV Fused Silica Windows, Uncoated, 200 nm-2.1μm OW22 Current |
OW22
| 25.4 mm | 90% CA | 200 nm-2.1 μm |
