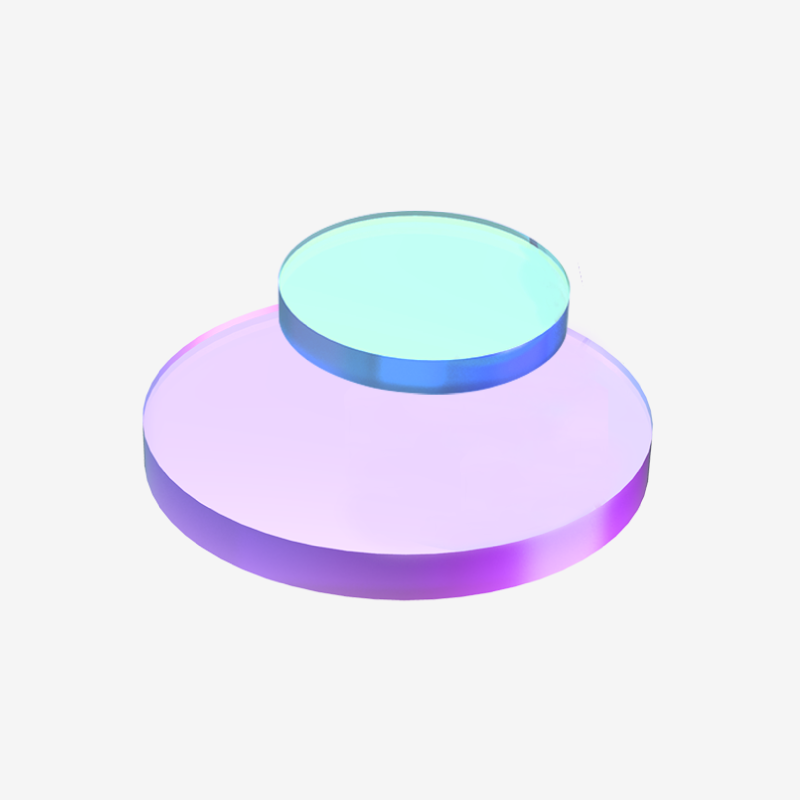

UV/Visible Chirped Mirror 100fs²
PC1705-L-100-25$1,673.00
In Stock
Key Specifications
Wavelength
982.5nm
Diameter
100.0mm
LIDT
0.2J/cm²
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Gaussian Beam Calculator
Model beam propagation through your optical system
LIDT Calculator
Verify damage threshold for your laser parameters
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview
The UV/Visible Chirped Mirror 100fs² (Ultrafast Innovations PC1705) is a positive-dispersion (stretcher) dispersive mirror engineered for ultrafast laser dispersion management, providing +100 fs² of group delay dispersion per bounce across the 715–1250 nm operating bandwidth.
With +100 fs²/bounce of positive group delay dispersion, this mirror is intended for chirped-pulse amplification stretcher stages or upstream pulse engineering where controlled positive chirp is required, complementing downstream compressor optics.
Applications
- CPA stretcher mirror replacement in pulse-stretching stages
- Regenerative amplifier seeding pulse engineering
- Sub-nanosecond pulse stretching for chirped pulse amplification
- Spectral phase pre-shaping for ultrafast amplifier chains
Construction & Performance
Manufactured on a 100 mm diameter × 25 mm thick UVFS substrate with dielectric multilayer coating, R>99.7%@715-1250nm. The mirror operates at 5° angle of incidence with p-polarized light. The coating provides exceptional layer density, low absorption losses, and long-term spectral stability — characteristics required for dependable performance in fs-laser oscillator and amplifier chains.
The 0.2 J/cm² damage threshold (specified at 800nm) supports typical ultrafast laser fluences. Compatible with research-grade and industrial fs-laser systems requiring controlled dispersion at this operating wavelength.
Storage & Handling
Operate at 25 °C, 40–60% RH. Clean only with >99% optical-grade ethanol and lint-free lens tissue using single-pass drag method. Avoid abrasive cloths and water.
| Center Wavelength | 982.5 nm |
| Wavelength Range | 715.0 – 1250.0 nm |
| Polarization | P |
| Damage Threshold | 0.2 J/cm² (@800nm) |
| Diameter | 100.0 mm |
| Thickness | 25.0 mm |
| Substrate Material | UVFS |
| Coating Type | Dielectric Coating |
| Coating Wavelength | R>99.7%@715-1250nm |
| Group Delay Dispersion | 100.0 fs² |
| Incidence Angle | 5.0° |
Low damage threshold detected (0.2 J/cm²).
For high-power applications, consider
WaveQuanta premium IBS-coated optics
with enhanced damage resistance.
No documents available for this product.
No CAD drawings available for this product.

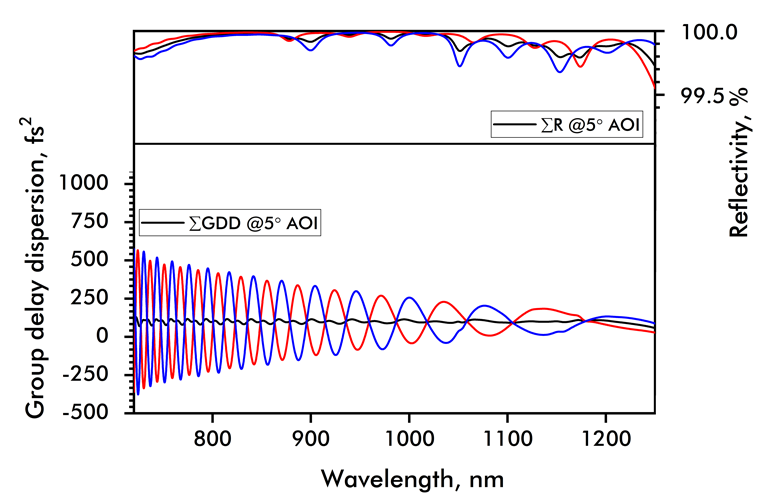

UV/Visible Chirped Mirror 100fs² PC1705-L-100-25 — reflectance curve
