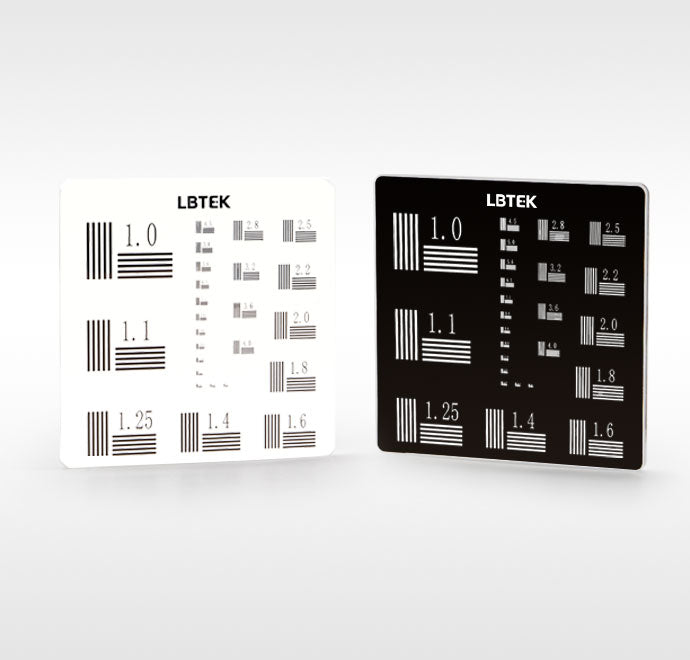

Variable Line Grating Test Target RTS2AE-N
Variable Line Grating Test Target — high-quality optical component.
Overview
LBTek precision-printed test target for resolution, alignment, and calibration measurements.
Key Features
- Specifications available on request
Applications
- Resolution testing
- MTF measurement
- System alignment
- Calibration
- Optical metrology
| Thickness | 2.0 mm (±0.2 mm) |
| Surface Flatness | ≤15 μm |
| Surface Quality (S-D) | 40/20 |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve - Transmission of Soda Lime Glass, 0°AOI
Curve - Chromium Coating, 5°AOI
Product Family: NBS 1963A Resolution Test Target (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Variable Line Grating Test Target RTS2AE-P |
RTS2AE-P
| — | — | — | View |
| Variable Line Grating Test Target RTS2AE-N Current |
RTS2AE-N
| — | — | — |
