N-BK7 Wedge Prisms CWP14
CWP14$51.51
In Stock
Key Specifications
Wavelength
350.0nm
Diameter
25.4mm
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

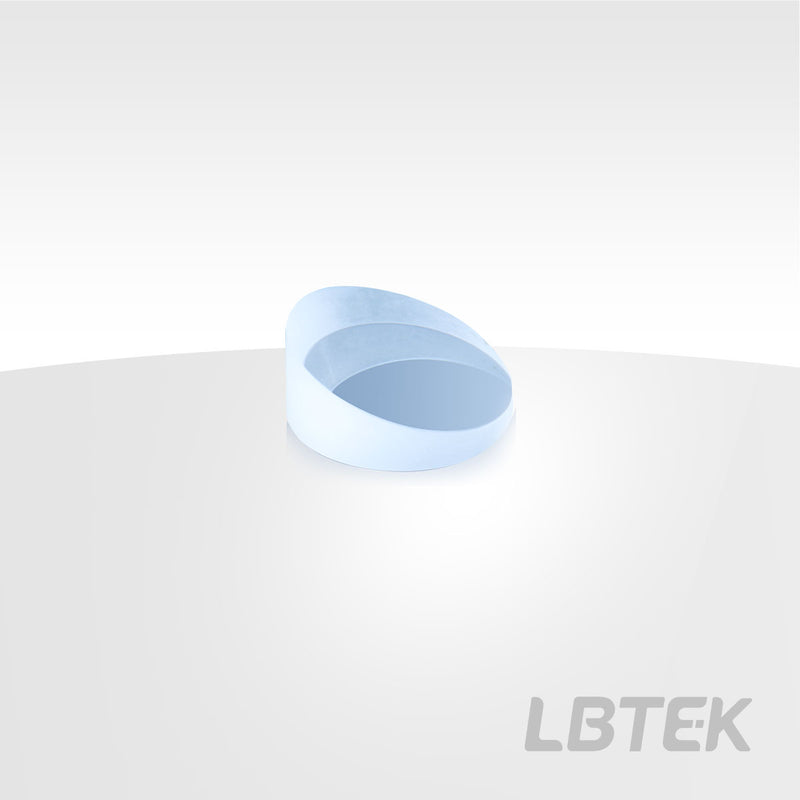

N-BK7 Wedge Prisms — Model CWP14
Operating wavelength 350 nm-2 µm, Ø25.4 mm, substrate N-BK7.
Product Description
- Optical Material: N-BK7
- Working Wavelength: 350 nm-2.0 μm
- Application: Beam deflection, scanning
LBTEK offers high-precision wedge prisms. Different wedge angles result in different beam deflection angles upon incident on the prism. Rotating the wedge prism can achieve circular beam scanning output. Combining two rotating wedge prisms and controlling their rotational speeds can achieve arbitrary beam scanning output shapes. LBTEK also offers three custom broadband anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1700 nm. For AR-coated prisms or other custom requirements, please contact LBTEK Technical Support.
N-BK7 Wedge Prisms
- Substrate Material: N-BK7
- Working Wavelength: 350 nm-2.0 μm
- Application: Beam Deflection
LBTEK offers high-precision N-BK7 wedge prisms with various wedge angles. Rotating wedge prisms can be used to deflect and scan beams.
| Clear Aperture | 90% CA |
| Operating Wavelength | 350 nm-2 µm |
| Thickness | :11.33 mm；:3.0 mm |
| Diameter | 25.4 mm |
| Design Wavelength | 633 nm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: Optics - Wedge Prisms (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| N-BK7 Wedge Prisms CWP10 |
CWP10
| 25.4 mm | 90% CA | 350 nm-2 µm | View |
| N-BK7 Wedge Prisms CWP11 |
CWP11
| 25.4 mm | 90% CA | 350 nm-2 µm | View |
| N-BK7 Wedge Prisms CWP14 Current |
CWP14
| 25.4 mm | 90% CA | 350 nm-2 µm | |
| N-BK7 Wedge Prisms CWP12 |
CWP12
| 25.4 mm | 90% CA | 350 nm-2 µm | View |
