What wavelength range does N-BK7 Wedge Prisms CWP12 support?

N-BK7 Wedge Prisms CWP12 operates at a center wavelength of 350.0 nm.

What are the physical dimensions of N-BK7 Wedge Prisms CWP12?

N-BK7 Wedge Prisms CWP12 dimensions: Diameter: 25.4 mm. Thickness: 8.11 mm.

What documentation is available for N-BK7 Wedge Prisms CWP12?

The following documents are available for download on the N-BK7 Wedge Prisms CWP12 product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is N-BK7 Wedge Prisms CWP12 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

N-BK7 Wedge Prisms CWP12

Name: N-BK7 Wedge Prisms CWP12
Brand: WaveQuanta
SKU: CWP12
Price: 51.51 SGD
Availability: InStock

CWP12

$51.51

In Stock

Key Specifications

Wavelength 350.0nm

Diameter 25.4mm

Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

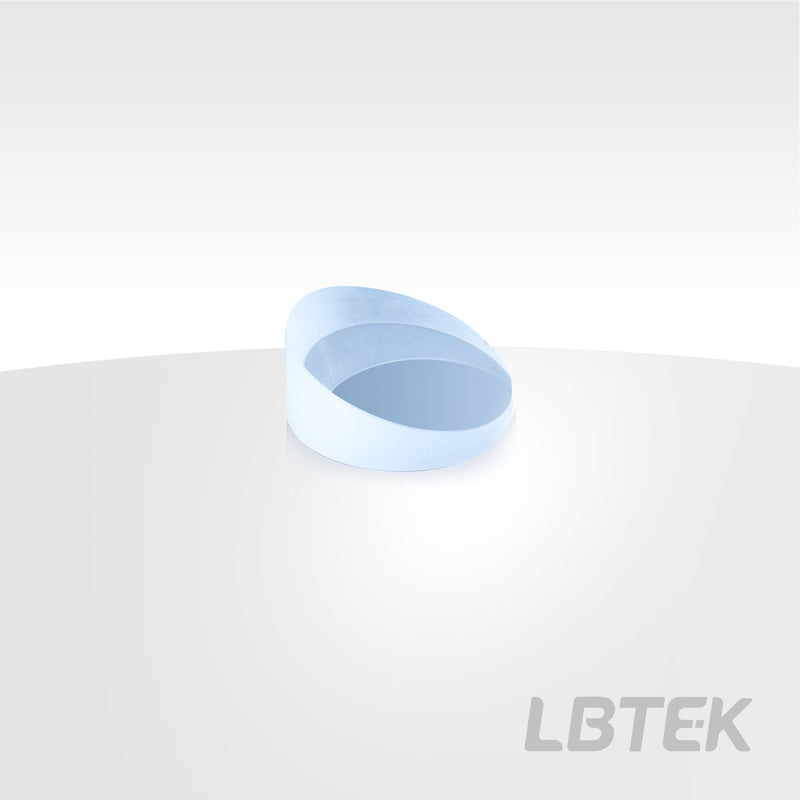

N-BK7 Wedge Prisms — Model CWP12

Operating wavelength 350 nm-2 µm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Working Wavelength: 350 nm-2.0 μm
Application: Beam deflection, scanning

LBTEK offers high-precision wedge prisms. Different wedge angles result in different beam deflection angles upon incident on the prism. Rotating the wedge prism can achieve circular beam scanning output. Combining two rotating wedge prisms and controlling their rotational speeds can achieve arbitrary beam scanning output shapes. LBTEK also offers three custom broadband anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1700 nm. For AR-coated prisms or other custom requirements, please contact LBTEK Technical Support.

N-BK7 Wedge Prisms

Substrate Material: N-BK7
Working Wavelength: 350 nm-2.0 μm
Application: Beam Deflection

LBTEK offers high-precision N-BK7 wedge prisms with various wedge angles. Rotating wedge prisms can be used to deflect and scan beams.

Clear Aperture	90% CA
Operating Wavelength	350 nm-2 µm
Thickness	:8.11 mm；:3.0 mm
Diameter	25.4 mm
Design Wavelength	633 nm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Optics - Wedge Prisms (4 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
N-BK7 Wedge Prisms CWP10	`CWP10`	25.4 mm	90% CA	350 nm-2 µm	View
N-BK7 Wedge Prisms CWP11	`CWP11`	25.4 mm	90% CA	350 nm-2 µm	View
N-BK7 Wedge Prisms CWP14	`CWP14`	25.4 mm	90% CA	350 nm-2 µm	View
N-BK7 Wedge Prisms CWP12 Current	`CWP12`	25.4 mm	90% CA	350 nm-2 µm
