OFB Series Fiber Optic Bracket OFB02-FPC2

Name: OFB Series Fiber Optic Bracket OFB02-FPC2
Brand: WaveQuanta
SKU: OFB02-FPC2
Price: 72.99 SGD
Availability: InStock

OFB02-FPC2

$72.99

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses

RoHS REACH

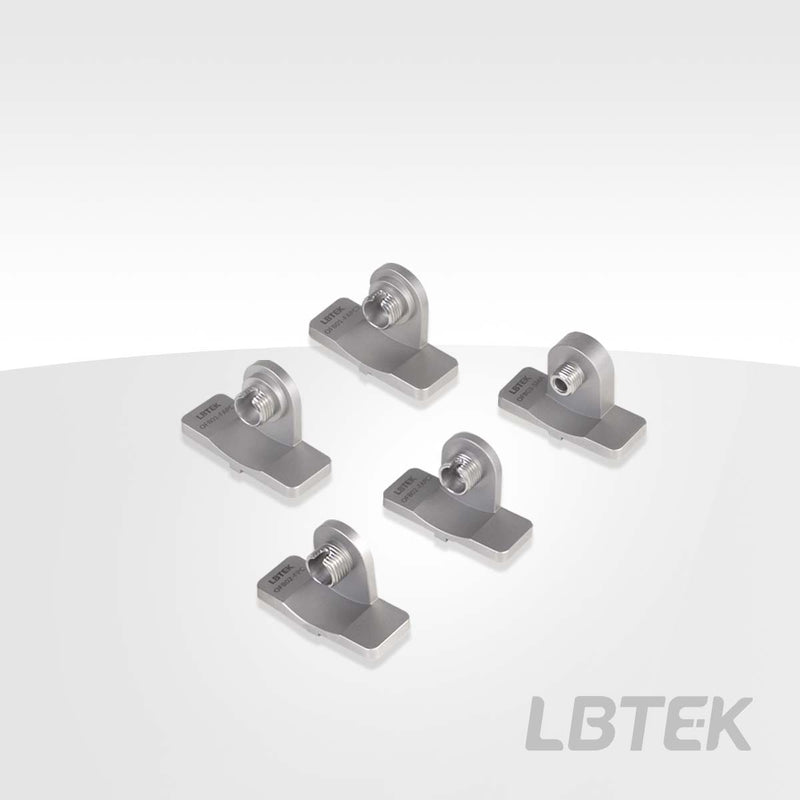

The LBTEK fiber optic bracket is designed for multi-axis translation stages, with the boss position installed in the groove of the stage's top plate for quick positioning. Installation and fixation methods include optional accessories such as FF05 fixing clips, CP20 clamping plates, and AC270M adjustable clamping plates (fixing accessories need to be purchased separately). Tighten the installation on both sides of the fiber optic mount to maintain the optical axis center height at 12.5 mm.

With FC/PC, FC/APC, SMA Interfaces
For Multi-Axis Translation Stages
Groove Positioning, Quick Installation

Connector Type

FC/PC (2mm narrow key)

No documents available for this product.

No CAD drawings available for this product.
