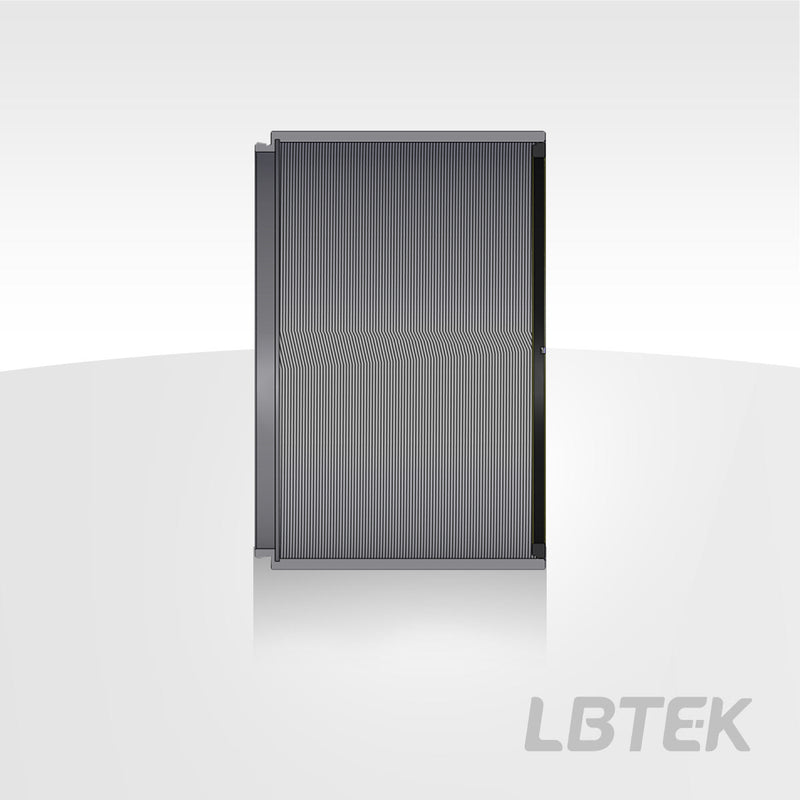

Your Trusted Partner For Optoelectronic Experiments! SM3-13A

SM3-13A
$53.54
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

Your Trusted Partner For Optoelectronic Experiments! — Model SM3-13A

✔ In Stock — Ships Today

Specifications

Parameter Value
Clear Aperture Ø71.4 mm
Clear Aperture Ø71.4 mm
Material 6061-T6 Aluminum Alloy
Surface Treatment Black anodized
Applicable optical element diameter Ø76.2 mm
Maximum applicable thickness of optical components 10.5 mm
Compatibility SM3
Rod mounting threaded hole SM3R/1 piece
Size (mm) 13 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
