Clear-Edge Optical Mounts

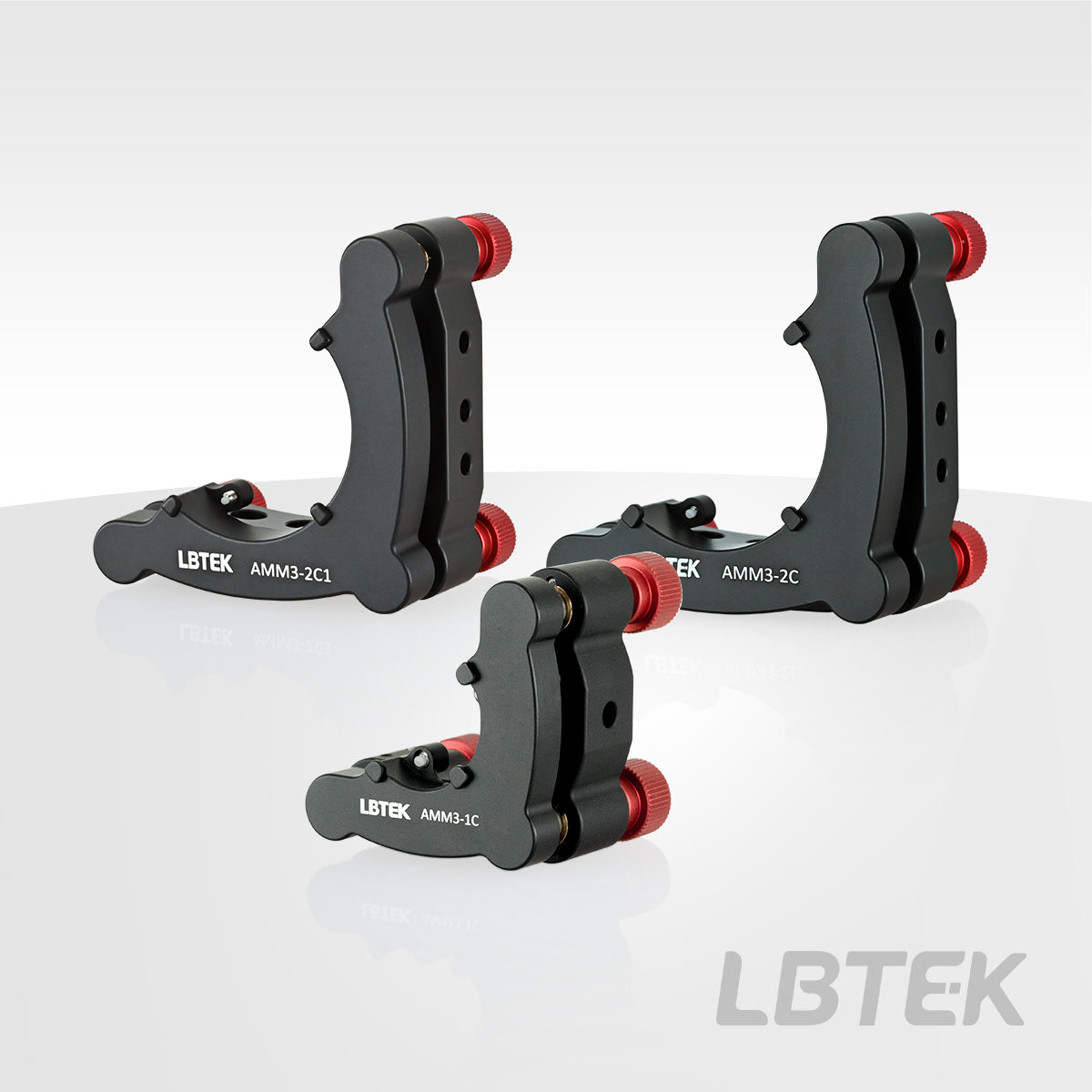

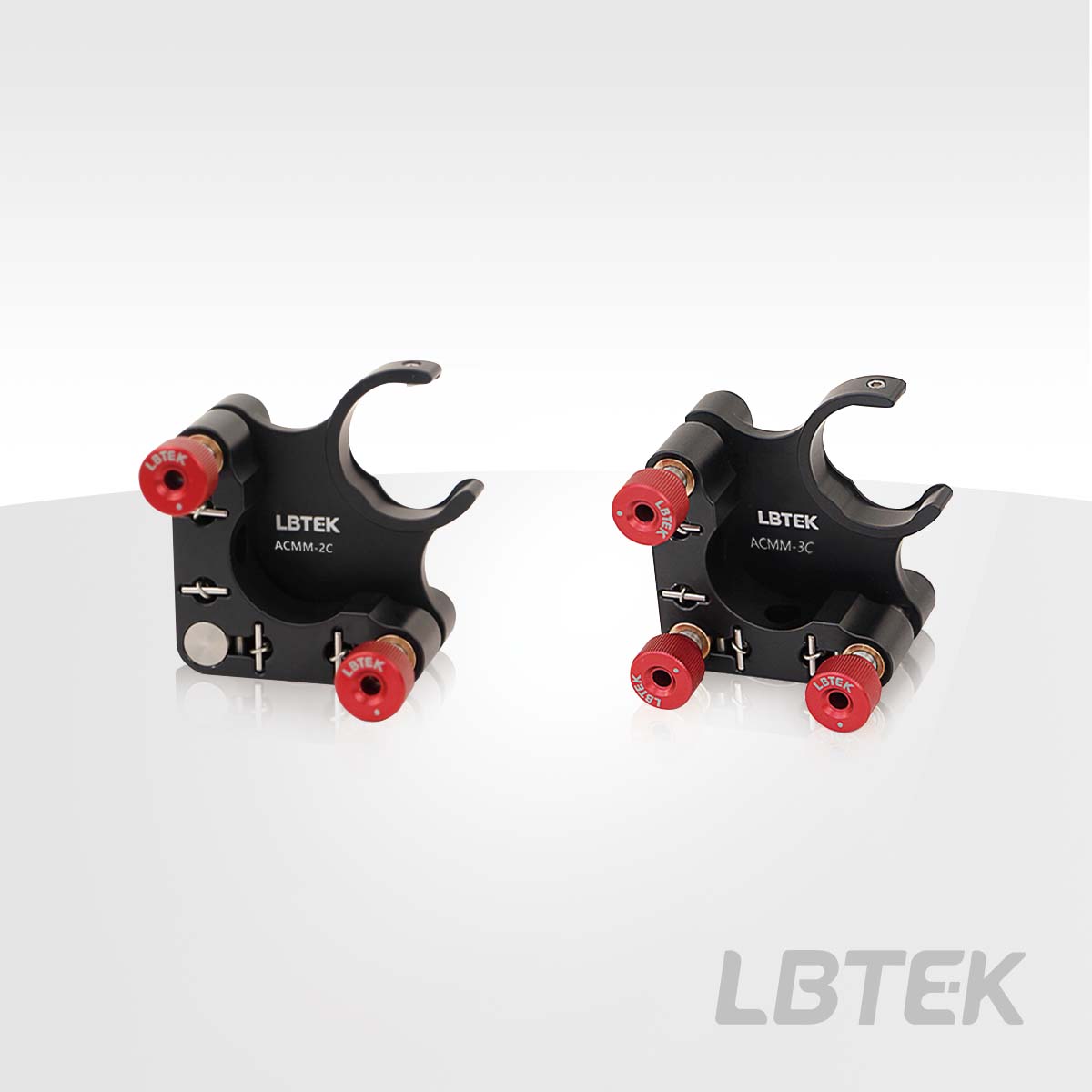

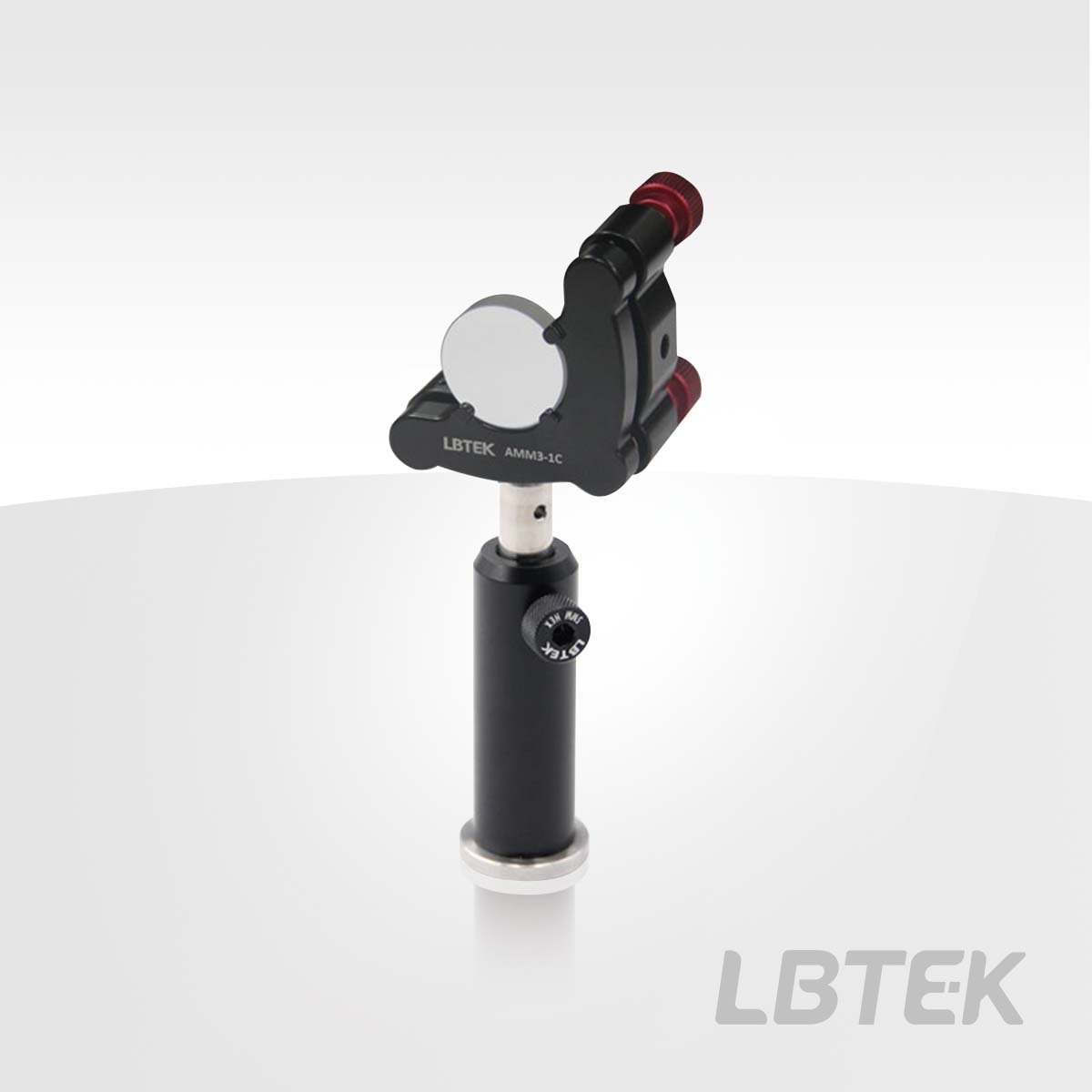

LBTEK Clear-Edge Optical Mount for optical components with diameters of 12.7 mm, 25.4 mm, and 50.8 mm, compatible with both left and right-handed installations. The optical components are secured via the mount's rubber-tipped screws, and the clear-edge design ensures unobstructed close-proximity beam reflection without obstruction from the mount's front plate. The AMM3 series mount offers an angular adjustment range of ±4°, featuring an increased backplate thickness for enhanced stability compared to LBTEK's Standard Two-Axis Optical Mounts. It includes three precision adjustment screw pairs, with threaded bushings equipped with a locking mechanism. These locking screws can be secured using a 2.0 mm hex key. The ACMM series mount provides a ±5° angular adjustment range and supports quick-replacement adjusters, accommodating various adjustment screws, micrometers, and electric actuators.
