1030nm Chirped Mirror PLW-DEG0.5-UVFS-12.7-5.0-GTI7

Overview

The 1030nm Chirped Mirror -600fs² from Optoman PLW-DEG0.5-UVFS-12.7-5.0-GTI7 is a chirped mirror engineered for ultrafast laser dispersion management across the 1010–1050 nm operating bandwidth.

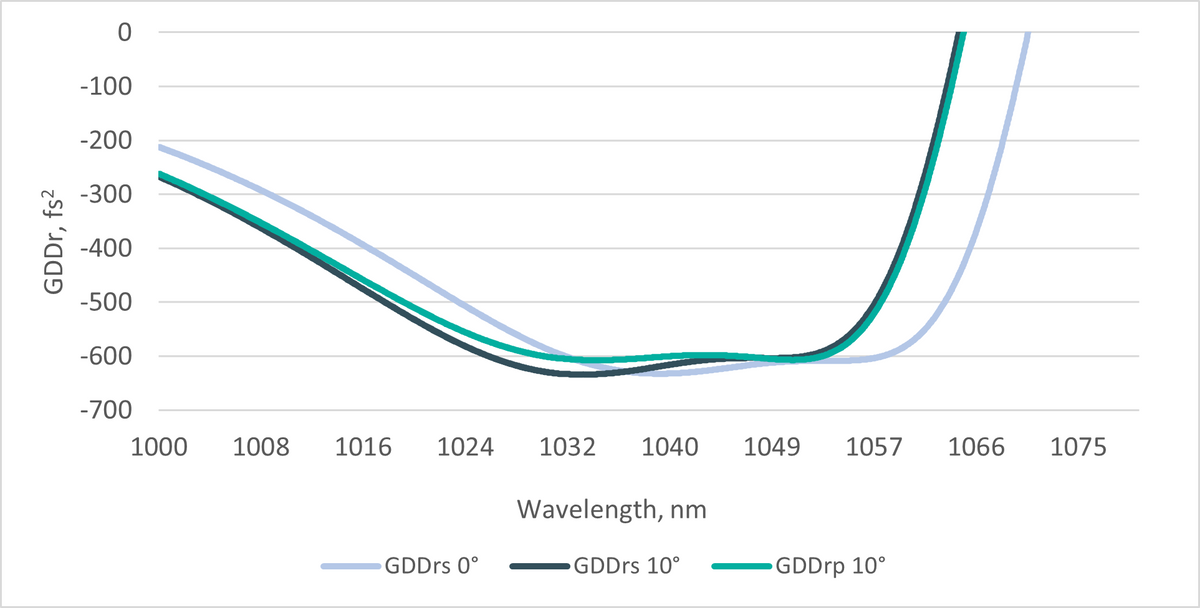

At -600 fs²/bounce, this mirror reduces total bounce count for typical CPA stretcher dispersion (~3000–10000 fs²) by 3–5× compared with low-GDD designs, lowering scatter loss and beam-quality degradation. Multilayer dielectric coating designed for simultaneous high reflectance and controlled phase response.

Applications

• industrial fs-laser dispersion management for materials processing
• ultrafast micromachining beam delivery
• high-average-power thin-disk multi-pass amplifiers
• harmonic generation feed optics (1030 → 515/343 nm)

Construction & Performance

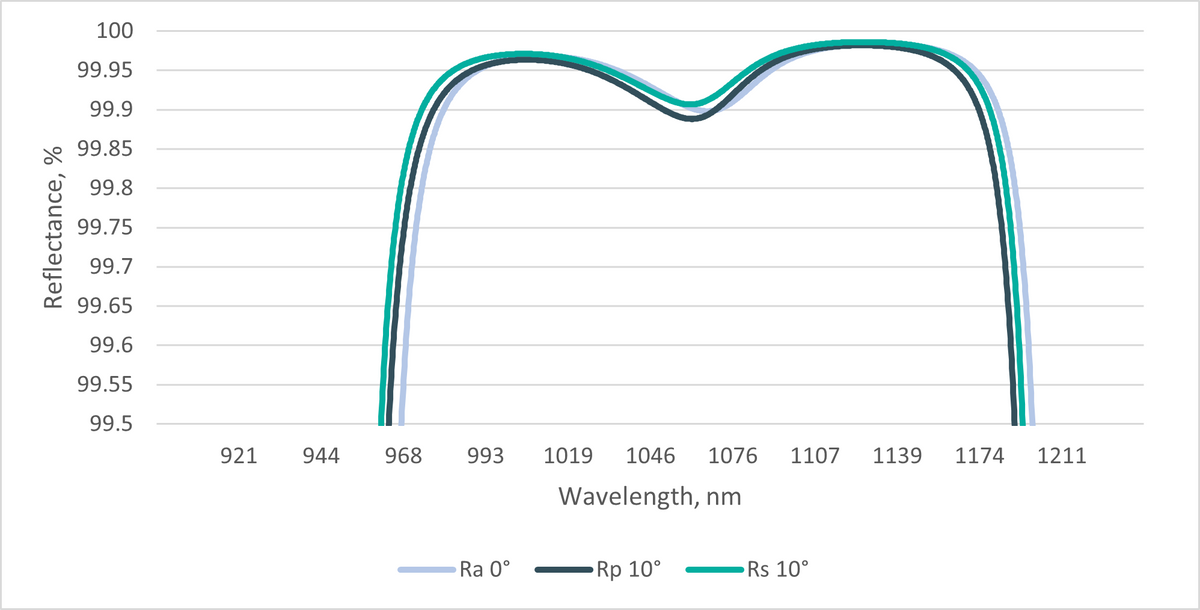

Manufactured on a 12.7 mm diameter × 5 mm thick UV fused silica (UVFS) substrate with ion beam sputtered (IBS) dielectric multilayer coating, >99.8% reflectance specified as Rp & Rs >99.8% @ 1010 - 1050 nm, AOI=0-10°. The mirror operates at 0° angle of incidence and is specified for both p- and s-polarization. Surface flatness <λ/10@633 nm over 10mm area, surface quality 10-5 s-d per ca. The IBS coating provides exceptional layer density, sub-ppm absorption losses, and long-term spectral stability — characteristics required for dependable performance in high-average-power amplifier chains.

1030 nm Yb-band IBS dielectric coating with optimized GDD flatness ensures consistent dispersion control under typical fs-laser operating conditions. Compatible laser systems include Yb:YAG thin-disk amplifiers, Yb:KGW oscillators (Light Conversion Pharos, Carbide), and Yb:fiber chirped pulse amplifiers.

Storage & Handling

Operate at 25 °C, 40–60% RH. Clean only with >99% optical-grade ethanol and lint-free lens tissue using single-pass drag method. Avoid abrasive cloths and water.
