1064nm Transmission Grating ≥98.5%

Name: 1064nm Transmission Grating ≥98.5%
Brand: Gitterwerk
SKU: 1534_120x22_6.35_H
Price: 9964.17 SGD
Availability: InStock

1534_120x22_6.35_H

$9,964.17

In Stock

Key Specifications

Wavelength 1064.0nm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

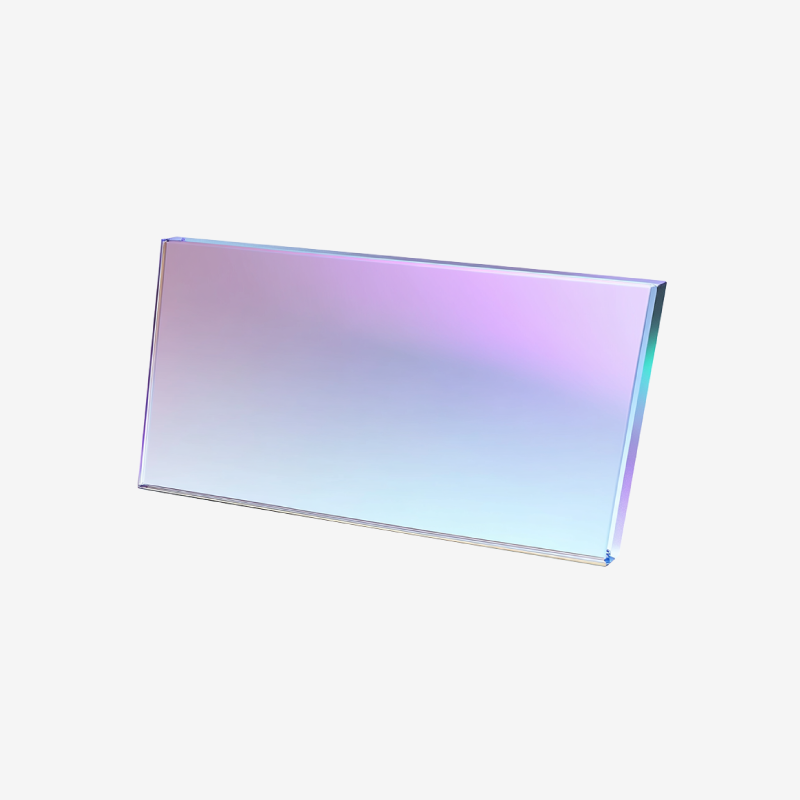

The 1064nm Transmission Grating ≥98.5% is a precision transmission grating from Gitterwerk, featuring a line density of 1739.10 l/mm.

It delivers ≥98.5 diffraction efficiency at 1064 nm for TE(s-pol) polarization.

It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.

Applications

Pulse compression and stretching
Chirped pulse amplification (CPA)
Spectral beam combining
Ultrafast and high-power laser systems

Construction & Performance

Dimensions: 122.0 x 24.0 x 6.35 mm
Length: 122.0 mm
Width: 24.0 mm
Height: 6.35 mm
Wavelength: 1064 nm
Grating period: 575nm
Line density: 1739.10 l/mm
Diffraction efficiency: ≥98.5
Clear aperture: 120.0 x 22.0mm
Polarization: TE(s-pol)

Storage & Handling

Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.

SKU: 1534_120x22_6.35_H

Dimensions	122.0 x 24.0 x 6.35mm
Length	122.0 mm
Width	24.0 mm
Height	6.35 mm
Wavelength	1064 nm
Grating Period	575nm
Line Density	1739.10 l/mm
Diffraction Efficiency	≥98.5%
Clear Aperture	120.0 x 22.0mm
Polarization	TE(s-pol)
