What wavelength range does 1075nm Transmission Grating ≥97.5% support?

1075nm Transmission Grating ≥97.5% operates at a center wavelength of 1075.0 nm.

What are the physical dimensions of 1075nm Transmission Grating ≥97.5%?

1075nm Transmission Grating ≥97.5% dimensions: Length: 17.0 mm. Width: 15.0 mm. Height: 6.35 mm.

Is 1075nm Transmission Grating ≥97.5% available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

Gitterwerk

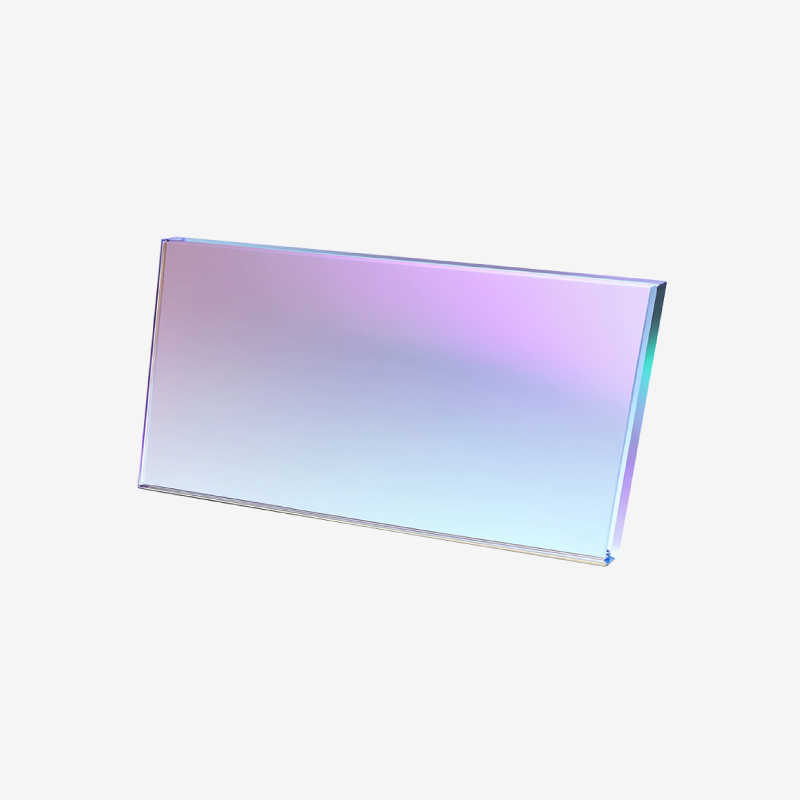

1075nm Transmission Grating ≥97.5%

Name: 1075nm Transmission Grating ≥97.5%
Brand: Gitterwerk
SKU: 1692_15x13_6.35_N
Price: 1006.05 SGD
Availability: InStock

1692_15x13_6.35_N

$1,006.05

In Stock

Key Specifications

Wavelength 1075.0nm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

The 1075nm Transmission Grating ≥97.5% is a precision transmission grating from Gitterwerk, featuring a line density of 1200.50 l/mm.

It delivers ≥97.5 diffraction efficiency at 1075 nm for TE(s-pol) polarization.

It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.

Applications

Pulse compression and stretching
Chirped pulse amplification (CPA)
Spectral beam combining
Ultrafast and high-power laser systems

Construction & Performance

Dimensions: 17.0 x 15.0 x 6.35 mm
Length: 17.0 mm
Width: 15.0 mm
Height: 6.35 mm
Wavelength: 1075 nm
Grating period: 833nm
Line density: 1200.50 l/mm
Diffraction efficiency: ≥97.5
Clear aperture: 15.0 x 13.0mm
Polarization: TE(s-pol)

Storage & Handling

Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.

SKU: 1692_15x13_6.35_N

Dimensions	17.0 x 15.0 x 6.35mm
Length	17.0 mm
Width	15.0 mm
Height	6.35 mm
Wavelength	1075 nm
Grating Period	833nm
Line Density	1200.50 l/mm
Diffraction Efficiency	≥97.5%
Clear Aperture	15.0 x 13.0mm
Polarization	TE(s-pol)

No documents available for this product.

No CAD drawings available for this product.

Product Family: 1040-1075nm Gratings (33 variants)

Product ▴▾	SKU	Dimensions ▴▾	Wavelength ▴▾	Line Density ▴▾
1075nm Transmission Grating ≥98.5%	`1692_90x30_6.35_H`	92.0 x 32.0 x 6.35mm	1075 nm	1200.50 l/mm	View
1075nm Transmission Grating ≥97.5% Current	`1692_15x13_6.35_N`	17.0 x 15.0 x 6.35mm	1075 nm	1200.50 l/mm
1064nm Transmission Grating ≥98.5%	`1534_120x22_6.35_H`	122.0 x 24.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥97.5%	`1534_98x13_6.35_N`	100.0 x 15.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥99.0%	`1534_48x48_6.35_X`	50.0 x 50.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥97.5%	`1534_48x28_6.35_N`	50.0 x 30.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥98.5%	`1534_30x30_6.35_H`	32.0 x 32.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥98.5%	`1534_28x18_6.35_H`	30.0 x 20.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥97.5%	`1534_28x18_6.35_N`	30.0 x 20.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥99.0%	`1534_12x8_6.35_X`	14.0 x 10.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥97.5%	`1534_12x8_6.35_N`	14.0 x 10.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥98.5%	`1534_12x8_6.35_H`	14.0 x 10.0 x 6.35mm	1064 nm	1739.10 l/mm	View
1064nm Transmission Grating ≥99.0%	`1235_98x33_6.35_X`	100.0 x 35.0 x 6.35mm	1064 nm	1600.00 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_43x13_3_X`	45.0 x 15.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥98.5%	`1587_43x13_3_H`	45.0 x 15.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1040nm Transmission Grating ≥99.0%	`1231_18x11_6.35_X`	20.0 x 13.0 x 6.35mm	1040 nm	1841.60 l/mm	View
1040nm Transmission Grating ≥98.5%	`1231_18x11_6.35_H`	20.0 x 13.0 x 6.35mm	1040 nm	1841.60 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_18x12_3_X`	20.0 x 14.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥91.8%	`1812_28x18_3_L`	30.0 x 20.0 x 3.0mm	1050 nm	1000.00 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_48x48_3_X`	50.0 x 50.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥98.5%	`1587_48x48_3_H`	50.0 x 50.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_37x35.3_3_X`	39.0 x 37.3 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥98.5%	`1587_37x35.3_3_H`	39.0 x 37.3 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_39x28_3_X`	41.0 x 30.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥99.0%	`1587_28.8x12_3_X`	30.8 x 14.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥98.5%	`1587_28.8x12_3_H`	30.8 x 14.0 x 3.0mm	1050 nm	1379.30 l/mm	View
1050nm Transmission Grating ≥97.5%	`1987_39x28_6.35_N`	41.0 x 30.0 x 6.35mm	1050 nm	1751.30 l/mm	View
1046nm Transmission Grating ≥98.5%	`1350_63x31_6.35_H`	65.0 x 33.0 x 6.35mm	1046 nm	1379.30 l/mm	View
1046nm Transmission Grating ≥99.0%	`1350_42x17_6.35_X`	44.0 x 19.0 x 6.35mm	1046 nm	1379.30 l/mm	View
1045nm Transmission Grating ≥97.5%	`1758_35x24.9_3_N`	37.0 x 26.9 x 3.0mm	1045 nm	1739.10 l/mm	View
1040nm Transmission Grating ≥99.0%	`1231_14.3x11_6.35_X`	16.3 x 13.0 x 6.35mm	1040 nm	1841.60 l/mm	View
1040nm Transmission Grating ≥98.5%	`1231_14.3x11_6.35_H`	16.3 x 13.0 x 6.35mm	1040 nm	1841.60 l/mm	View
1040nm Transmission Grating ≥97.0%	`1231_14.3x11_6.35_L`	16.3 x 13.0 x 6.35mm	1040 nm	1841.60 l/mm	View
