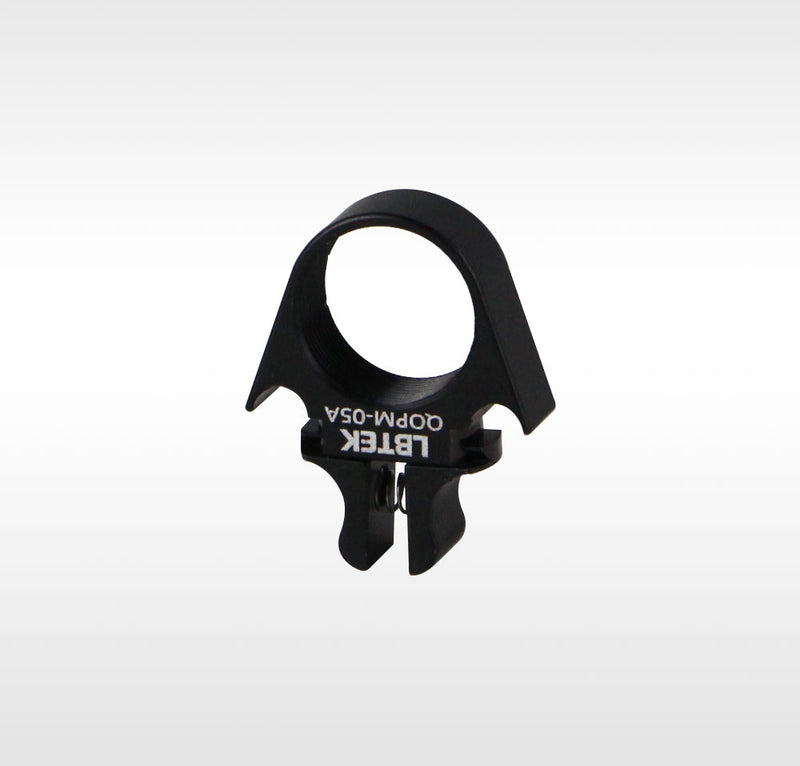

16mm Coaxial Quick-Release Mounting Plate — Model QOPM-05A
✔ In Stock — Ships Today
The 16 mm spring-loaded quick-release coaxial plate provided by LBTEK is compatible with 16 mm coaxial systems. It utilizes spring force and dovetail grooves to achieve quick-release functionality, allowing insertion from any direction of the coaxial system. The center features an SM05 threaded through-hole and comes with two SM05R retaining rings, capable of securing optical components with a diameter of 12.7 mm and a maximum thickness of 3.5 mm.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Central SM05 threaded hole, includes 2 SM05R retaining rings
- Quick-release mechanism with spring-loaded dovetail groove
- Accommodates optical elements up to 12.7 mm diameter and 3.5 mm thickness
Application
The QOPM-05A can be inserted from all directions of the coaxial system.
| Clear Aperture | Ø11.4 mm |
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 3.5 mm |
| Applicable optical element diameter | Ø12.7 mm |
| Mounting plate thickness | 7.0 mm |
| Maximum applicable thickness of optical components | SM05R Retaining Ring / 2 pcs |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 16mm Coaxial Quick-Release Mounting Plate (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 16mm Coaxial Quick-Release Mounting Plate ROPM05-6.4 |
ROPM05-6.4
| — | — | — | View |
| 16mm Coaxial Quick-Release Mounting Plate ROPM05-10.2 |
ROPM05-10.2
| — | — | — | View |
| 16mm Coaxial Quick-Release Mounting Plate QOPM-05A Current |
QOPM-05A
| — | — | — |
