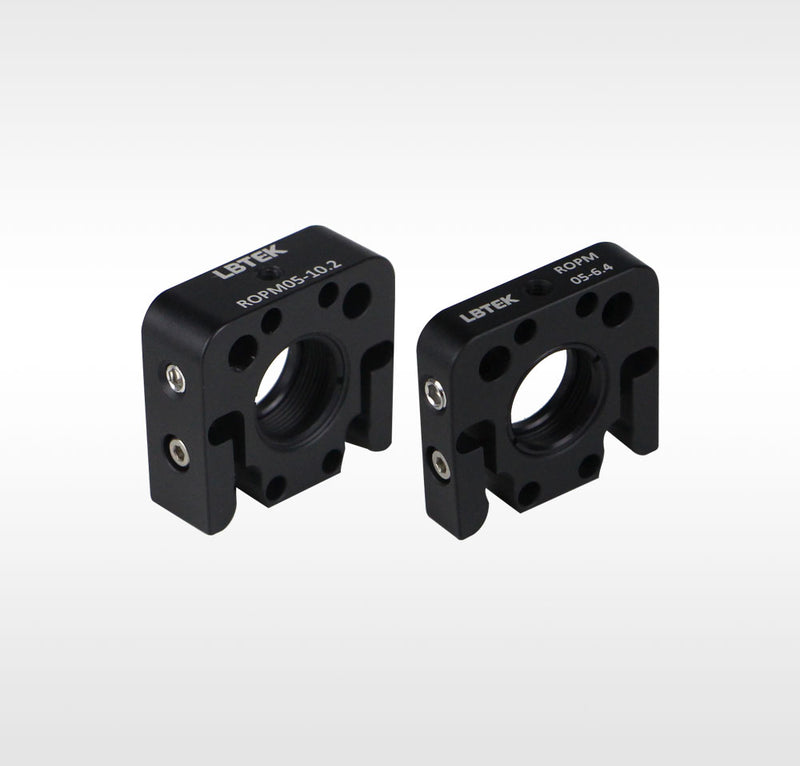

16mm Coaxial Quick-Release Mounting Plate ROPM05-6.4

The 16 mm removable flexible coaxial mounting plate provided by LBTEK is suitable for mounting Ø12.7 mm optical components with SM05 threaded through holes, secured using double retaining rings. The ROPM05-6.4 accommodates optical components with a maximum thickness of 3 mm, while the ROPM05-10.2 accommodates optical components with a maximum thickness of 6.8 mm. The bottom features an M3 threaded hole for connecting to a post, and four coaxial rod through holes compatible with 16 mm coaxial systems. The side is equipped with an M2 hex socket head cap screw and an M3 cup-point set screw for locking, which can be tightened using a 1.5 mm hex wrench. The flexible locking design facilitates easy insertion or removal of short coaxial system segments.
