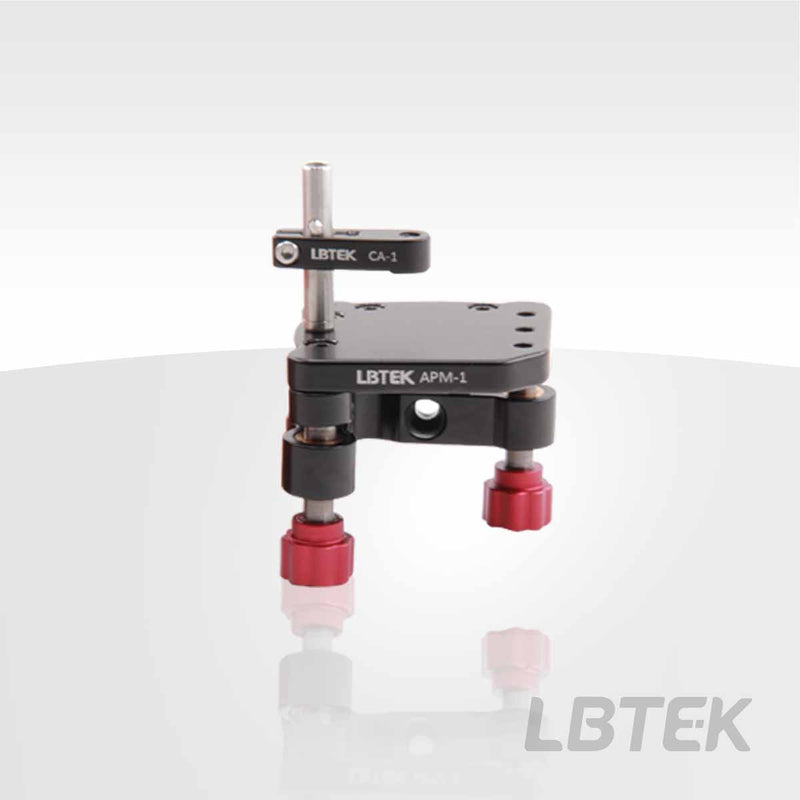

2-Dimensional Adjustable Mounting Platforms — Model APM-1
✔ In Stock — Ships Today
The LBTEK 2D Adjustable Mounting Platform is suitable for mounting optical components such as prisms and cubes. It comes with 2 adjusters, a platform size of 49 mm × 49 mm, and includes an adjustable pressure arm CA-1 (available for separate purchase), capable of clamping optical components with a maximum height of 26mm.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Includes adjustable pressure arm CA-1 (available for separate purchase), holds optical components up to 26 mm in height
- ±4° pitch and tilt adjustment, adjustment precision 0.4°/turn
Application
The right-angle prism is mounted on a two-dimensional adjustable mounting platform.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical components | Prism, cube, etc. |
| Adjustable pitch/yaw angle range | ±4° |
| Regulator Specifications / Quantity | M6 x 0.25 /2 pcs |
| Countersunk Hole Specification/Quantity | M4/2 pcs (with 1 M4 X10 pan head screw included) |
| Mounting Hole Pattern | M4/8 pcs |
| Assembly method | Left-handed system |
| Adjustment accuracy | 0.4°/rotation |
| Maximum clamping height | 24.7 mm |
Product Family: 2-Dimensional Adjustable Mounting Platforms (2 variants)
