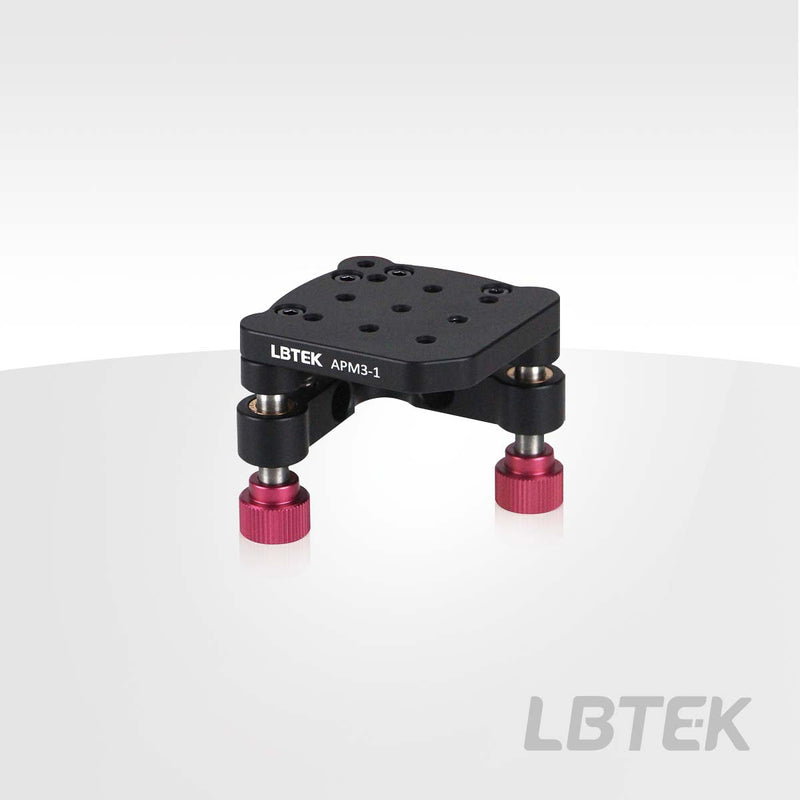

2-Dimensional Adjustable Mounting Platforms — Model APM3-1
✔ In Stock — Ships Today
The LBTEK Platform Mount is suitable for optical components such as prisms and cubes. It features 3 adjusters that enable ±4° pitch/yaw adjustment. The table size is 49 mm × 49 mm with 10 M4 through-holes, allowing it to be used with the adjustable clamping arm CA-1 to hold optical components with a maximum height of 24.7 mm. The mount platform is connected to the back plate with four M3×8 hex socket head cap screws, and two M4 countersunk holes on the side can be used to secure the mount.
Key Features
- Material: 6061-T6 aluminum alloy
- ±4° pitch/yaw adjustment with 0.4° per rotation
- Number of adjusters: three
Application
The optical delay-line mirror mount is on the platform.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical components | Prism, cube, etc. |
| Maximum clamping height | 24.7 mm |
| Countersunk Hole Specification/Quantity | M4/2 pcs (with 1 M4×10 pan head screw included) |
| Regulator Specifications / Quantity | M6×0.25 /3 pcs |
| Mounting Hole Pattern | M4/10 pcs |
| Adjustment accuracy | 0.4°/rotation |
| Assembly method | Left-handed system |
| Dimensions | 49 mm×49 mm |
| Adjustable pitch/yaw angle range | ±4° |
Product Family: 2-Dimensional Adjustable Mounting Platforms (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 2-Dimensional Adjustable Mounting Platforms APM3-1 Current |
APM3-1
| — | — | — | |
| 2-Dimensional Adjustable Mounting Platforms APM-1 |
APM-1
| — | — | — | View |
