30 mm Coaxial Beam Splitter Cube Mount — Model CC-12.7
✔ In Stock — Ships Today

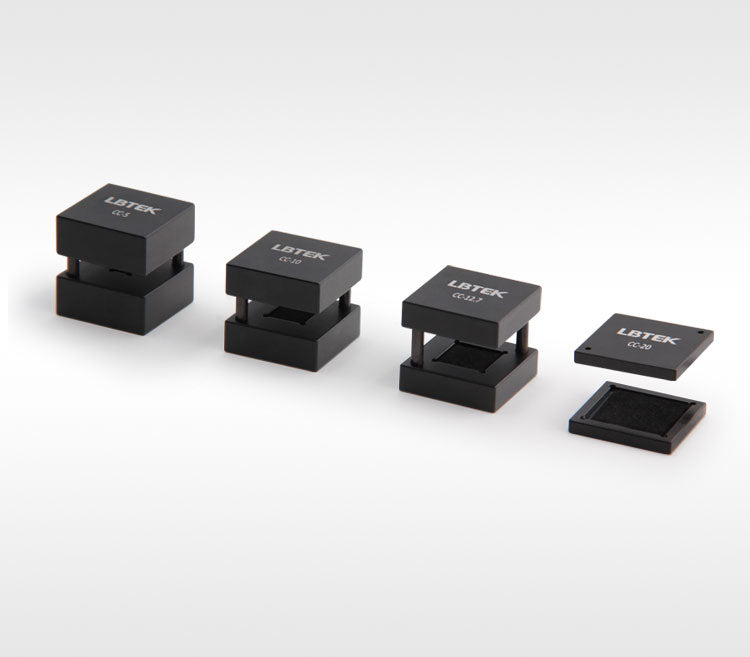

The LBTEK beam splitter cube adapter can use any side as the incident surface, with a clear aperture exceeding 80% of the entire area. The adapter consists of upper and lower parts, each featuring fixed-size square grooves lined with velvet on the inner side for mounting beam splitter cubes of specific dimensions. The beam splitter cube is sandwiched between the upper and lower parts to form a 25.4 mm cube, which can be secured in the 30 mm coaxial beam splitter cube mount CM-3.
Key Features
- Suitable for mounting 5 mm, 10 mm, 12.7 mm, and 20 mm beam splitter cubes
- Used in conjunction with CM-3
- Square groove for securing beam splitter cubes
Application
Installation Diagram of Beam Splitter Cube Adapter
| Clear Aperture | 80.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Coaxial Beam Splitter Cube Mount (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Coaxial Beam Splitter Cube Mount CC-5 |
CC-5
| — | — | — | View |
| 30 mm Coaxial Beam Splitter Cube Mount CC-10 |
CC-10
| — | — | — | View |
| 30 mm Coaxial Beam Splitter Cube Mount CC-12.7 Current |
CC-12.7
| — | — | — | |
| 30 mm Coaxial Beam Splitter Cube Mount CC-20 |
CC-20
| — | — | — | View |
| 30 mm Coaxial Beam Splitter Cube Mount CM-3 |
CM-3
| — | — | — | View |
