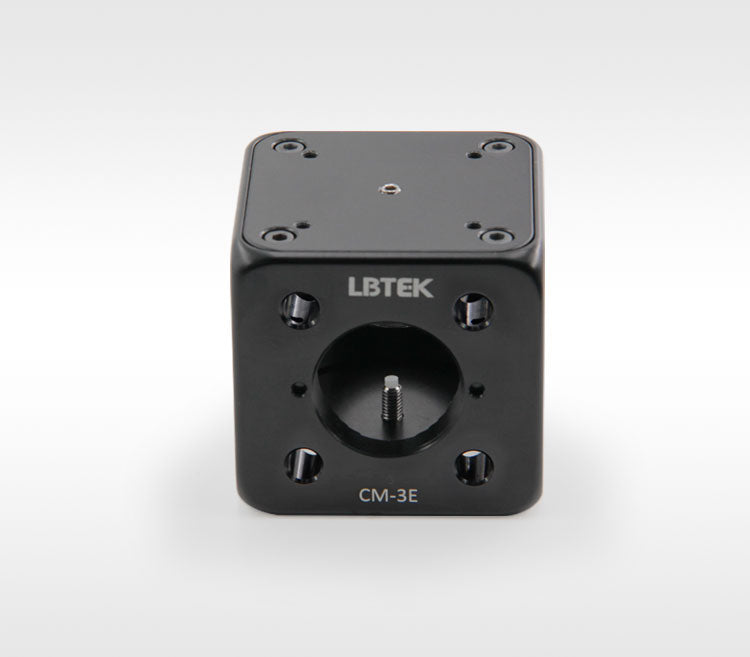

30 mm coaxial cube — Model CM-3E-K3
✔ In Stock — Ships Today
The LBTEK coaxial cube includes four models: CM-3E-K1, CM-3E-K2, CM-3E-K3, and CM-3E. Each features Ø6 mm through-holes on the front and rear surfaces, SM1 threaded through-holes and M3 threaded holes on the sides, and compatibility with 30mm coaxial systems.
1. CM-3E-K1: Ø6 mm through-holes on the front and rear surfaces, SM1 threaded through-holes on the sides, M4 threaded through-holes at the center of the top and bottom covers, and includes one M4 x 12 rubber-tipped screw.
2. CM-3E-K2: Ø6 mm through-holes on the front and rear surfaces, SM1 threaded through-holes on all six sides, and M3 threaded holes on all six sides.
3. CM-3E-K3: Ø6 mm through-holes on the front and rear surfaces, SM1 threaded through-holes / M4 threaded through-holes at the center of the top and bottom covers, with SM1 threaded through-holes on a total of five sides.
4. CM-3E: Ø6 mm through-holes on the front and rear surfaces, no cover plates, and SM1 threaded through-holes on the sides.
Key Features
- Cube with Ø6 mm through holes on front/rear surfaces, SM1 threaded through holes on sides, and M3 threaded holes
- Compatible with 30 mm coaxial systems
Application
The upper and lower cover plates can be matched with these three types: center SM1 threaded through-hole type, M4 threaded through-hole type, and no cover plate.
| Material | 6061-T6 Aluminum Alloy |
| Size | 55 mm×55 mm×52 mm |
| Clear Aperture | Ø25.4 mm |
| Side thread specification | Side SM1 and front/rear surface Ø6 mm through holes |
| Upper/Lower Cover Plate Thread Specification | SM1 and M3 / M4 and M3 |
| Surface Treatment | Black anodized |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial cube (10 variants)
