30 mm coaxial cube — Model CM-3T-K2
✔ In Stock — Ships Today

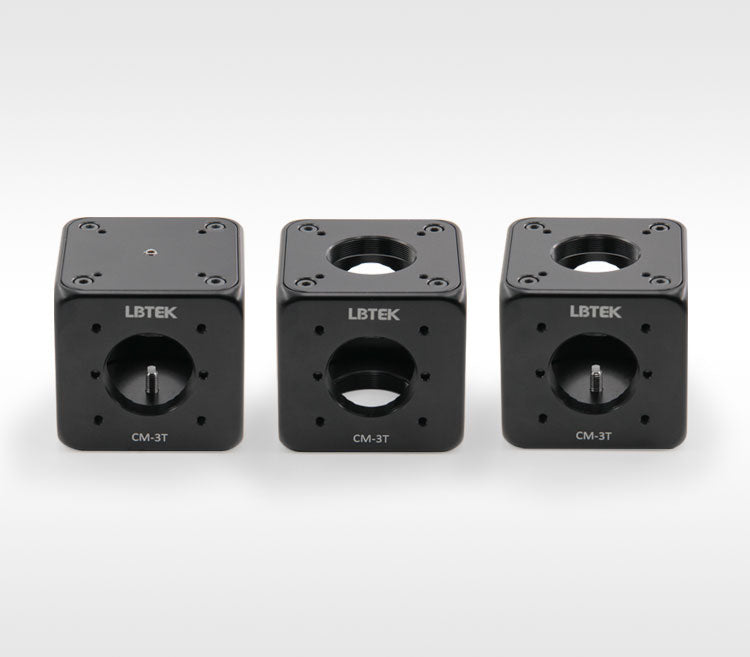

The LBTEK coaxial cube and kits include four models: CM-3T, CM-3T-K1, CM-3T-K2, and CM-3T-K3. All feature SM1 threaded through-holes on the sides and M3 threaded holes, where the M3 threaded holes can be used to connect Ø6 mm coaxial rods.
1. CM-3T-K1: SM1 threaded through-holes on the sides, M4 threaded through-holes at the center of the top and bottom covers, with each cover including one M4 x 12 rubber-tipped screw; compatible with 30 mm coaxial systems.
2. CM-3T-K2: SM1 threaded through-holes on all six faces; compatible with 30 mm coaxial systems.
3. CM-3T-K3: SM1 threaded through-hole at the center of the top cover, M4 threaded through-hole on the bottom cover, with SM1 threaded through-holes on a total of five faces; compatible with 30 mm coaxial systems.
4. CM-3T: No covers, with SM1 threaded through-holes on the sides. Compatible with 30 mm coaxial systems.
Key Features
- Cube side with SM1 threaded through hole and M3 threaded hole, bottom with M4 threaded hole
- Compatible with 30 mm coaxial system
Application
The upper and lower cover plates can be matched with three types: center SM1 threaded through-hole type, M4 threaded through-hole type, and no cover plate.
| Clear Aperture | 25.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial cube (10 variants)
