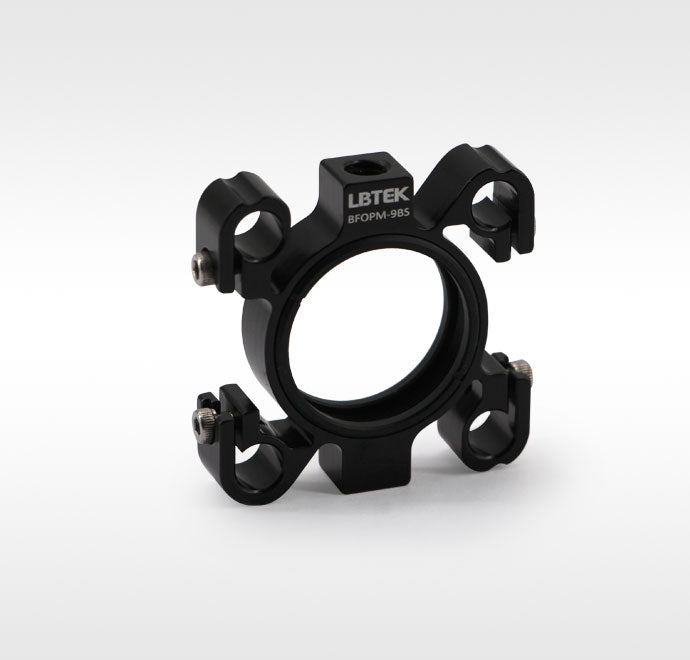

30 mm Flexible Coaxial Mounting Plate — Model BFOPM-9BS
✔ In Stock — Ships Today
The 30 mm bidirectional flexible coaxial plate provided by LBTEK is suitable for mounting Ø25.4 mm optical components, with a maximum mounting thickness of 5 mm featuring an SM1 threaded through-hole, and includes 2 SM1R retaining rings. The bottom and top are equipped with an M4 and M6 threaded hole respectively for connecting mounting rods, while the side features an M2.5 hex socket head cap screw that can be tightened using a 2 mm hex wrench.
Key Features
- Material: 6061-T6 aluminum alloy
- Central through hole with SM1 threads, includes 2 SM1R retaining rings
- Maximum mounting thickness for optical components: 5 mm
Application
BFOPM-9BS fixed on the coaxial rod
| Clear Aperture | 23.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Flexible Coaxial Mounting Plate (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Flexible Coaxial Mounting Plate FOPM-9B |
FOPM-9B
| — | — | — | View |
| 30 mm Flexible Coaxial Mounting Plate FOPM-9BS |
FOPM-9BS
| — | — | — | View |
| 30 mm Flexible Coaxial Mounting Plate BFOPM-9BS Current |
BFOPM-9BS
| — | — | — |
