30 mm Flexible Coaxial Mounting Plate — Model FOPM-9BS
✔ In Stock — Ships Today

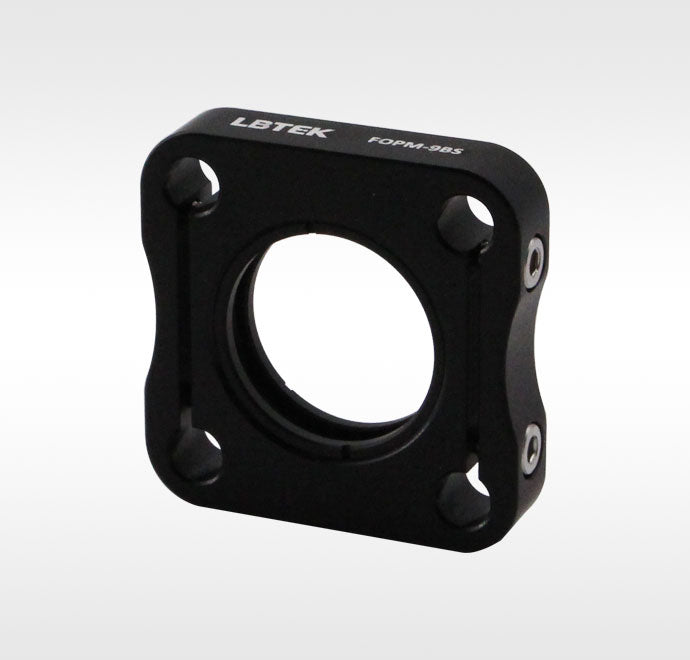

The 30 mm flexible coaxial mounting plate provided by LBTEK is suitable for mounting Ø25.4 mm optical components, with a thickness of 9 mm and an SM1 threaded through-hole. It comes with 2 SM1R retaining rings. The flexible clamping method increases the contact area with the mounting rod. The bottom features an M4 threaded hole for connecting to the mounting rod, and 4 coaxial rod through-holes compatible with the 30 mm coaxial system. The side is equipped with an M3 hex socket head cap screw, which can be tightened using a 2.5 mm hex wrench.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Includes two SM1R Retaining Rings
- SM1-Threaded Through Hole at center for Mounting Optics up to 5 mm Thick
- Thickness: 9 mm
Application
FOPM-9BS is installed in a coaxial system
| Clear Aperture | 23.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Flexible Coaxial Mounting Plate (3 variants)
