6-Axis Optical Mounts — Model AMM6-1A-A
✔ In Stock — Ships Today

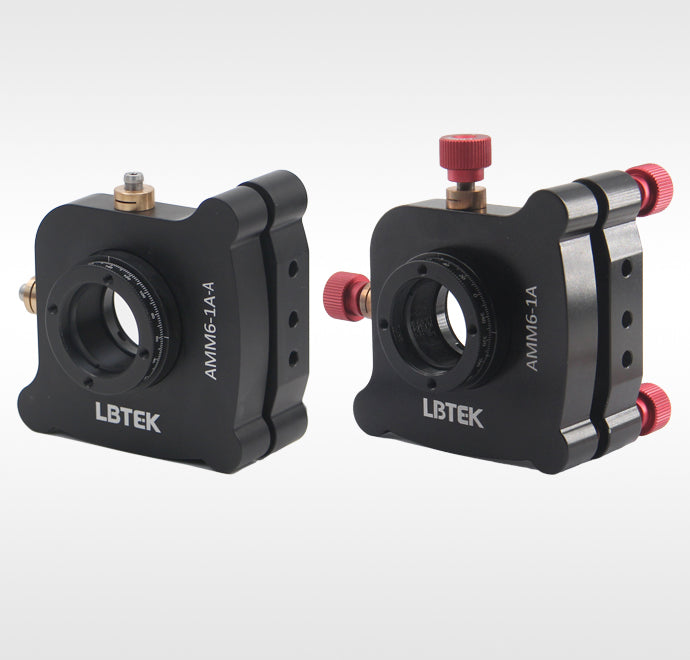

The 6-Axis Optical Mount provided by LBTEK features an SM1 internal threaded hole and an SM1R retaining ring, capable of accommodating optical components up to 15.8 mm thick with a diameter of Ø25.4 mm. It enables adjustment in six axes (XYZ translation, pitch, yaw, and 360° rotation), all of which can be locked. The difference between AMM6-1A and AMM6-1A-A is that the AMM6-1A-A threaded components do not include nuts. Both models come with three M6X025 and two M5X025 precision adjustment threaded components, featuring threaded bushings with locking mechanisms. The 360° rotation can be locked using a 2.0 mm or 1.5 mm hex key. Purchasing the LBTEK 6-Axis Optical Mount includes one 2.0 mm hex key, one 1.5 mm hex key, and two M4 socket head cap screws.
Key Features
- Six lockable adjustment axes
- Adjustable in X, Y, Z axes with pitch/yaw adjustment and 360° rotation
- Six M4 countersunk holes for mounting posts
- With a thicker back plate for enhanced stability
- For Ø25.4 mm optical components up to 15.8 mm thickness, secured with SM1 retaining ring
Application
The 6-Axis Optical Mount is often used with the AMM6P to mount prisms.
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 15.8 mm |
| Applicable optical element diameter | Ø25.4 mm |
| Optical component mounting method | Single retaining ring fixation |
| Countersunk Hole Specification/Quantity | M4 countersunk hole/6 pcs |
| Main material | 6061-T6 aluminum alloy |
| Locking Mechanism | Axial locking |
| Optical axis center height | 39.0 mm |
| included retaining ring | SM1R/1 piece |
| Rotary Indexing | 2° |
| Pitch/Yaw Angle Accuracy | 0.23°/revolution |
| X-axis and Y-axis translation range | ±2 mm |
| Adjustment Pitch | 0.25 mm/rev |
| Travel Range | ±3.25 mm |
| Adjustment Pitch | 0.25 mm/rev |
| Hex Key Wrench | 2.0 mm and 1.5 mm, one each |
| Rotation angle | 360° |
| Adjustable pitch/yaw angle range | ±4 ° |
| Lockable | No |
