6-Axis Optical Mounts — Model AMM6P
✔ In Stock — Ships Today

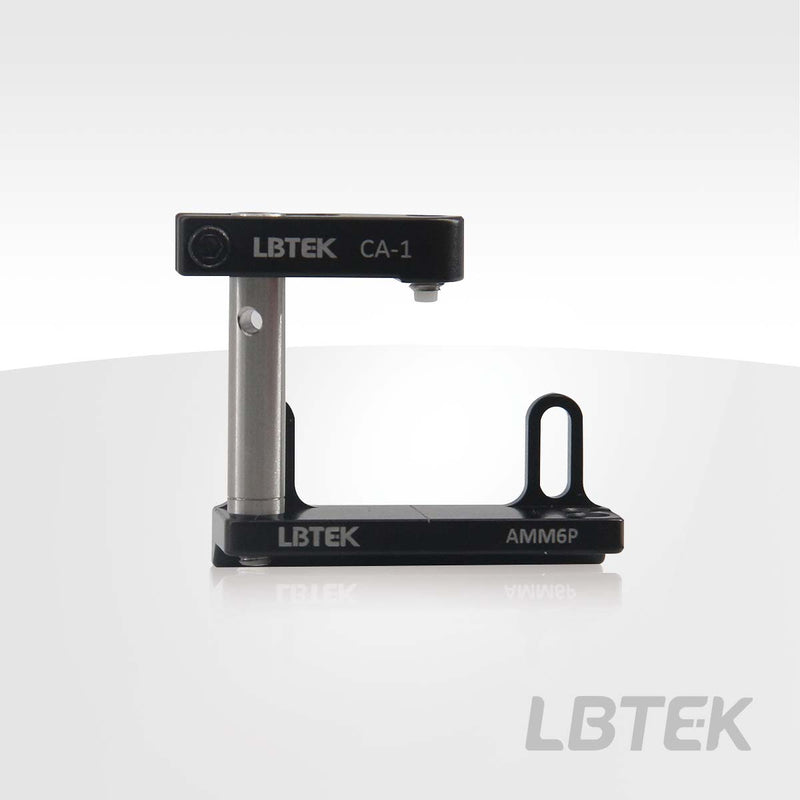

The LBTEK Prism Mounting Platform provided by LBTEK has dimensions of 42.0 mm × 12.7 mm and can be mounted onto the rotating ring of an AMM6-1A 6-Axis Optical Mount. The mounting platform is mounted using two included M3 socket head cap screws (a 2.0 mm hex key is included). The two M3 connecting screws on the platform feature elliptical holes with an adjustable length of 6 mm, allowing optical components to be precisely positioned on the rotation axis. The mounting platform is equipped with four M4 threaded holes and comes with a CA-1 height-adjustable clamping arm, which can be mounted and adjusted using the included 2.0 mm hex key.
Key Features
- Can be mounted on the AMM6-1A rotating ring
- Dimensions: 42.0 mm × 12.7 mm
- Maximum adjustment range of elliptical hole: 6 mm
Application
Prism Mounting Platform mounted on AMM6-1A 6-axis optical mount for use
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Installation platform dimensions | 42.0 mm×12.7 mm |
| Attribute 1000 | 6.0 mm |
| Mounting Hole Pattern | M4 threaded hole/4 pcs |
| Attribute 1001 | CA-1 |
| Attribute 1002 | 2 M3×6 socket head cap screws |
| Hex Key Wrench | 2.0 mm/1 pc |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 6-Axis Optical Mounts (3 variants)
