WaveQuanta

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-07-B

MNDFA10-07-B
$97.80
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 25.4mm
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed — Model MNDFA10-07-B

Operating wavelength 700 nm-1100 nm, ØØ25.4 mm.

Product Description

  • Absorption-type Neutral Density Attenuator
  • Anti-reflection Coating: 700 nm-1100 nm
  • OD: 0.1-6.0
  • Low Power Applications

LBTEK absorptive neutral density filters utilize a high-performance neutral density glass substrate, with an anti-reflection coating applied to one side of the substrate (specifications: Ravg < 0.5% @ 700-1100 nm). These absorptive neutral density filters not only exhibit stable absorption characteristics within the 700-1100 nm wavelength band but also effectively reduce internal light reflection within the product, making them suitable for various low-power laser energy attenuation applications. The product is currently available in 17 optical density specifications (OD 0.1-6.0) and 3 size options (Ø12.7 mm, Ø25.4 mm, Ø50 mm), which can fully meet diverse experimental requirements. Among them, the circular absorptive neutral density filters are also offered in a mounted version (MNDFA series), where the products are pre-installed in standard lens barrels of corresponding sizes (supporting disassembly). Furthermore, LBTEK can provide custom services for filters with specific sizes and optical density values. For customization inquiries, please feel free to contact technical support.

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed

  • Low Power Applications
  • Anti-Reflection Coating: 700 nm-1100 nm
  • Pre-installed mechanical housing, removable

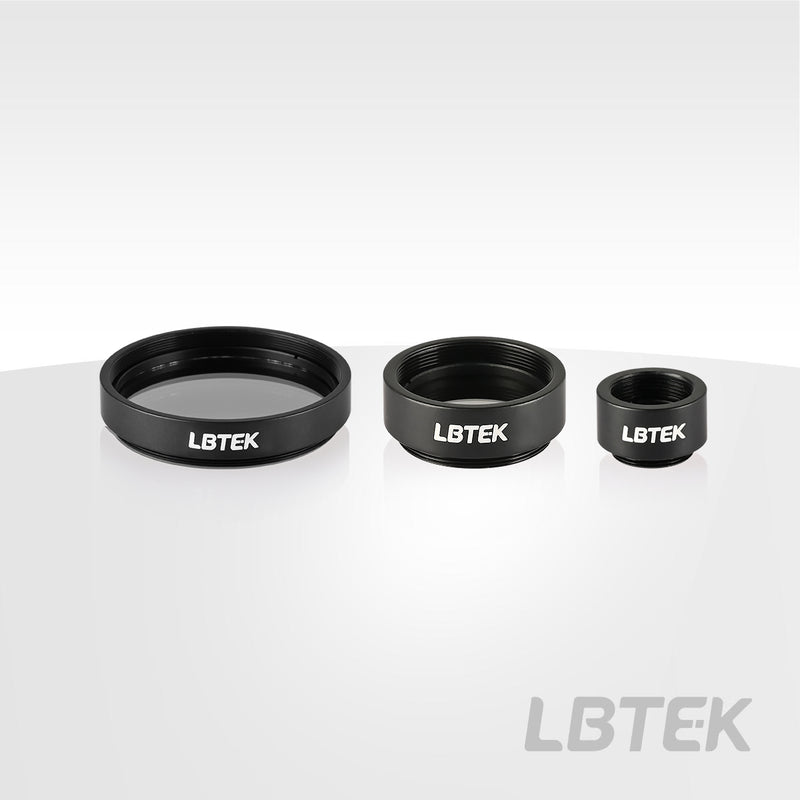

LBTEK absorptive neutral density attenuators utilize neutral density glass coated with anti-reflection coatings (Ravg<0.5%@700-1100 nm), which not only provide stable absorption characteristics but also effectively reduce internal reflections of light within the product in the 700-1100 nm range. By precisely controlling the thickness and material type of the neutral density glass, high-precision OD attenuation can be achieved (OD tolerance ≤5%@850 nm). The MNDFA series are pre-installed in standard lens tubes (removable) and offer various optical densities and size specifications. The tube surface is engraved with product model, operating wavelength, OD value, and other parameters for easy user identification. The corresponding tube models for 0.5-inch, 1-inch, and 2-inch neutral density attenuators are: SM05-8A, SM1-8A, and SM2-8A. Note: The thickness of absorptive neutral density filters is for reference only; the actual thickness depends on the optical density of the glass batch used.

Clear Aperture>90%
Operating Wavelength700 nm-1100 nm
DiameterØ25.4 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

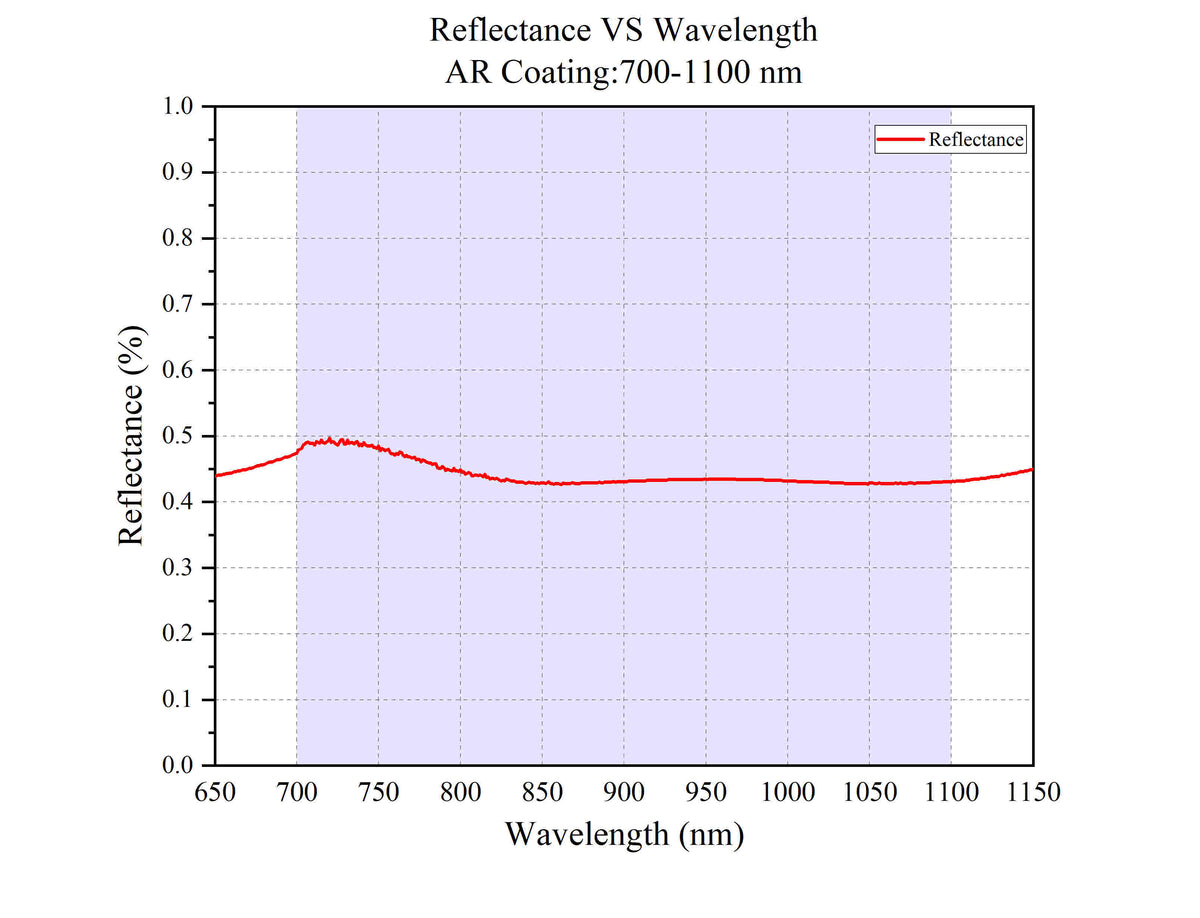

Curve - Reflectance VS Wavelength @700-1100 nm
Curve - Reflectance VS Wavelength @700-1100 nm

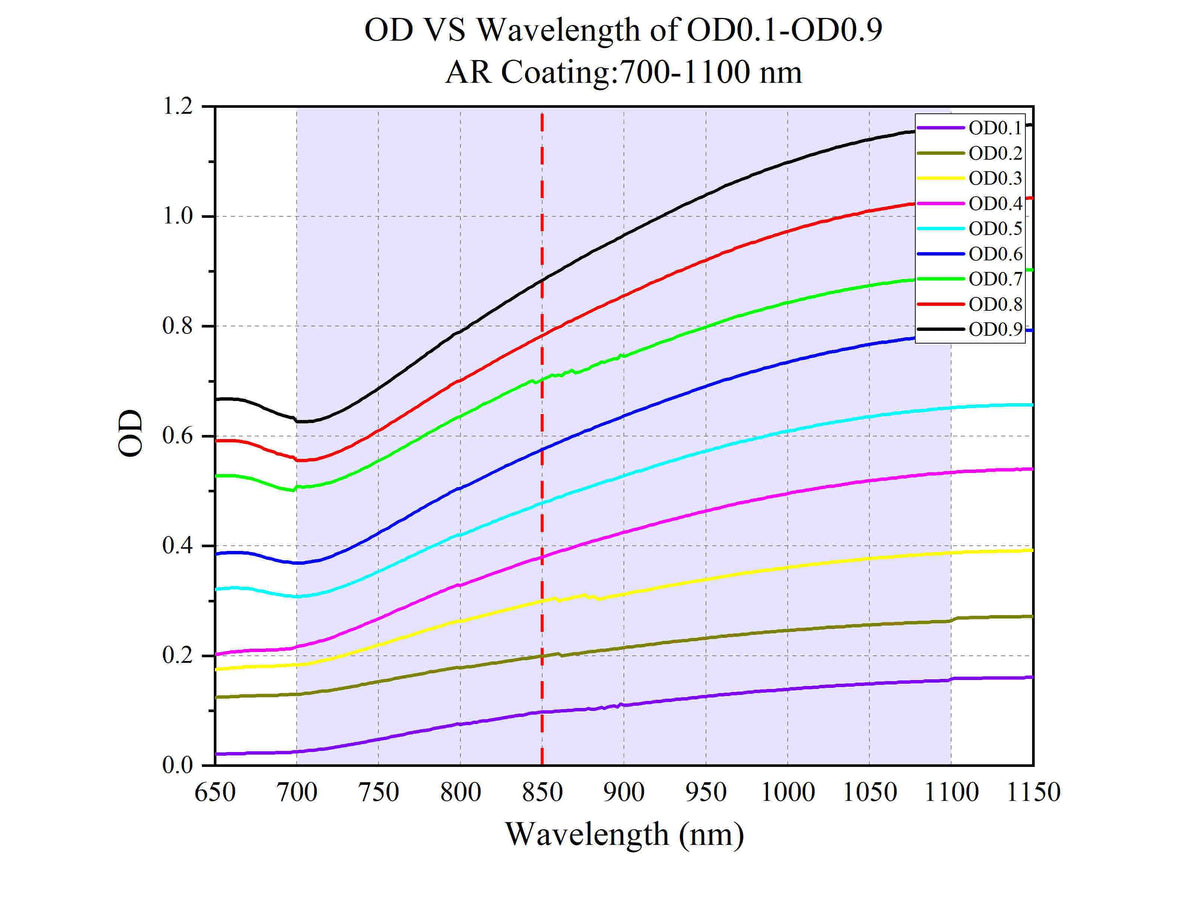

Curve - OD VS Wavelength of OD0.1-OD0.9 @700-1100 nm
Curve - OD VS Wavelength of OD0.1-OD0.9 @700-1100 nm

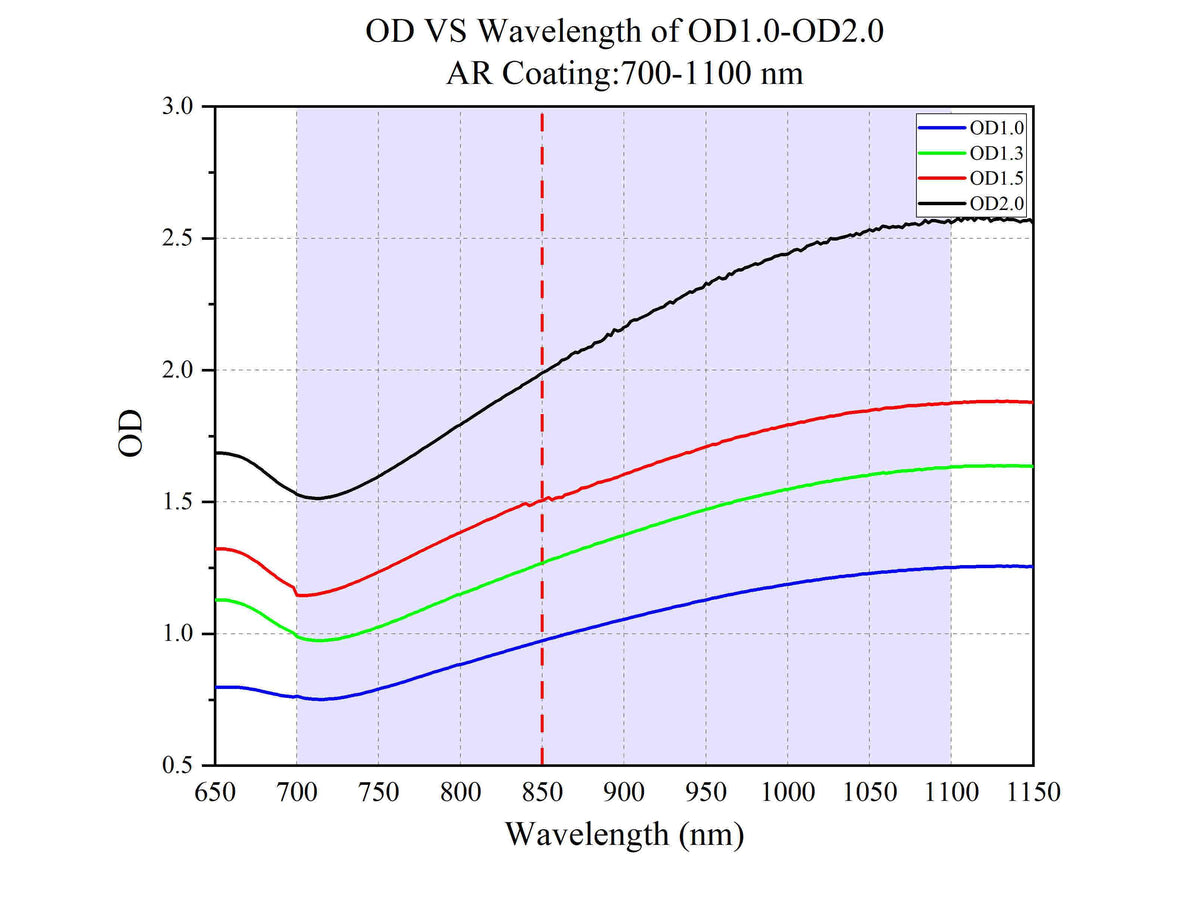

Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm
Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm

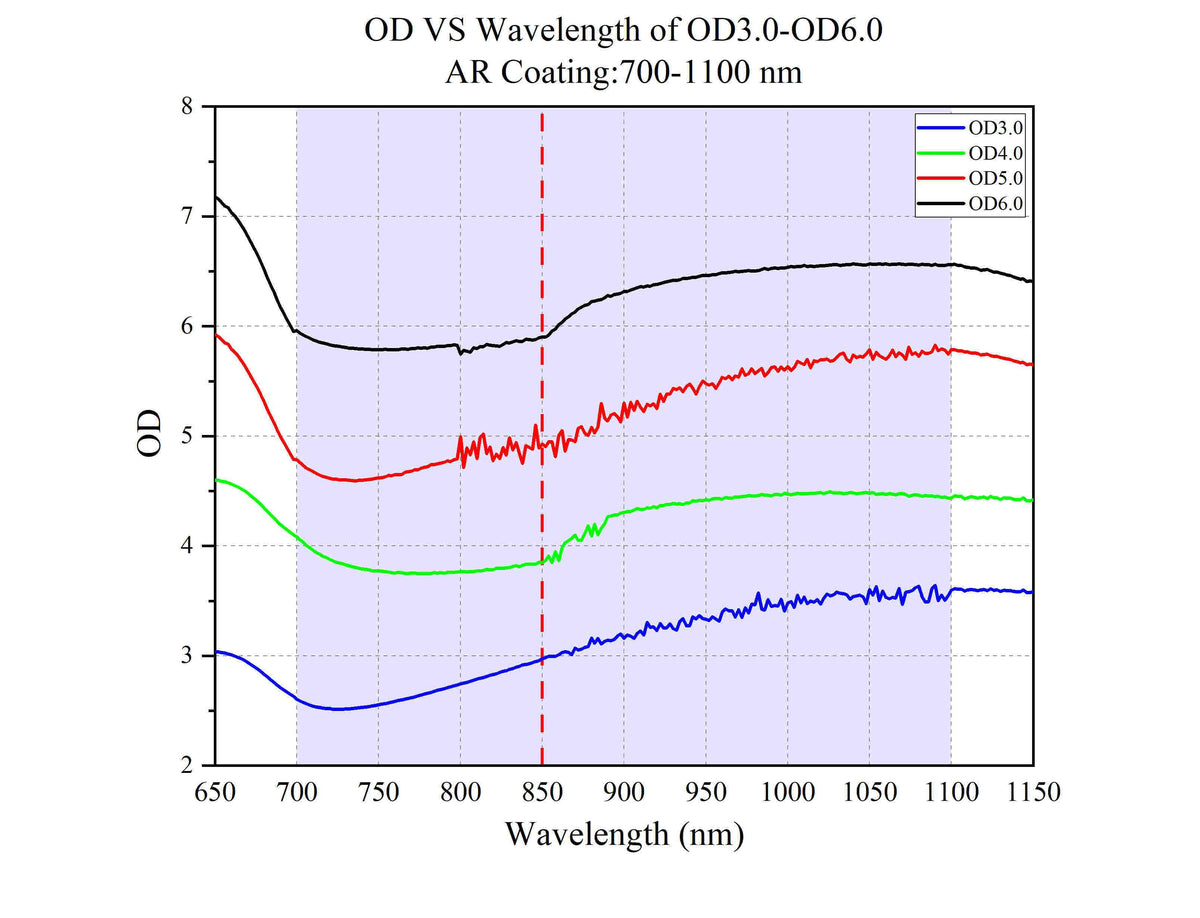

Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm
Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm
Curve - Reflectance VS Wavelength @700-1100 nm
Curve - Reflectance VS Wavelength @700-1100 nm
Curve - OD VS Wavelength of OD0.1-OD0.9 @700-1100 nm
Curve - OD VS Wavelength of OD0.1-OD0.9 @700-1100 nm
Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm
Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm
Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm
Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm
