Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-03-B

NDFA20-03-B
$174.60
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 50.0mm
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted — Model NDFA20-03-B

Operating wavelength 700 nm-1100 nm, ØØ50 mm.

Product Description

  • Absorption-type Neutral Density Attenuator
  • Anti-reflection Coating: 700 nm-1100 nm
  • OD: 0.1-6.0
  • Low Power Applications

LBTEK absorptive neutral density filters utilize a high-performance neutral density glass substrate, with an anti-reflection coating applied to one side of the substrate (specifications: Ravg < 0.5% @ 700-1100 nm). These absorptive neutral density filters not only exhibit stable absorption characteristics within the 700-1100 nm wavelength band but also effectively reduce internal light reflection within the product, making them suitable for various low-power laser energy attenuation applications. The product is currently available in 17 optical density specifications (OD 0.1-6.0) and 3 size options (Ø12.7 mm, Ø25.4 mm, Ø50 mm), which can fully meet diverse experimental requirements. Among them, the circular absorptive neutral density filters are also offered in a mounted version (MNDFA series), where the products are pre-installed in standard lens barrels of corresponding sizes (supporting disassembly). Furthermore, LBTEK can provide custom services for filters with specific sizes and optical density values. For customization inquiries, please feel free to contact technical support.

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted

  • Low Power Applications
  • Absorptive Neutral Density Filters
  • Anti-Reflection Coating 700 nm-1100 nm

LBTEK absorptive neutral density filters installed in fixed lens mounts

Clear Aperture>90%
Operating Wavelength700 nm-1100 nm
DiameterØ50 mm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

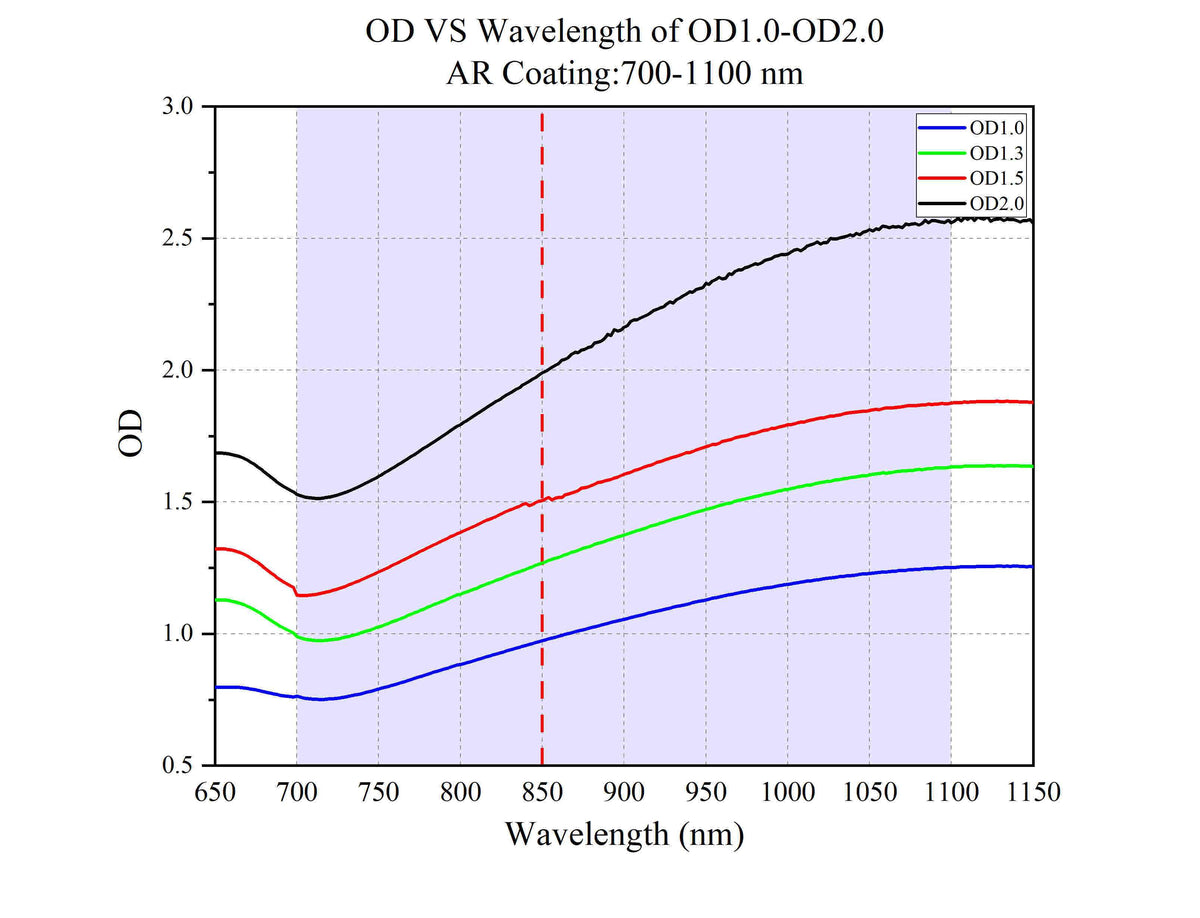

Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm
Curve - OD VS Wavelength of OD1.0-OD2.0 @700-1100 nm

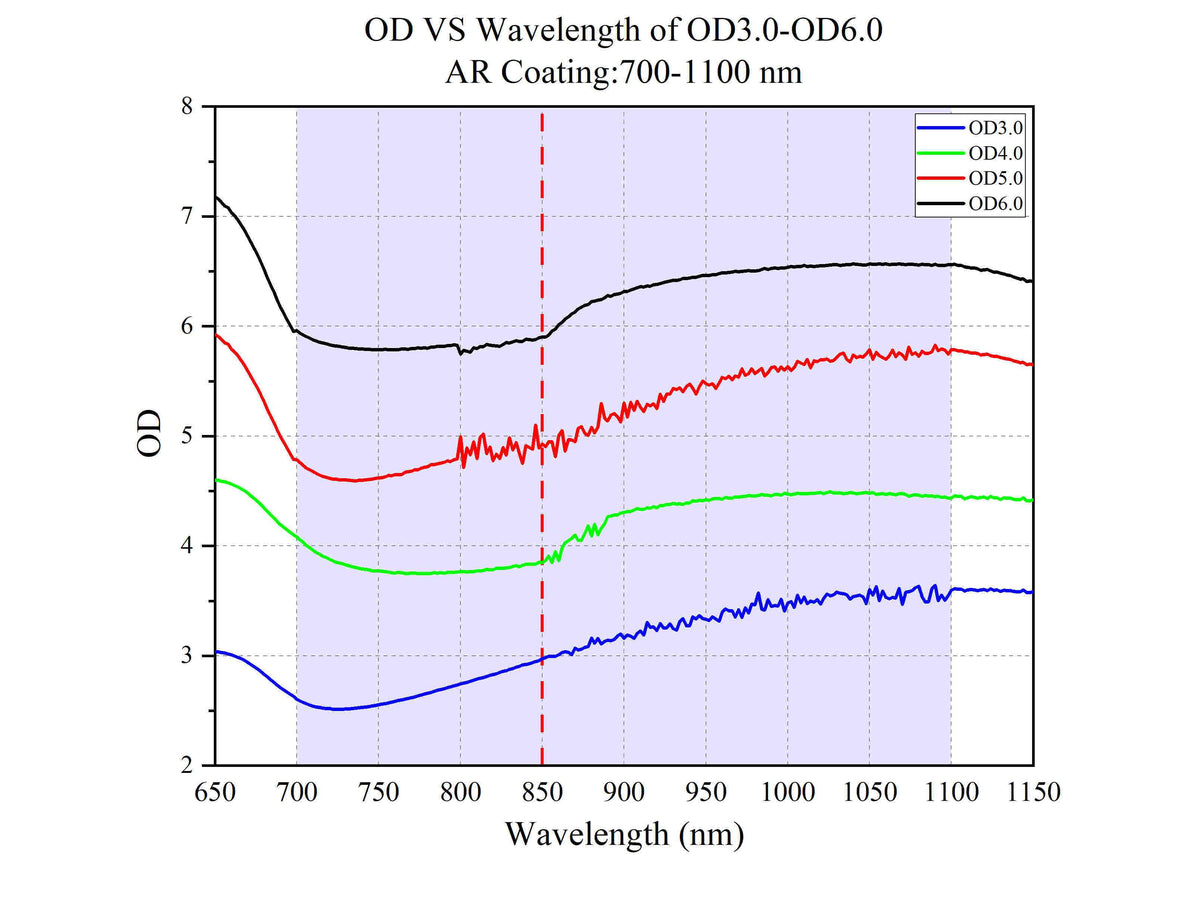

Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm
Curve - OD VS Wavelength of OD3.0-OD6.0 @700-1100 nm

Product Family: Absorptive Neutral Density (ND) Filters, AR Coating: 700-1100nm (50 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-40-B NDFA20-40-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-40-B NDFA05-40-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-30-B NDFA20-30-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-30-B NDFA05-30-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-20-B NDFA20-20-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-20-B NDFA05-20-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-10-B NDFA20-10-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-10-B NDFA05-10-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-05-B NDFA20-05-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-05-B NDFA05-05-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA20-03-B Current NDFA20-03-B Ø50 mm >90% 700 nm-1100 nm
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA05-03-B NDFA05-03-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-20-B NDFA10-20-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-30-B NDFA10-30-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-40-B NDFA10-40-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-01-B NDFA10-01-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-02-B NDFA10-02-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-03-B NDFA10-03-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-04-B NDFA10-04-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-05-B NDFA10-05-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-06-B NDFA10-06-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-07-B NDFA10-07-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-08-B NDFA10-08-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-09-B NDFA10-09-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-10-B NDFA10-10-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-13-B NDFA10-13-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-15-B NDFA10-15-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-50-B NDFA10-50-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted NDFA10-60-B NDFA10-60-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-40-B MNDFA20-40-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-30-B MNDFA20-30-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-40-B MNDFA05-40-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-20-B MNDFA20-20-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-30-B MNDFA05-30-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-10-B MNDFA20-10-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-20-B MNDFA05-20-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-05-B MNDFA20-05-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-10-B MNDFA05-10-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA20-03-B MNDFA20-03-B Ø50 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-05-B MNDFA05-05-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA05-03-B MNDFA05-03-B Ø12.7 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-01-B MNDFA10-01-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-02-B MNDFA10-02-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-03-B MNDFA10-03-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-04-B MNDFA10-04-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-05-B MNDFA10-05-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-06-B MNDFA10-06-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-07-B MNDFA10-07-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-08-B MNDFA10-08-B Ø25.4 mm >90% 700 nm-1100 nm View
Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed MNDFA10-09-B MNDFA10-09-B Ø25.4 mm >90% 700 nm-1100 nm View
