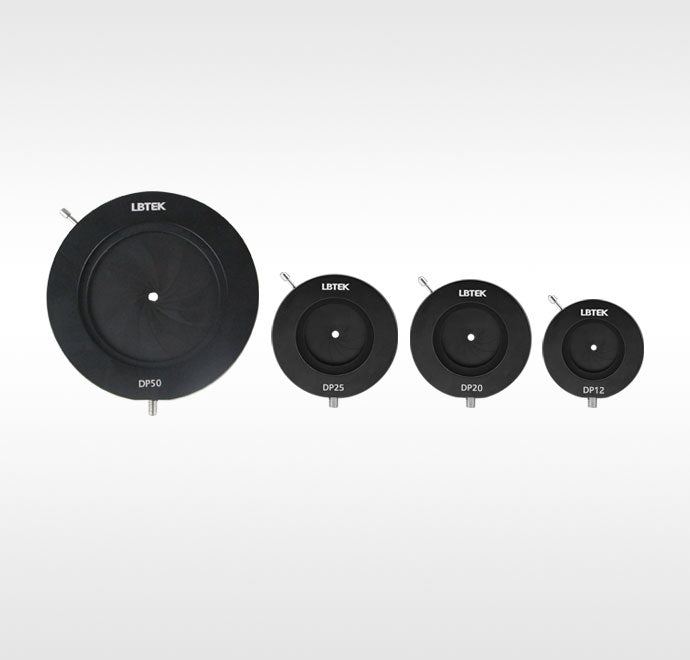

Adjustable diaphragm, compatible with standard mounting posts DP25-P5
✔ In Stock — Ships Today
The adjustable aperture provided by LBTEK can be mounted on a connecting rod. The aperture sold without a connecting rod has a non-removable M4 stud at the bottom. The continuously variable aperture design with lever control enables smooth back-and-forth operation. Additionally, LBTEK offers a variety of aperture sizes to choose from.
Key Features
- Aperture continuously adjustable
- Black anodized aluminum housing
- Black steel spring blades
- Single aperture with housing, mountable on rods
Application
The aperture is installed in free space.
| Thickness | 7 mm |
| Housing Material | 6061-T6 aluminum alloy |
| Continuous adjustment range | Ø1 mm~Ø25 mm |
| incluided post | No |
| Tube Length | 24.5 mm |
| Disc Diameter | Ø50 mm |
| Surface Count | 5 |
