Adjustable diaphragm, compatible with standard mounting posts DPP12-P5
DPP12-P5$363.62
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Adjustable diaphragm, compatible with standard mounting posts DPP12-P5 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

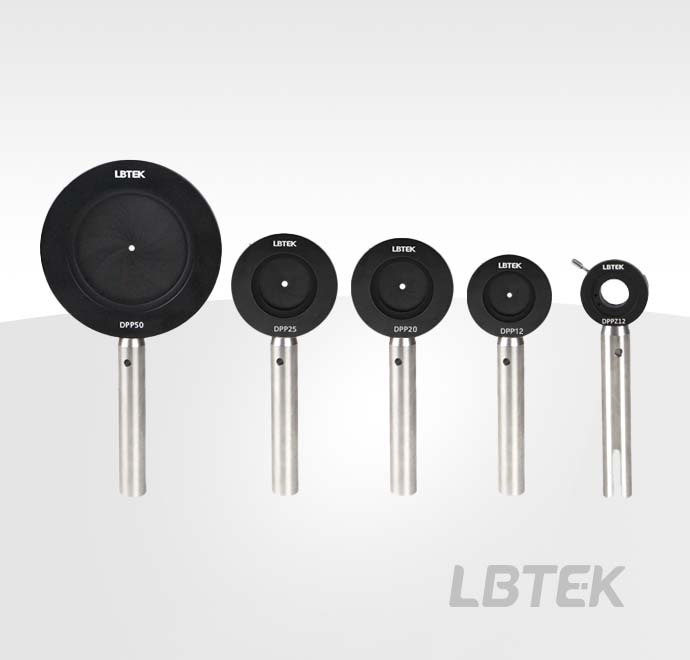

The adjustable aperture provided by LBTEK can be mounted on a post, and all apertures sold with posts are installed on a 75 mm long OP-75 post, from which the aperture can be detached. The continuously variable aperture, controlled by a lever, is designed to allow smooth operation back and forth. Additionally, LBTEK offers a variety of aperture sizes to choose from.
Key Features
- Aperture continuously adjustable
- Black anodized aluminum housing
- Black steel spring leaves
- Single aperture with housing, mounted on OP-75 post
Application
The aperture is installed in free space.
| Thickness | 6 mm |
| Housing Material | 6061-T6 aluminum alloy |
| Continuous adjustment range | Ć1 mm~Ć12 mm |
| incluided post | Yes |
| Tube Length | 13 mm |
| Disc Diameter | Ć27 mm |
| Tube Dimensions | Ć12.7 mmĆ75 mm |
| Surface Count | 5 |
No CAD drawings available for this product.
