Adjustable Fiberl Attenuator LBDA-SCU-50
LBDA-SCU-50$9,009.89
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

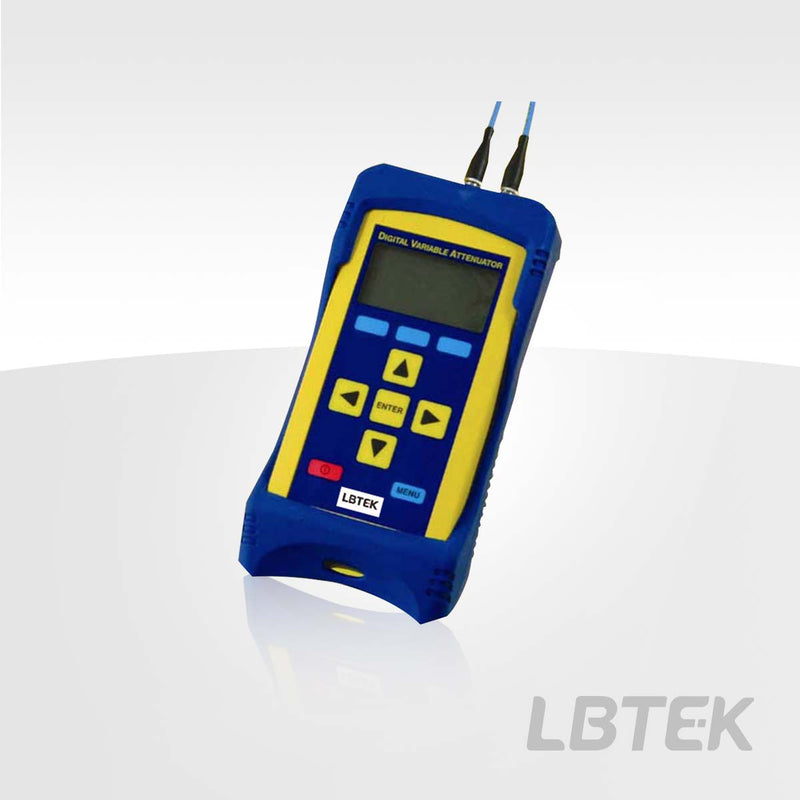

LBTEK's digital variable optical attenuators employ a blocking mechanism (for single-mode/polarization-maintaining single-mode fibers) or a variable neutral density filter mechanism (for multimode fibers), with attenuation levels adjusted via a microcontroller that precisely controls the speed and accuracy of the internal stepper motor. The LBTEK digital variable attenuator is a handheld device equipped with an LCD display and a user-friendly interface, allowing direct input of wavelength and attenuation levels via a keypad, as well as computer-based attenuation control through the built-in USB interface. The LBTEK digital variable optical attenuator comes with a USB cable and power adapter, but does not include optical fibers. It is recommended to use the digital variable attenuator at calibrated wavelengths, with an operational wavelength range of 350-2050 nm. For more details, please consult LBTEK technical support.
- Single-Mode/Polarization-Maintaining Single-Mode Fiber Attenuation Range IL-60 dB
- Low Insertion Loss, High Return Loss
- Digital Control, Equipped with LCD Display
| Calibration wavelength | 1300/1550 nm |
| Attenuation range | IL-60 dB |
| Return Loss | 50 dB |
| Connector Type | SC/UPC |
| Operating Temperature | -10-55 °C |
| Size | 150×81×46 mm |
| Fiber Type | Single-mode fiber |
| Fiber core diameter | 9 μm |
| Cladding diameter | 125 μm |
| Maximum Optical Power | 2 W |
| weight | 450 g |
| Power Adapter | 12V DC Adapter to Universal 110/220V AC |
| Operating Temperature | -30-70 °C |
| Attenuation Repeatability | ±0.03 dB (0-10 dB attenuation) ±0.10 dB (0-30 dB attenuation) |
